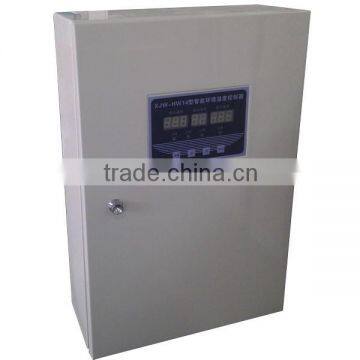

HW14 Environment & Power Remote Monitoring for Telecommunication Shelter
US$ 1 - 500
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Xinjan
Model Number:
HW14
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo / Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HW14 Environment & Power Remote Monitoring for Cell SiteUS$ 1 - 500MOQ: 1 Set -
DS03 XJK-DS2B Temperature & Humidity & Fire & Power Monitoring for CommunicationUS$ 200 - 400MOQ: 1 Set
-
XJK-DS2B Temperature & Humidity & Fire & Power Monitoring for CommunicationUS$ 300 - 500MOQ: 1 Set
-
XJK-DS2B Environment & Security Monitor for Outdoor Communication CabinetUS$ 300 - 500MOQ: 1 Set
-
XJK-DS2B Environment Monitoring System for Outdoor Network CabinetUS$ 300 - 500MOQ: 1 Set
Place of Origin
Zhejiang, China
Brand Name
Xinjan
Model Number
HW14
Specifications
Telecom site environment remote monitoringtelecom site power monitoring
RS485 communication
Product Description
It starts DC fans first to save energy, and controls them based on indoor temperature and humidity, outdoor temperature. Then controller starts air-conditioner if temperature is higher. Control logic is smart, simple and stable.
| Function: | |
| Set | Contains 4 buttons to set |
| Display | 5 pcs of 0.56’’ LEDs and 4 pcs of LED lights |
| Control | Control DC fans and 2 air-conditioner based on temperature and humidity |
| Alarm | Output a alarm signal (dry node) |
| Power detection | AC power and battery voltage, if AC power off or voltage of battery is lower than DC 46V output alarm signal |
| Work state detection | Detect the frequency of fan to judge if DC fan has fault, and use current sensor to detect if air-conditioner has fault |
| Manual test | Start DC fans or air-conditioner by manual |
| Initialize parameter | Initialize running parameter by a combination key |
| Communication | Supply RS485 communication interface, and supply software for free |
| Performance Indices: | |
| Type | XJW-HW14 |
| Installation | Wall-mounted |
| Temperature detect range | -40°C ~ 70°C |
| Humidity detect range | 0% ~ 99% |
| Size | 300x400x150 |
| Sensor: | |||
| Type | Name | Number | Note |
| WD | Temperature sensor | 1 | Accessories, fixed outside |
| WS2 | Hygrothermograph sensor | 1 | Accessories, fixed inside |
| SS-168P | Smog sensor | 1 | Accessories, fixed inside |
| TT | Immersion sensor probe | 1 | Accessories, put it on the floor |
| DD5 | Power off sensor | 1 | Fixed in the box |
| IA5 | Current sensor | 1-2 | Fixed in the box |
| Alarm code | Meaning |
| E01 | High room temperature |
| E03 | Smog fire alarm |
| E04 | AC power off alarm |
| E08 | Temperature sensor has fault |
| E09 | Low voltage of battery |
| E11 | Air-conditioner I has fault |
| E12 | Air-conditioner II has fault |
| E21 | DC fan has fault |
