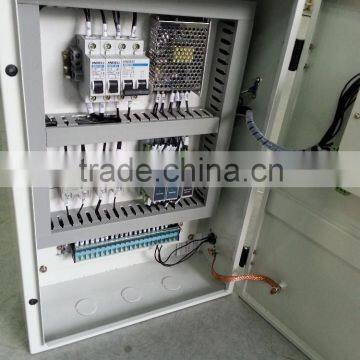

HW14 environment & power remote monitoring for cell site

Name: HW14 environment & power remote monitoring for cell site
Brand: Xinjan
Price: USD $1 - 500 / Set

FOB Price

USD $1 - $500 / Set

1 Set(Min.Order)

Supply Ability 200 Set / Sets per Month
Port Ningbo / Shanghai
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:

Zhejiang, China

Brand Name:

Xinjan

Model Number:

HW14

Product Description

Specifications

Telecom site environment remote monitoring
telecom site power monitoring
RS485 communication

Product Description

It starts DC fans first to save energy, and controls them based on indoor temperature and humidity, outdoor temperature. Then controller starts air-conditioner if temperature is higher. Control logic is smart, simple and stable.

Function:
Set	Contains 4 buttons to set
Display	5 pcs of 0.56’’ LEDs and 4 pcs of LED lights
Control	Control DC fans and 2 air-conditioner based on temperature and humidity
Alarm	Output a alarm signal (dry node)
Power detection	AC power and battery voltage, if AC power off or voltage of battery is lower than DC 46V output alarm signal
Work state detection	Detect the frequency of fan to judge if DC fan has fault, and use current sensor to detect if air-conditioner has fault
Manual test	Start DC fans or air-conditioner by manual
Initialize parameter	Initialize running parameter by a combination key
Communication	Supply RS485 communication interface, and supply software for free

Performance Indices:
Type	XJW-HW14
Installation	Wall-mounted
Temperature detect range	-40°C ~ 70°C
Humidity detect range	0% ~ 99%
Size	300x400x150

Sensor:
Type	Name	Number	Note
WD	Temperature sensor	1	Accessories, fixed outside
WS2	Hygrothermograph sensor	1	Accessories, fixed inside
SS-168P	Smog sensor	1	Accessories, fixed inside
TT	Immersion sensor probe	1	Accessories, put it on the floor
DD5	Power off sensor	1	Fixed in the box
IA5	Current sensor	1-2	Fixed in the box

Alarm code	Meaning
E01	High room temperature
E03	Smog fire alarm
E04	AC power off alarm
E08	Temperature sensor has fault
E09	Low voltage of battery
E11	Air-conditioner I has fault
E12	Air-conditioner II has fault
E21	DC fan has fault
