Help CenterLight Weight Boundary Wall Forming Machine
Related Products
-
Fireproof and Sound Isolation Prestressed Lightweight Wall Panel MachineUS$ 8,500 - 15,000MOQ: 1 Set -
Hydraulic Color Cement Roofing Tile Press Machine for Small Business in South AficaUS$ 30000.00 - 30000.00MOQ: 1 Set
-
Heat Preserving Concrete Roof Tile Press Machine for Construction Material MakingUS$ 30000.00 - 30000.00MOQ: 1 Set
-
Lightweight Concrete Interior Wall Panel Making Machine for Extruding Wall Panel InteriorUS$ 8,900 - 15,500MOQ: 1 Set
-
Henan Victory Light-weight Partition Partition Bathroom Wall Panels Making MachineUS$ 9,500 - 15,000MOQ: 1 Set
Feasture&Advantages:
1.System: Five parts:frame system, circuit control system,power system, vibration system, molding system.
2. Technique:Extrusion technique can make the panels density and surface smooth.
3.Efficiency :Using hydraulic lifting system, easy to revolve.
4. Durable :Adopting anti-rust technology,welding with stainless steel or alloy.
5.Work area: With or without orbital.
6.Panel materials: According to local materials ,providing matching method to make sure of standard panels.
(General materials: fly ash, slag, ceramic, cinders, pumice, vermiculite, etc)
7.Customization:Can design and manufacture all kinds of machines according to customers' requirement.
8.After-service:Providing a complete set of technology and solution for all producing flow.
Technical Parameters:
| Model(mm) | JQT60X600 | JQT80X600 | JQT90X600 | JQT100X600 | JQT1200X600 |
JQT20 0X600 |
|
| Panel width | 595±2 | 595±2 | 595±2 | 595±2 | 595±2 | 595±2 | |
| thickness(mm) | 59±1 | 79±1 | 89±1 | 99±1 | 119±1 | 199±1 | |
| No of hole including diameter (mm) | 12Xφ32 | 8Xφ48 | 7Xφ58 | 6Xφ68 | 5Xφ88 | 3Xφ132 | |
| forming speed(m/min) | 1.3-1.7 | 1.3-1.7 | 1.3-1.7 | 1.3-1.7 | 1.3-1.7 | 1.3-1.7 | |
| Main power(KW) | 4 | 4 | 4 | 4 | 5.5 | 5.5 | |
| vibration power(KW) | 0.8 | 0.8 | 0.8 | 0.8 | 1.1 | 1.5 | |
| machine dimensions(mm) | 2360X1030X724 | 2360X1030X724 | 2360X1030X724 | 2360X1030X724 | 2360X1030X746 | 2360X1030X746 | |
| machine weight(kg) | 1000 | 1000 | 1000 | 1000 | 1200 | 1200 |

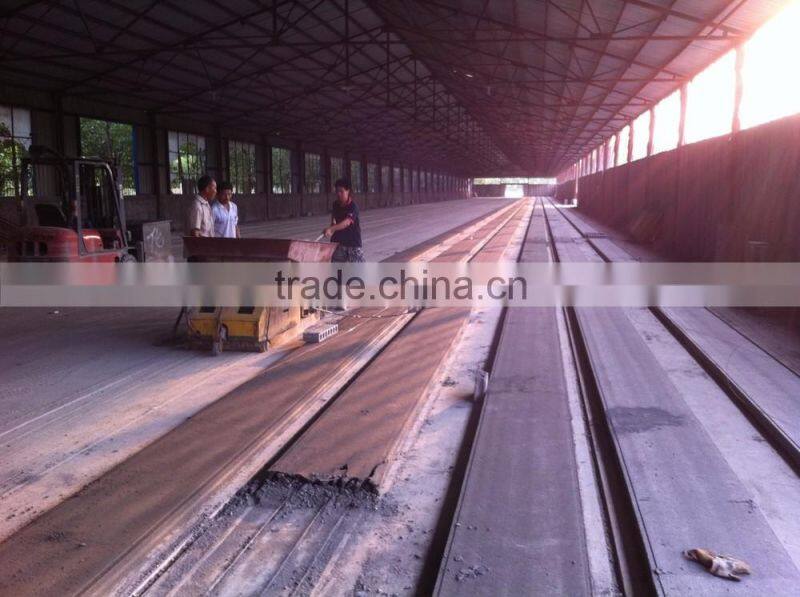

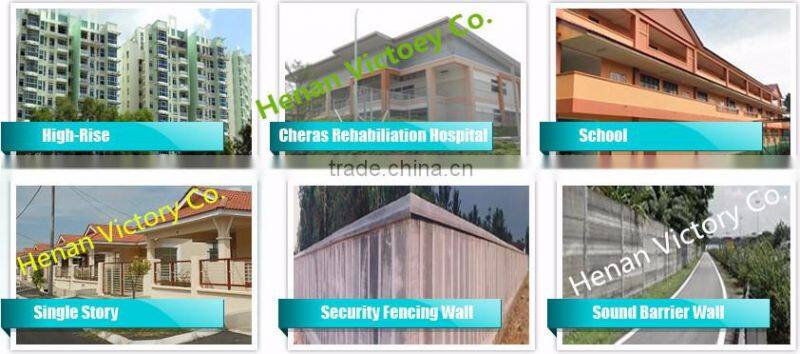

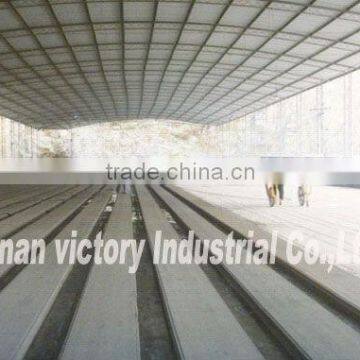

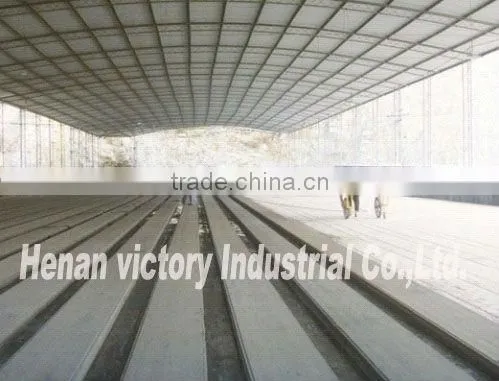

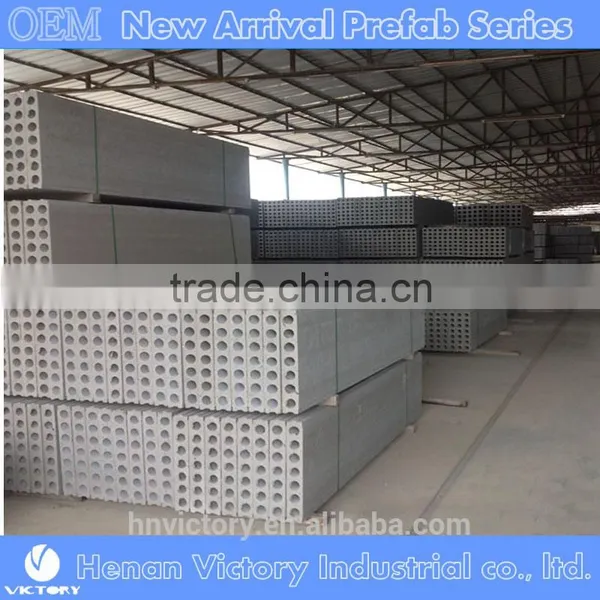

JQT series precast lightweight concrete wall panel machine is the professional equipment for producing non-load bearing lightweight partition wall which offers superior properties for a whole range of uses.On one hand it’s widely used for the interior space partition wall of all kinds of building,such as hospital,hotel ,office building,apartment and so on.On the other hand it can be used as fence or boundary outdoor too.What's more,it can also be used as infilled wall in frame structure,shear wall sturcture,steel structure.
Q1. What is the Standard Size of Wall panel machine
A1. JQT9*60 and JQT10*60 is more Standard all over the world(90mm thickness, 600mm width etc.)
Q2. How Much Sqm will be installed 1 day?
A2. Very quickly by Our Wall panel Installer (300sqm/day)
Q3. Can we use wall panel as Exterior and interior Wall?
A3. Yes, Can be used for both. (Exterior can be Double Layer Holes. Interior can use 9*60 or 7.5*60)
Q4. How To Order From "Henan Victory Industrial co. ltd."?
A4. Confirm PI (Profroma Invoice) with our sales Man and Payment: 30% deposit, the Balance 70% paid against Bill Of Lading Copy.
Warranty:
1.100% brand new when loading from the factory.
2.Guarantee quality of the machines for a period of 1 year from the date of trial run finish.
3.If any parts (excluding wearing parts) are found defective in quality in the first year,we 4.replace free-of-cost.Parts can be replaced on favorable payment basic after one year.

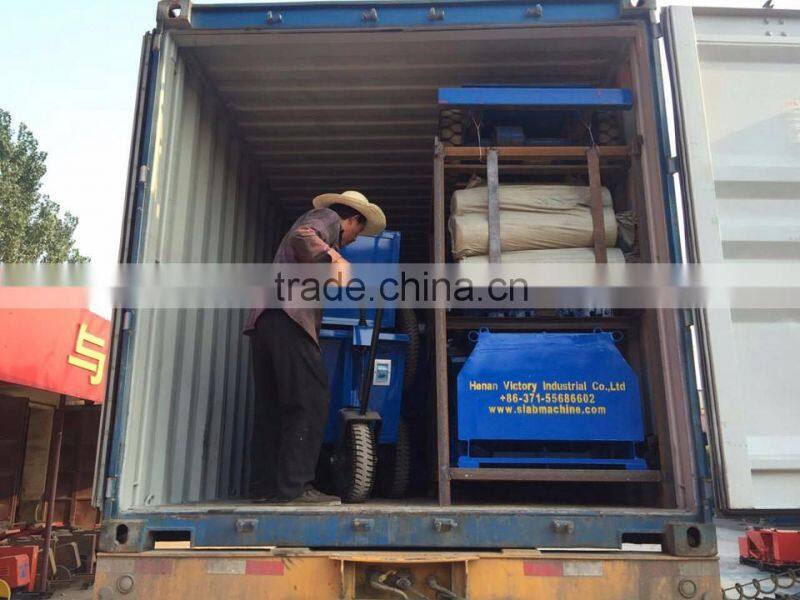

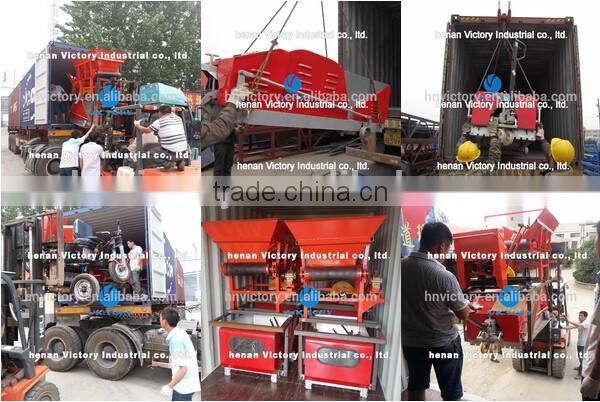

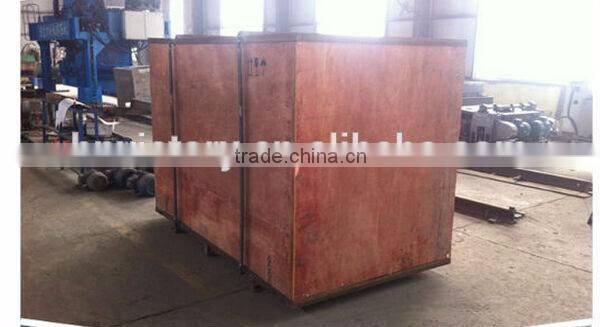

Delivery Time:
within 15-20 days after receiving prepaid. Some machines in stock, can be delivered at any time.
Payment Terms:
30% deposit is paid by T/T before production, the balance paid after inspection confirmation before loading.
Install and Training:
If buyers come to our factory to inspect, the training to install and operate is provided face to face.
If not, manual and video is provided to show how to install and operate.
After-sale Service:
a.One year guarantee for whole machine.
b.24 hours technical support by email or calling.
c.If any problem is found about the machine, we will repair it for free in one year.
Contact Us:
Our company is located in Zhengzhou city, Province of Henan ,China. The Shaolin Temple is only 40 kilometers away from us.
By air :Zhengzhou Xinzheng International Airport (IATA Code CGO)
By Train : Zhengzhou Station; 2.5 Hours from Beijing to zhenghzou ; 4 hours from Shanghai to Zhengzhou; 7 Hours from Guangzhou to Zhengzhou
Henan Victory Industrial Co.,Ltd
Contact person:Michael Zhang (Please feel free to contact me any time,i will reply within 24h!)
Tel:0086-371-55686602
Cel:0086-15838001381
Fax:0086-371-63986697
QQ:3069406980
We want to know:
1. How many machines do you need?
2. What materials do you need to process?
3. The size and thickness of the panel which you want.
Your inquiry refers to the local standard of the width and thickness of panel can help us offer more specific suggestions.
We warmly welcome to visit our professional factory & manufacture machines according to your every demand.
We promise we are sure to try our best to meet your requirements,lower price & better quality
