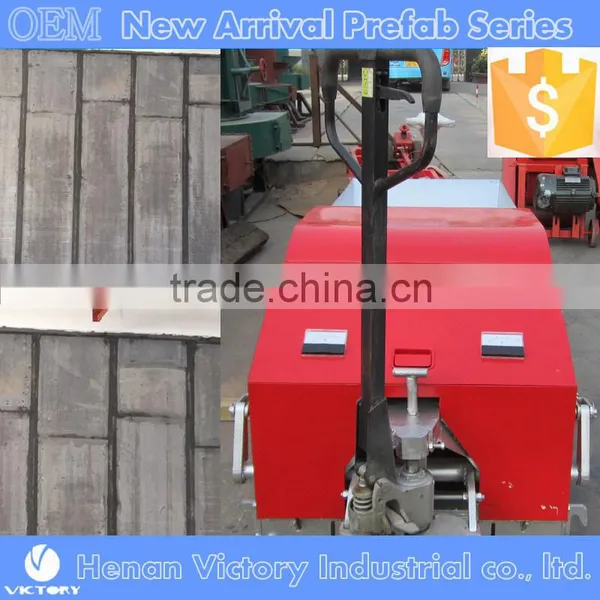

Precast lightweight concrete wall panel extruding machine
1. Main features :
Purpose : The machine is used for the production of concrete lightweight partition wall panel
Principle :The machine adopt extrusion technology, movable forming.
Materials :The raw materials are sand,fly ash, slag, creamsite, cinders,cinerite, pumice,vermiculite and so on. You can choose some materials as per your local resources.
Producity: The production speed is 1.3-1.7 m per minute , 500 Sqm per shift .
Sizes : Panel width : 600mm; Panel Thickness : 75,80,90,100,120mm ,etc ; Panel length : cuting any lenght as your requirements
Reinforcement : Both sides of the wall panels can insert reinforcement wires, diameter of 1.5- 6mm.
2. About the machine
Machine body adopts anti-rust technology. Key parts, like hopper are welded by stainless steel. Wearing parts like reameres, side from , vibration board , stock guide and other parts are ll welded with alloy.

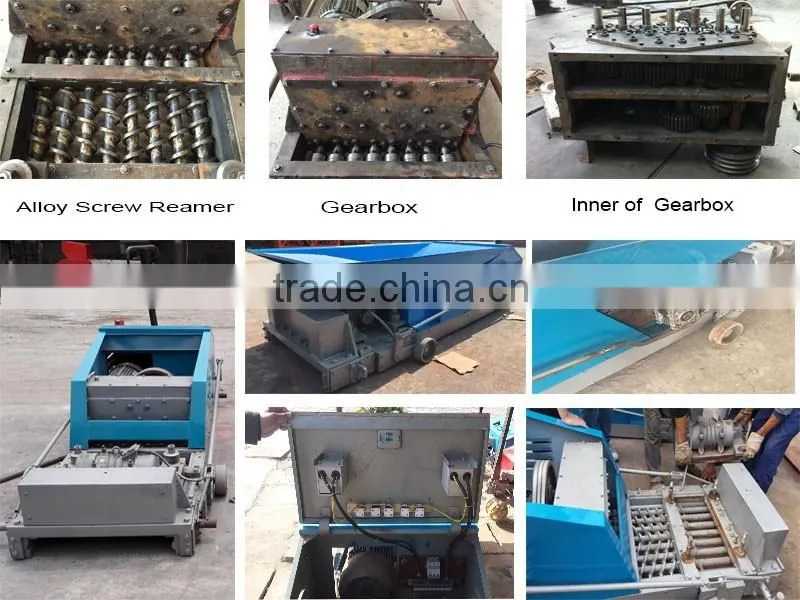

Inner structure
3. Main specification and parameter
| Model No. | No. of holes | Hole Diameter | Motor power | Vibrator Power | Max span | Molding Speed(m/min) | Overall dimension (mm) | Weight(kg) |
| JQT 90*600 | 7 | 58 | 5.5 (KW) | 0.8(KW) | 3 m | 1.5-1.8 | 2470 X 950 X 680 | 1000 |
| JQT 100*600 | 7 | 62 | 5.5(KW) | 0.8(KW) | 3m | 1.5-1.8 | 2470 X 950 X 680 | 1030 |
| JQT 120*600 | 5 | 88 | 5.5(KW) | 1.0(KW) | 3m | 1.5-1.8 | 2250 X 980 X 730 | 1300 |
| JQT 150* 600 | 5 | 110 | 7.5(KW) | 1.1(KW) | 3m | 1.5-1.8 | 2300 X 820 X 820 | 1450 |

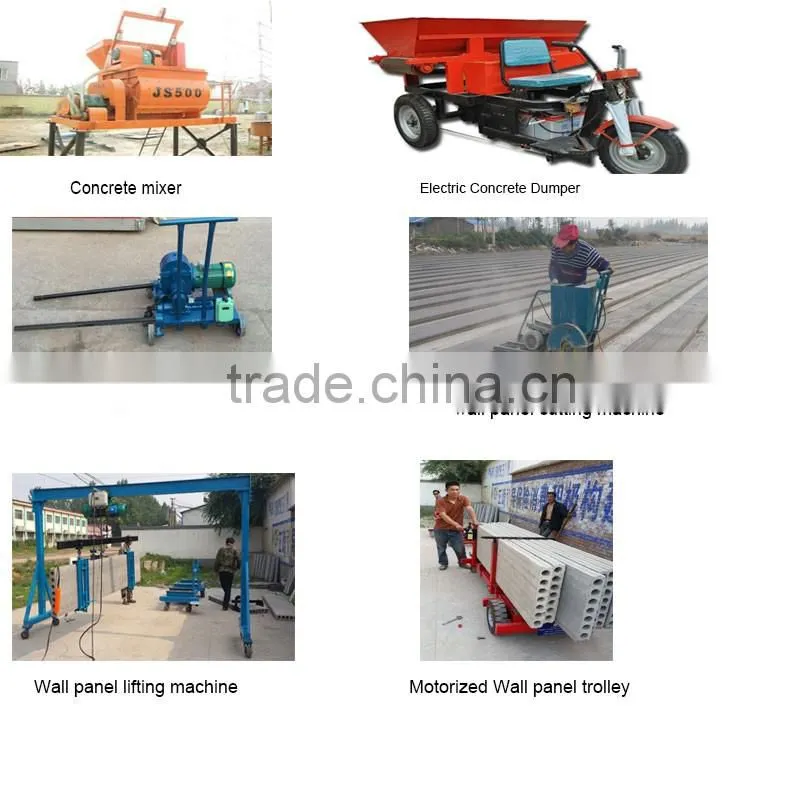

4.About Wall Panel Production line and General auxiliary equipment
3.1 Concrete mixer
3.2 Electric Concrete cutter
3.3 Prestressed tension machine
3.4 Concrete dumper (Elecric or Manual)
3.5 Wall panels Transporter
3.6 Wall panel installation machine
Advantages of the wall panel production lines:
- Excellent profitability
- Low production cost
- Minimum energy requirement
- Minimum labor
- Little production area requirement
- Environment-friendly production: no pollution, noiseless and no vibrations are produced
- Easy handling and maintenance
- Factory automation according to customer's requirements

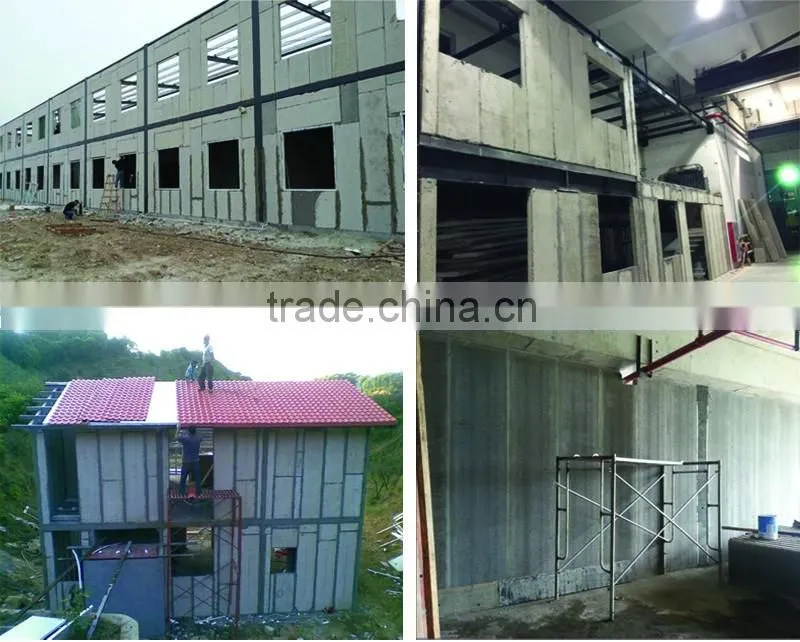

The Finished product is a high quality and economic construction component for partition wall board purpose
- Light weight: from 40kg/m2
- Acoustic insulating : máximum 55 dB
- Fireproof: 0,5 – 2 h
- Dampness-proof
- Firm and solid: 8 – 30 Mpa
- Health safe
- Environment-friendly
Do you know?

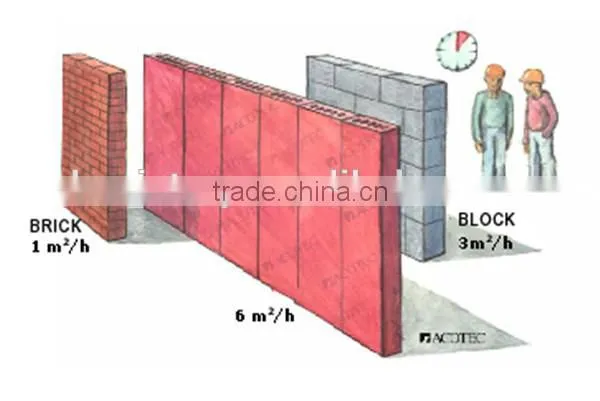

The Precast wall panel using our production lines mean an important decrease in construction costs. And the instalation cost of the interior wall panels can go up to 40% less than using regular construction brick.
Our certificate
Product Quality Assurance :
100% brand new when loading from the factory. The seller guarantee quality of the machines for a period of one year from the date of trial run finish.
Technical Support
If requested by customers ,the seller will send one engineer for guiding installation on site.During the installing time, the buyer shall actively cooperate with the technical staff and be responsible for the technical staff’s room and board fees .The seller shall aslo be responsible for the technical staff’s wage and round-trip airfare.
After-sales Assurance
If any parts (excluding wearing parts) are found defective in quality in the first year, the seller should replace free-of-cost. After one year, parts can be replaced on favorable payment basis.
