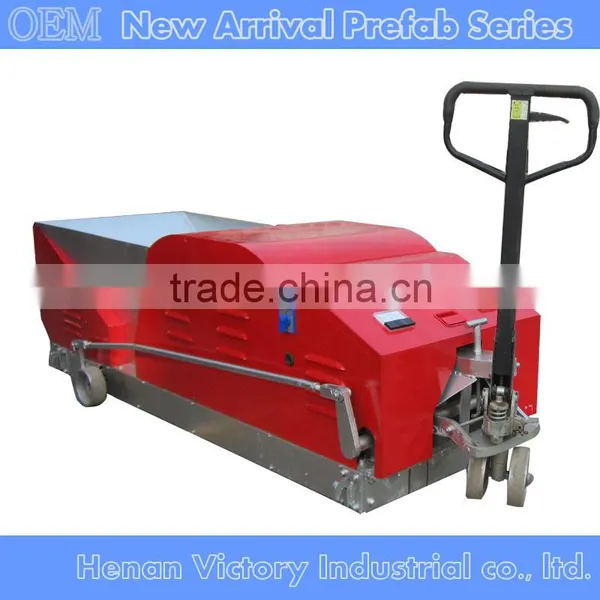

Precast house lightweight wall panel forming machine
| Material | fly ash,industrial ash,expanded perlite,cement,low carbon steel wire,ect |
| Color | red,green,yellow,black |
| Supporting machine | mixing machine,tension machine,cutting machine,ect |
| Feature | The equipment is simple and semi-automatic,reduce the labor intensity,flexible and can be used for the site, |
Technical parameters of Precast house lightweight
wall panel forming machine
Modle |
JQT9x60 |
JQT10x60 |
JQT12x60 |
JQT18x60 |
Width(mm) |
595±2 |
595±2 |
595±2 |
595±2 |
Thickness(mm) |
90±1 |
100±1 |
120±1 |
180±1 |
No. of holes and hole diameter(mm) |
7*58 |
6*58 |
5*85 |
3*132 |
Panel making speed(m/min) |
1.1-1.7 |
1.1-1.7 |
1.1-1.7 |
1.1-1.7 |
Main motor (kw) |
4 |
4 |
4 |
4 |
Vibrator(kw) |
0.8 |
0.8 |
0.8 |
1.1 |
Overall dimensions (mm) |
2560x950x980 |
2560x950x980 |
2560x950x980 |
2560x950x980 |
GW(kg) |
1100 |
1200 |
1300 |
1800 |
Also can make other models according to user's requirements.

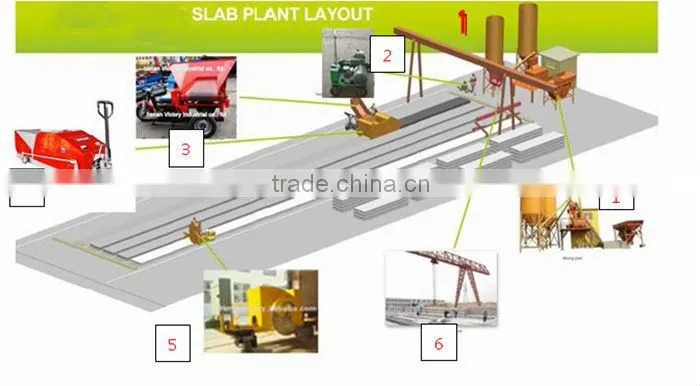

Board flowchart

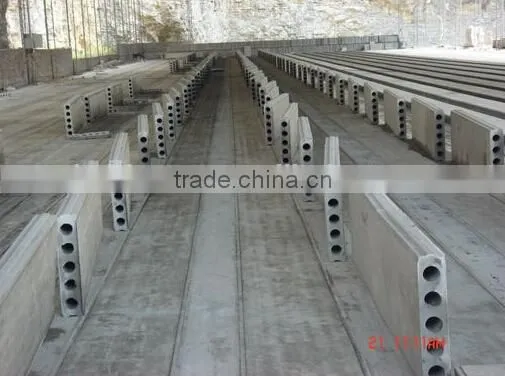

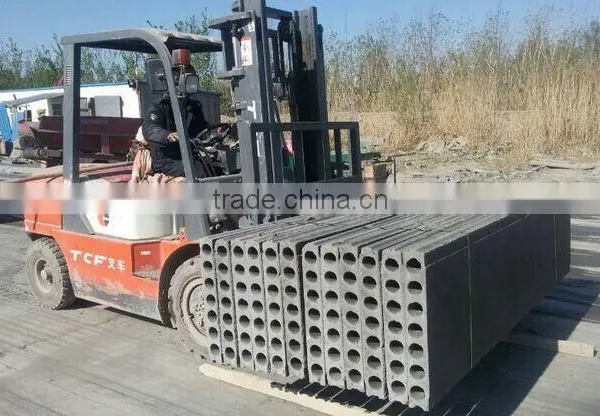

Final Lightweight wall board and installation
Packaging:Standard model we have stock in warehouse,if you have special requirements,we will customize for you within 7 days.It is nude in container.
Shipping:Within 15 workdays after receiving advanced payment.
Our excellent service
1.We can timely provide the complete sets of equipment and accessories.
2.We can design and make machine according to user‘s request.
3.In the warranty period,the damage of failure all because of products can ba free repaired(besides
vulnerable parts) within 12 months.
Henan victory is a company integrated by a team of professions with a wide and deep experience in the precast concrete machinery industry. The company was founded in 1995 and since then, it has been a leading manufacturer of single equipment and complete plants for the precast concrete industry. Especially, we are the earliest designer and manufacturer of slipformer precast wall panel extruder in Henan Province, even in all over China.
In order to develop overseas market, we set up foreign trading department in Zhengzhou City, provincial capital OF Henan in 2011. Since then, we have established business relations with over 30 countries. Currently, our precast concrete machinery has been used in many precast factories from South Asia, Middle East and African Countries.
5. How To Order From "Henan Victory Industrial co. ltd."?
a. Click "Start Order", and we will issure contract online through alibaba, which will protect buyer from fake order
We can use Security payment method for any customer
b. Confirm PI (Profroma Invoice) with our sales Man and
Payment: 50% deposit, the Balance 50% paid against Bill Of Lading Copy.
We Strive to open the World Market, so, we attend exihibition of Thailand on Apr. 2016 and will always go abroad at other countries very Year! We got cooperation this Thailand trip.
