Hot Sale Sand Washer With Low Consumption

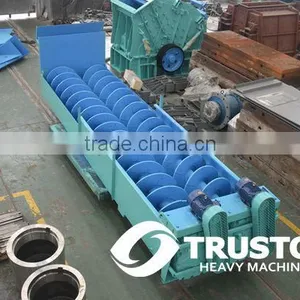

Hot Sale Sand Washer With Low Consumption photo-1
US$ 10,000 - 1,000,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Sand washer
Application:
sand making, modern construction, water conservancy, minning,etc., Sand making, modern construction, water conservancy, minning,etc.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai China
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Other, Sand washer
Application sand making, modern construction, water conservancy, minning,etc., Sand making, modern construction, water conservancy, minning,etc.
Motor Type AC Motor
Power(W) According to the model
Capacity(t/h) 100~860, 100~860
Place of Origin Shanghai, China
Brand Name TRUSTON
Model Number Sand washer
Dimension(L*W*H) According to the model
Weight According to the model
Certification ISO & CE
Warranty One year for main frame(excluding wear parts)
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Sprial sand washser
Novel structure,good feeding performance
Adjustable excitation force
Low consumption
ISO & CE

Hot Sale Sand Washer with Low Consumption

Hot sale sand washer with low consumption

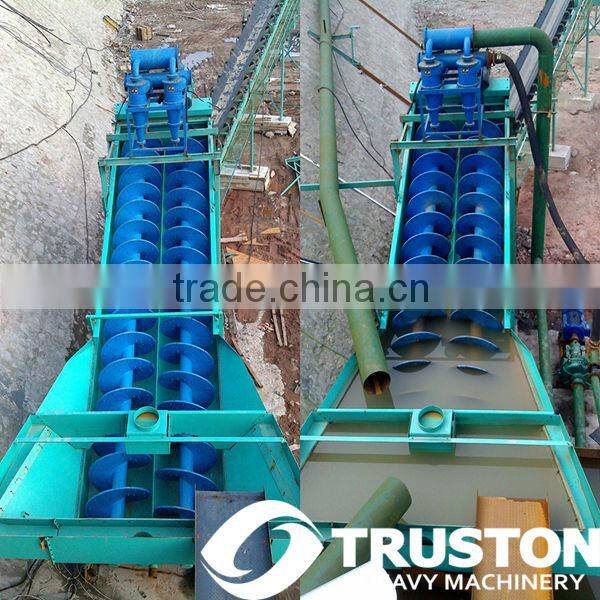

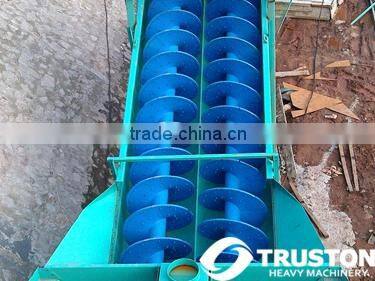

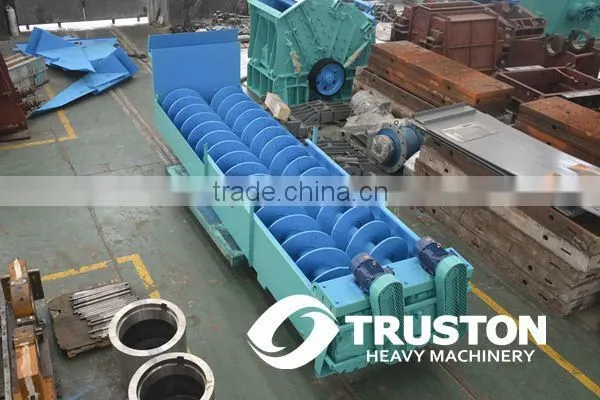

1. Sprial Sand Washer



Sprial sand washer  is mainly used for sand factory,electric pole factory,worksite of building and concrete dam to wash,classifying and de-watering various sands.
This sand washer adopt inclination of 15°,under the water tub,three weir plates from the sediment pool,the screw head is immersed in this pool,the screw is driven by electric motor through reducer rotating continuously,the fresh water is feeding from porous plate at bottom of sediment pol,this machine are three functions of washing,de-watering,classifying



2. Sand Washer Specification



Model Screw Diameter(mm) Selected Size(mm) Capacity(t/h)  Power(kw) Weight(kg)
XL-915 915 <10 100 11 6585
2XL-915 915 <10 200 11×2 11555
XL-1115 1115 <10 175 18.5 10710
2XL-1115 1115 <10 350 18.5×2 16700
XL-1370 1370 <10 250 30 14530
2XL-1370 1370 <10 490 30×2 25610
XL-1676 1676 <10 360 45 18570
2XL-1676 1676 <10 725 45×2 41930
2XL-1830 1830 <10 860 55×2 18570
XL-928 928 <65 155 22 6200
2XL-928 928 <65 315 22×2 10990
XL-1118 1118 <75 225 30 9300
2XL-1118 1118 <75 450 30×2 16350
XL-905 905 <75 125 110 22800
XL-1120 1118 <100 175 160 31950



Hot sale sand washer with low consumption Hot sale sand washer with low consumption
Hot sale sand washer with low consumption Hot sale sand washer with low consumption
Hot sale sand washer with low consumption Hot sale sand washer with low consumption



Hot sale sand washer with low consumptionHot sale sand washer with low consumptionHot sale sand washer with low consumptionHot sale sand washer with low consumptionHot sale sand washer with low consumptionHot sale sand washer with low consumptionHot sale sand washer with low consumption



About Shanghai Chuangshen



Shanghai Chuangshen Heavy Machinery Co., Ltd is a high-tech industrial enterprise which is professional in designing, manufacturing, marketing, assembling, installing and debugging various jaw crushers, impact crushers, cone crushers, VSI crushers, hammer crushers, roll crushers, screen-type crushers, grinding mill, complete crushing and screening plant and sand making plant. The first phase of factory area covers 33000 square meters, which includes heavy machinery machining workshop, heavy equipment assembling workshop and product display workshop. The second phase of 66000 square meters factory area will be built in Shanghai Free Trade Zone- Lingang heavy industrial area, where we commit to set up a world-class crushing and screening modern production base with leading development technology, diverse business patterns, novel and optimized service, and deeply combined information technology.

Our products are widely applied in mining, building materials, metallurgy, railway, highway, water conservancy, chemical, and coal industries, and are well distributed both in domestic and global markets.
We keep developing by taking the road of market-oriented, enterprise-led, university-industry cooperation, and gathering the best social resources. We not only have mining industry’s top talent work in our company, but also establish a long-term cooperation with Shanghai Institute for Advanced Research of Chinese Academy of Sciences to bring innovation and new change to traditional manufacturing industry.
We focus on bringing in advanced technology and experience from oversea countries, and have cooperated with top companies from German, America, Australia, etc. to keep the leading level of our products in mining industries.
