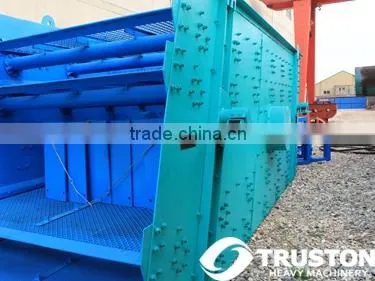

Vibriting Screen Series CYK by Truston
US$ 10,000 - 1,000,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, vibriting screen
Application:
ore
Payment & Shipping
Payment Methods:
Port of Shipment:
shnaghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Quality Vibriting ScreenUS$ 10,000 - 1,000,000MOQ: 1 Set -
High Quality and Low Price Vibriting ScreenUS$ 10,000 - 1,000,000MOQ: 1 Set
-
Mining Vibriting ScreenUS$ 10,000 - 1,000,000MOQ: 1 Set
-
Automatic Vibrating FeederUS$ 10,000 - 1,000,000MOQ: 1 Set
-
High Efficiency Rotary Vibration Screen Machine Liquids ISO&CE/sand Vibrating ScreenUS$ 10,000 - 1,000,000MOQ: 1 Set
Condition
New
Type
Other, vibriting screen
Application
ore
Motor Type
AC Motor
Power(W)
7.5-2*55kw
Capacity(t/h)
30-1500
Place of Origin
Shanghai, China
Brand Name
Truston
Model Number
CYK
Weight
3540-26550 Kg
Certification
ISO,CE
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
Vibriting screenPackaging & Delivery
| Packaging Details: | standard container, nude packs or in bulk |
|---|---|
| Delivery Detail: | one month |
Specifications
multilayer vibrating screen machinery are well suited for use in a variety of aggregate , mineral and industrial applications.
multilayer vibrating screen machinery
All Chuangshen inclined screens are manufactured with huck-bolted frames. These rugged yet versatile units are well suited for use in a variety of aggregate , mineral and industrial applications. Sizes range from 1500*4800 to 3600*7200 and are available in single, two, three or four deck arrangements.
Main advantages of Inclined Screens
Available in a wide range of models, sizes and deck styles
Strong vibrator force, low vibrator noise
High production, low maintenance
Oil or grease lubrication can be specified to suit operating speeds and other production requirements.
| Model | Decks | size(mm) | Max Feeding Size(mm) | Capacity(t/h) | Frequency(Hz) | Double Swing(mm) | Power(kw) | Weight(kg)(exclude electric) |
| CYK1548×3 | 3 | 1500×4800 | 200 | 30-150 | 740 | 8 | 18.5 | 5950 |
| CYK1548×4 | 4 | 1500×4800 | 200 | 30-150 | 740 | 8 | 22 | 7390 |
| CYK1854×2 | 2 | 1800×5400 | 200 | 32-312 | 800-970 | 8 | 18.5 | 8050 |
| CYK1854×3 | 3 | 1800×5400 | 200 | 30-200 | 740 | 8 | 22 | 8940 |
| CYK1854×4 | 4 | 1800×5400 | 200 | 30-200 | 740 | 8 | 30 | 10940 |
| CYK1860×2 | 2 | 1800×6000 | 200 | 40-250 | 800-970 | 8 | 25 | 8550 |
| CYK1860×3 | 3 | 1800×6000 | 200 | 40-250 | 740 | 8 | 28 | 8940 |
| CYK1854×4 | 4 | 1800×6000 | 200 | 45-300 | 740 | 8 | 30 | 11200 |
| CYK2160×2 | 2 | 2100×6000 | 200 | 150-450 | 740 | 8 | 30 | 10795 |
| CYK2160×3 | 3 | 2100×6000 | 200 | 150-450 | 740 | 8 | 30 | 10346 |
| CYK2160×4 | 4 | 2100×6000 | 200 | 100-400 | 740 | 8 | 37 | 12785 |
| CYK2460×2 | 2 | 2400×6000 | 200 | 150-400 | 740 | 8 | 37 | 11205 |
| CYK2460×3 | 3 | 2400×6000 | 200 | 150-650 | 740 | 8 | 37 | 10786 |
| CYK2460×4 | 4 | 2400×6000 | 200 | 150-650 | 740 | 8 | 45 | 12786 |
| CYK2865×2 | 2 | 2800×6500 | 200 | 150-650 | 740 | 8 | 45 | 15286 |
| CYK2865×3 | 3 | 2800×6500 | 200 | 600-800 | 740 | 8 | 2×30 | 17793 |
| CYK2865×4 | 4 | 2800×6500 | 200 | 600-800 | 740 | 8 | 2×37 | 18644 |
| CYK3070×2 | 2 | 3000×7000 | 200 | 150-650 | 740 | 8 | 2×30 | 15786 |
| CYK3070×3 | 3 | 3000×7000 | 200 | 500-800 | 740 | 8 | 2×37 | 18786 |
| CYK3070×4 | 4 | 3000×7000 | 200 | 600-800 | 740 | 8 | 2×45 | 23944 |
| CYK3672×2 | 2 | 3600×7200 | 200 | 600-1500 | 740 | 8 | 2×37 | 19668 |
| CYK3672×3 | 3 | 3600×7200 | 200 | 800-1500 | 740 | 8 | 2×45 | 22980 |
| CYK3672×4 | 4 | 3600×7200 | 200 | 1000-1500 | 740 | 8 | 2×55 | 26556 |
