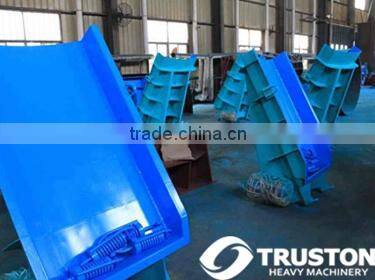

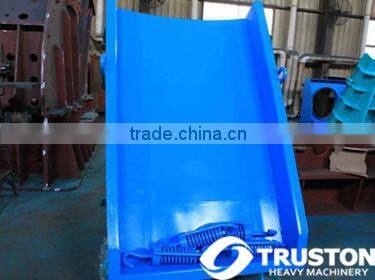

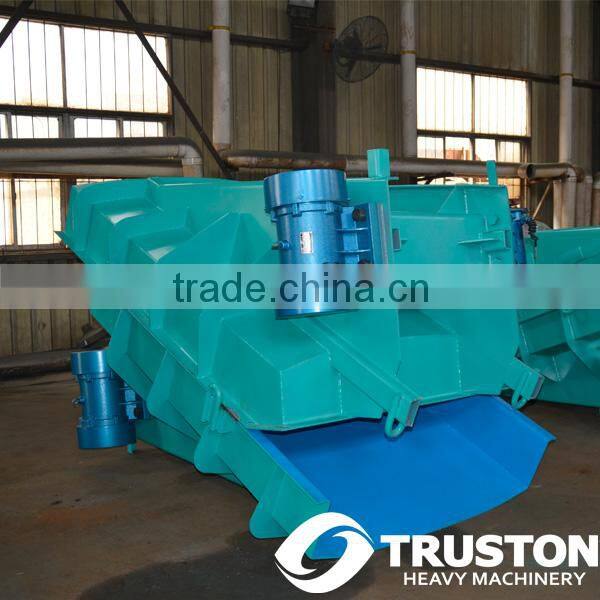

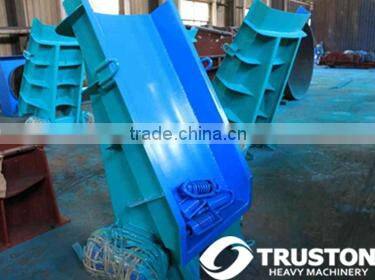

2014 Newest CZG 2200*1400 Electric Vibrating Feeder

2014 Newest CZG 2200*1400 Electric Vibrating Feeder photo-1
US$ 10,000 - 1,000,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Vibrating Feeder & Screens
Application:
sand making, modern construction, water conservancy, minning,etc., Sand making, modern construction, water conservancy, minning,etc.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai China
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Other, Vibrating Feeder & Screens
Application sand making, modern construction, water conservancy, minning,etc., Sand making, modern construction, water conservancy, minning,etc.
Motor Type AC Motor
Power(W) According to the model
Capacity(t/h) 100~1000, 100~1000
Place of Origin Shanghai, China
Brand Name TRUSTON
Model Number CZG vibrating screen
Dimension(L*W*H) According to the model
Weight According to the model
Certification ISO & CE
Warranty One year for main frame(excluding wear parts)
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Vibrating Feeder
Novel structure,good feeding performance
Adjustable excitation force
Low consumption
ISO & CE

2014 Newest CZG 2200*1400 Electric Vibrating Feeder

2014 Newest CZG 2200*1400 Electric Vibrating Feeder




1. Vibrating Feeders



Vibrating Feeders are a kind of linear direction feeding equipment, in the Sand-Stone production line, it can send materials to crusher evenly and continuously and at the same time, it can screen materials roughly. Chuangshen’s Vibrating Feeders offer high productivity, reliability and ease of maintenance. Setting the industry standard their outstanding versatility has been proven on thousands of installations worldwide.



2. Vibrating Feeders are Appropriate for



Primary crushing widely applied in mining, road&railway, concrete, chemical and building material industries.



3. Main Advantages of Vibrating Feeders



(1) Simple & rugged construction, continuous operation

(2) Adjustable excitation force

(3) Low noise and power consumption

(4) Vibrating feeders meter material to the crusher and scalp out fines while delivering optimum performance.



4. Vibrating Feeders Specification



Model

Hopper
 (LxW)(mm)

Max Feed Size
 (mm)

Frequency
 (hz)

Capacity
 (t/h)

Power
 (kw)

CZW3815

3800x960

500

~800

100-200

15

CZW4419

4875x1124

650

~800

110-400

18.5

CZW5224

6100x1320

800

~800

100-500

30

CZW5824

6096x1475

1020

~800

200-550

37

CZW7024 6100x1820 1500 ~800 200-950 55

CZG-100

1300x700

210

970

100

0.55x2

CZG-200

1600x800

270

970

200

0.75x2

CZG-300

1800x900

300

970

300

1.1x2

CZG-400

1900x950

300

970

400

1.1x2

CZG-500

1900x1250

300

970

500

1.5x2

CZG-750

2200x1400

400

970

750

2.2x2





2014 Newest CZG 2200*1400 Electric Vibrating Feeder 2014 Newest CZG 2200*1400 Electric Vibrating Feeder
2014 Newest CZG 2200*1400 Electric Vibrating Feeder 2014 Newest CZG 2200*1400 Electric Vibrating Feeder



2014 Newest CZG 2200*1400 Electric Vibrating Feeder2014 Newest CZG 2200*1400 Electric Vibrating Feeder2014 Newest CZG 2200*1400 Electric Vibrating Feeder2014 Newest CZG 2200*1400 Electric Vibrating Feeder2014 Newest CZG 2200*1400 Electric Vibrating Feeder2014 Newest CZG 2200*1400 Electric Vibrating Feeder2014 Newest CZG 2200*1400 Electric Vibrating Feeder



About Shanghai Chuangshen



Shanghai Chuangshen Heavy Machinery Co., Ltd is a high-tech industrial enterprise which is professional in designing, manufacturing, marketing, assembling, installing and debugging various jaw crushers, impact crushers, cone crushers, VSI crushers, hammer crushers, roll crushers, screen-type crushers, grinding mill, complete crushing and screening plant and sand making plant. The first phase of factory area covers 33000 square meters, which includes heavy machinery machining workshop, heavy equipment assembling workshop and product display workshop. The second phase of 66000 square meters factory area will be built in Shanghai Free Trade Zone- Lingang heavy industrial area, where we commit to set up a world-class crushing and screening modern production base with leading development technology, diverse business patterns, novel and optimized service, and deeply combined information technology.

Our products are widely applied in mining, building materials, metallurgy, railway, highway, water conservancy, chemical, and coal industries, and are well distributed both in domestic and global markets.
We keep developing by taking the road of market-oriented, enterprise-led, university-industry cooperation, and gathering the best social resources. We not only have mining industry’s top talent work in our company, but also establish a long-term cooperation with Shanghai Institute for Advanced Research of Chinese Academy of Sciences to bring innovation and new change to traditional manufacturing industry.
We focus on bringing in advanced technology and experience from oversea countries, and have cooperated with top companies from German, America, Australia, etc. to keep the leading level of our products in mining industries.
