Specifications
apron feeder for sale:1.stationary type & short-distance conveying
under hard conditions
3.ISO,CE certificate
Heavy Apron Feeder for Mining Industry made in China is in hot sale
1.CBW Apron Feeder Specifications
| Model |
Width Plate (mm) |
Distance Of Shafts (mm) |
Speed (m/s) |
Feed Size (mm) |
Capacity (t/h) |
Power (kw) |
Weight (kg) |
Overall Dimensions (LxWxH)(mm) |
| CBW100-6 | 1000 | 6000 | 0.01~0.1 | <500 | 80~160 | 11 | 15000 | 86200x4960x1600 |
| CBW100-12 | 1000 | 12000 | 0.05~0.1 | <500 | 60~130 | 15 | 23500 | 13500x4215x1675 |
| CBW120-4 | 1200 | 4000 | 0.014~0.08 | <500 | 45~150 | 11 | 12600 | 5810x5160x1480 |
| CBWZ120-4.5 | 1200 | 4500 | 0.054 | <500 | 150 | 15 | 30500 | 7183x3616x2071 |
| CBW120-6 | 1200 | 6000 | 0.01~0.1 | <500 | 80~160 | 11 | 16000 | 8620x5160x1600 |
| CBW120-11 | 1200 | 11000 | 0.01~0.1 | <600 | 50~100 | 15 | 23500 | 11463x5029x2860 |
| CBW120-19 | 1200 | 19000 | 0.014~0.09 | <600 | 45~150 | 22 | 41000 | 21620x5460x2000 |
| CBW125-6 | 1250 | 6000 | 0.014~0.08 | <600 | 45~150 | 11 | 18900 | 8620x5240x1950 |
| CBW125-12 | 1250 | 12000 | 0.014~0.08 | <600 | 45~150 | 18.5 | 31800 | 14620x5460x2000 |
| CBW140-8 | 1400 | 8000 | 0.017~0.17 | <700 | 100~200 | 22 | 29200 | 10350x5948x1840 |
| CBW140-16 | 1400 | 16000 | 0.006~0.06 | <700 | 20~200 | 22 | 45900 | 18310x6447x2030 |
| CBW140-18.03 | 1400 | 18030 | 0.006~0.06 | <700 | 20~200 | 22 | 50900 | 20380x6440x2030 |
| CBW150-5 | 1500 | 5000 | 0.014~0.08 | <700 | 85~288 | 15 | 18700 | 7620x5440x1950 |
| CBW150-10.5 | 1500 | 10500 | 0.006~0.06 | <700 | 20~200 | 22 | 49400 | 12850x5595x1705 |
| CBW150-15 | 1500 | 15000 | 0.006~0.06 | <700 | 20~200 | 22 | 58800 | 17350x5595x1705 |
| CBW160-6 | 1600 | 6000 | 0.017~0.17 | <800 | 61~610 | 22 | 25000 | 8354x6099x2100 |
| CBW160-9 | 1600 | 9000 | 0.076 | <800 | 180 | 22 | 34700 | 11250x5716x2240 |
| CBW180-8 | 1800 | 8000 | 0.022~0.046 | <1000 | 30~320 | 37 | 53000 | 10300x4295x3650 |
| CBW220-10 | 2200 | 10000 | 0.018~0.055 | <1500 | 220~680 | 45 | 80400 | 12650x4495x3350 |
| CBW240-10 | 2400 | 10000 | 0.018~0.055 | <1500 | 220~680 | 45 | 83400 | 12650x4695x3350 |

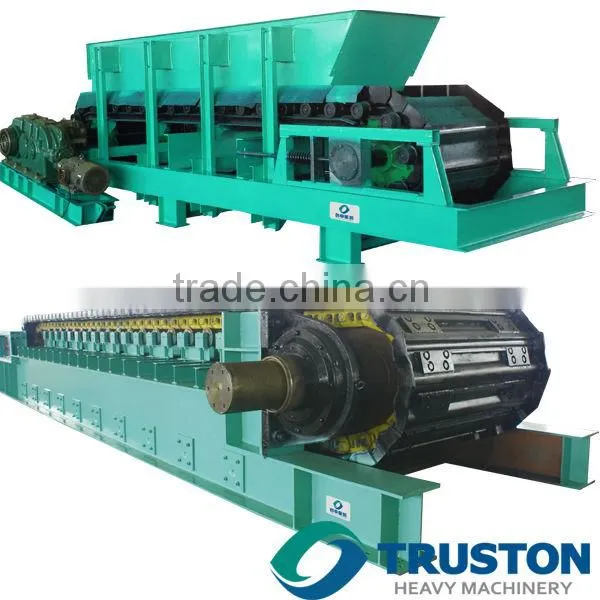

2. CBW Apron Feeder Introduction
Apron feeder, a fixed feeder, is the accessory equipment for conveying machinery. This machine is used to convey materials to primary crusher continuously and evenly. It can also be used for short-distance conveying, especially for heavy, big and abrasive materials. Because of its working reliability in harsh conditions, such as in the open air, in damp environment, ect, apron feeder has been widely applied in the industries of metallurgy, mining, cement and building materials etc. This machine can be in horizontal or inclined installation, with max. inclination degree to be 25°. To avoid direct hit against feeder, storage bin is cannot be emptying.
3.Main advantages of CBW Series Apron Feeder
This apron feeder has been developed by our company for many years, and has its own characteristics. It is featured by more reasonable machine structure, easier installation, dismantlement and maintenance. This machine adopts the principle of two point support (add middle supporting point for mixed feeding), with one point put directly on crusher, which contributes to a simple layout and saves the foundation cost. The tail device adopts a special design suitable for rainy and humid area, which can avoid chain to be “jumping over teeth” as a consequence of wet and sticky material accumulating in the tail part. In the tail part, there is also a sleeper shock absorber; in the middle part, there are also a certain number of shock-absorbing roller supports, which can improve the stress condition when big materials impact idler wheels on both sides and trough plate, thus to improve the service life of operating parts. The head cover is specially strengthened, and the right and left part of lower cover can be separated, which will help lifting the rotor block of crusher without obstruction. The head driving chain sprocket is driven separately by odd-even gear, which will make service life twice lengthened. The head driving chain is cut into 3-disc teeth, therefore, there is no need to dismantle chain plate when user wants to change sprocket. Driving device can be combined according to user’s different requirements. There are planetary rectangular reducer combination, parallel axis reducer combination, planetary reducer combination, oil hydraulic motor automatic control combination. There are crawler type and roller type driving chain. Conveying trough plate is classified by single-circular-arc type (H type), double-circular-arc type (L type) and flat plate type (P type), which has features of impact resistance, abrasive resistance, no leaking and stable operation. Flat plate type is mainly used for sintering steel.
4.CBW Apron Feeder are appropriate for
It can be used for short-distance conveying, especially for those materials with high density, big size, and high abrasiveness. Apron feeder can work reliably under hard conditions for open-air, humid encironment, etc, and is widely applied in metallury, mining, cement, building materials industries.
|
|
|
|
|
|
5.About us
Shanghai Chuangshen Heavy Machinery CO., Ltd is a high-tech industrial enterprise which is professional in designing, manufacturing, marketing, assembling, installing and debugging various jaw crushers, impact crushers, cone crushers, VSI crushers, hammer crushers, roll crushers, screen-type crushers, grinding mill, complete crushing and screening plant and sand making plant.
Our products are widely applied in mining, building materials, metallurgy, railway, highway, water conservancy chemical, and coal industries, and are well distributed both in domestic and global markets.
We keep developing by taking the road of market-oriented, enterprise-led, university-industry cooperation, and gathering the best social resources. We not only have mining industry’s top talent work in our company, but also establishing a long-term cooperation with Shanghai Institute for Advanced Research of Chinese Academy of Sciences to bring innovation and new change to traditional manufacturing industry.
Based on the core value of “Honesty, create value for customers”, we earnestly performs the ISO9001 Quality Management System, constantly innovates new products which have been authorized with new patents, and play an active role in industry development by creating a set of industrial and national standards. We have been rated as AAA Credit Qualification Enterprise, and are the council member of Shanghai Stone Industry Association-Sand Branch, and also the member of CHMIA(China Heavy Machinery Industry Association). Now oversea agents have been rapidly expanded.
|
|
|
|
|
|
|
6.Support
We can not only provide the good machines, but also wholeheartedly provide the comprehensive for our clients. The series of professional technology service will make you have an excellent product experience.
After-sales service support
After we signed the purchase contract and have a certain reputation guarantee, we will contact the professional group that responsible for ship bookings, commodity inspection, commercial invoices, packing list, insurance policy and so on, in order to provide you the perfect goods trading services, until the product you purchased properly to your hands.
We will send a professional and high levels installation engineer team at the same time the product properly to the destination, in order to supply you a full range of products installation services. For some typical problems, our rigorous installed engineers also will do some certain installation debugging training, etc.
Technological support
Shanghai Chuangshen has been largely adopting new technologies, new techniques and high-tech equipments. And we also have strict and effective quality control system. We have obtained ISO9001:2000 quality system certificate.
We insist on providing clients with overall solutions from equipment recommendation to debugging and installation, worker training, technical.
