Specifications
circular vibrating screen:1.novel design, four different screen sizes
2.high capacity, high screen
3.low vibration noise

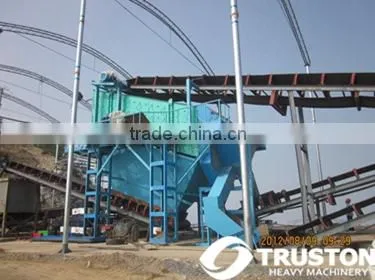

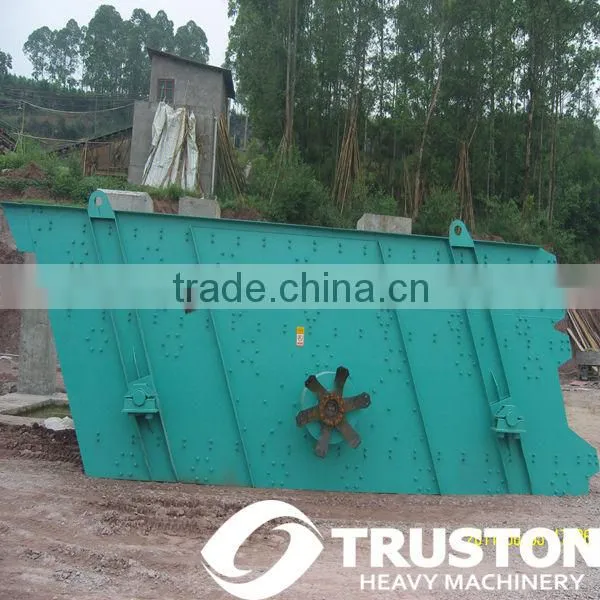

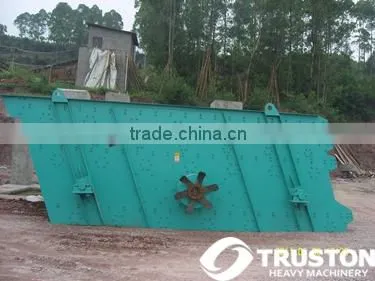

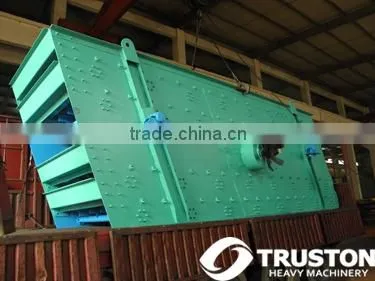

CYK Series Hot Circular Vibrating Screen/Vibration Machine/Powder Sieving Machine for Gravel and Sand
1.CYK Circular Vibrating Screen Specifications
| Model | Decks | Size(mm) | Max Feed Size(mm) | Capacity(t/h) | Frequency Swing(hz) | Double Amplitude(mm) | Power(kw) | Weight(exclude electric)(kg) |
| CYK1236 | 1 | 1200x3000 | 100 | 20-150 | 740 | 8 | 11 | 3540 |
| CYK1236x2 | 2 | 1200x3000 | 100 | 30-150 | 740 | 8 | 11 | 3820 |
| CYK1236x3 | 3 | 1200x3000 | 100 | 50-150 | 740 | 8 | 11 | 5230 |
| CYK1545 | 1 | 1500x4500 | 200 | 30-200 | 740 | 8 | 11 | 4200 |
| CYK1548x2 | 2 | 1500x4800 | 200 | 35-200 | 740 | 8 | 15 | 4850 |
| CYK1548x3 | 3 | 1500x4800 | 200 | 50-200 | 740 | 8 | 18.5 | 5950 |
| CYK1548x4 | 4 | 1500x4800 | 200 | 80-200 | 740 | 8 | 22 | 7150 |
| CYK1854 | 1 | 1800x5400 | 200 | 42-250 | 740 | 8 | 18.5 | 6500 |
| CYK1860x2 | 2 | 1800x6000 | 200 | 45-250 | 740 | 8 | 22 | 7550 |
| CYK1860x3 | 3 | 1800x6000 | 200 | 45-250 | 740 | 8 | 22 | 9150 |
| CYK1860x4 | 4 | 1800x6000 | 200 | 45-250 | 740 | 8 | 30 | 10800 |
| CYK2160x2 | 2 | 2100x6000 | 200 | 100-400 | 740 | 8 | 30 | 7950 |
| CYK2160x3 | 3 | 2100x6000 | 200 | 130-400 | 740 | 8 | 30 | 9550 |
| CYK2160x4 | 4 | 2100x6000 | 200 | 150-400 | 740 | 8 | 37 | 11350 |
| CYK2460x2 | 2 | 2400x6000 | 200 | 150-500 | 740 | 8 | 37 | 8050 |
| CYK2460x3 | 3 | 2400x6000 | 200 | 150-600 | 740 | 8 | 37 | 10700 |
| CYK2460x4 | 4 | 2400x6000 | 200 | 150-600 | 740 | 8 | 45 | 12750 |
| CYK2470x2 | 2 | 2400x7000 | 200 | 150-500 | 740 | 8 | 37 | 11800 |
| CYK2470x3 | 3 | 2400x7000 | 200 | 150-600 | 740 | 8 | 37 | 11350 |
| CYK2470x4 | 4 | 2400x7000 | 200 | 150-600 | 740 | 8 | 45 | 13500 |
| CYK2470x2 | 2 | 2400x7000 | 200 | 250-700 | 740 | 8 | 2x30 | 12800 |
| CYK2470x3 | 3 | 2400x7000 | 200 | 300-700 | 740 | 8 | 2x30 | 13250 |
| CYK2470x4 | 4 | 2400x7000 | 200 | 300-700 | 740 | 8 | 2x30 | 14750 |
| CYK2870x2 | 2 | 2800x7000 | 200 | 250-650 | 740 | 8 | 2x30 | 15000 |
| CYK2870x3 | 3 | 2800x7000 | 200 | 300-800 | 740 | 8 | 2×37 | 17780 |
| CYK2870x4 | 4 | 2800x7000 | 200 | 300-800 | 740 | 8 | 2×45 | 18650 |
| CYK3070x2 | 2 | 3000x7000 | 200 | 350-800 | 740 | 8 | 2×30 | 15750 |
| CYK3070x3 | 3 | 3000x7000 | 200 | 400-900 | 740 | 8 | 2×37 | 18750 |
| CYK3070x4 | 4 | 3000x7000 | 200 | 400-900 | 740 | 8 | 2×45 | 23950 |
| CYK3672x2 | 2 | 3600x7200 | 200 | 500-1500 | 740 | 8 | 2×37 | 19650 |
| CYK3672x3 | 3 | 3600x7200 | 200 | 600-1500 | 740 | 8 | 2×45 | 22980 |
| CYK3672x4 | 4 | 3600x7200 | 200 | 800-1500 | 740 | 8 | 2×55 | 26550 |
2.CYK Circular Vibrating Screen Introduction

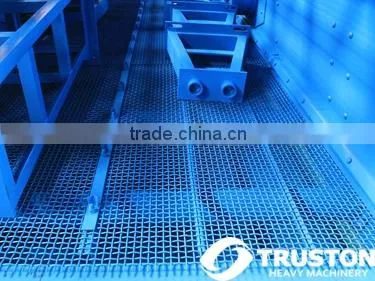

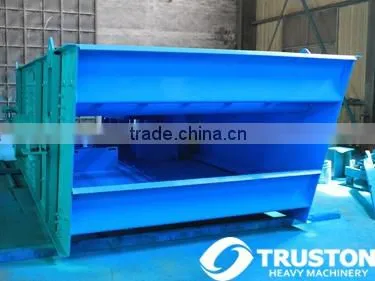

Circular vibrating screen is a new-generation straddling screen that introduces advanced foreign technology. It has features of nevel structure, high excitation force, high capacity, high screening efficiecy, and low vibration noise. With new design and perfect manufacturing, it is durable in use and easy for maintenance. It is the latest screening equipment to be designed for metal mines, quarry, etc. The screening box adopts cold welding structure, screen mesh is tensioned without mound layer, and excitation force can be adjusted by adding eccentric block on eccentric shafe.
3.Main advantages of CYK Circular Vibrating Screen
1)Available in a wide range of models, sizes and deck styles.
2)Strong vibrator force and low vibrator noise.
3)High production and low maintenance.
4)Oil or grease lubrication can be specified to suit operating speeds and other production requirements.
4.CYK Circular Vibrating Screen are appropriate for
1)Widely used in minerals, quarry, building materials, water conservancy and hydropower, transportation, chemical industry, smelting and so on. For material quality of screen mesh is changeable, the application is quite extensive.
2)A choice of oil splash or grease lubrication to suit specific operational requirements
3)All sizes available in multi-deck
|
|
|
|
|
|
5.About us
Shanghai Chuangshen Heavy Machinery CO., Ltd is a high-tech industrial enterprise which is professional in designing, manufacturing, marketing, assembling, installing and debugging various jaw crushers, impact crushers, cone crushers, VSI crushers, hammer crushers, roll crushers, screen-type crushers, grinding mill, complete crushing and screening plant and sand making plant.
Our products are widely applied in mining, building materials, metallurgy, railway, highway, water conservancy chemical, and coal industries, and are well distributed both in domestic and global markets.
Based on the core value of “Honesty, create value for customers”, we earnestly performs the ISO9001 Quality Management System, constantly innovates new products which have been authorized with new patents, and play an active role in industry development by creating a set of industrial and national standards. We have been rated as AAA Credit Qualification Enterprise, and are the council member of Shanghai Stone Industry Association-Sand Branch, and also the member of CHMIA(China Heavy Machinery Industry Association). Now oversea agents have been rapidly expanded.
|
|
|
|
|
|
|
6.Support
We can not only provide the good machines, but also wholeheartedly provide the comprehensive for our clients. The series of professional technology service will make you have an excellent product experience.
After-sales service support
After we signed the purchase contract and have a certain reputation guarantee, we will contact the professional group that responsible for ship bookings, commodity inspection, commercial invoices, packing list, insurance policy and so on, in order to provide you the perfect goods trading services, until the product you purchased properly to your hands.
We will send a professional and high levels installation engineer team at the same time the product properly to the destination, in order to supply you a full range of products installation services. For some typical problems, our rigorous installed engineers also will do some certain installation debugging training, etc.
Technological support
Shanghai Chuangshen has been largely adopting new technologies, new techniques and high-tech equipments. And we also have strict and effective quality control system. We have obtained ISO9001:2000 quality system certificate.
We insist on providing clients with overall solutions from equipment recommendation to debugging and installation, worker training, technical.
