double spiral classifier machine price for mineral sand washing processing

Specifications

double spiral sand washing machine
1.single spiral classifier
2.double helixes spiral classifier
3.high weir type
4.CE

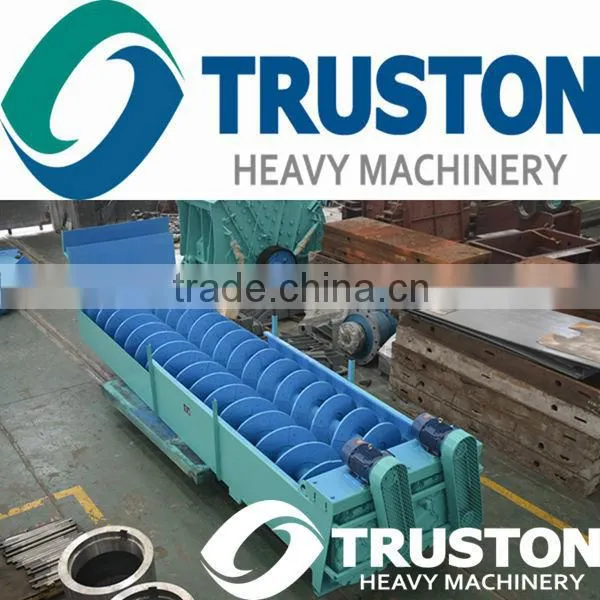

 Double Spiral Classifier Machine Price for Mineral Sand Washing Processing







1.  Spiral Classifier Sand WasherSpecifications



Model	Screw Diameter(mm)	Selected Size(mm)	Capacity(t/h)	Power(kw)	Weight(kg)
XL-915	915	<10	100	11	6585
2XL-915	915	<10	200	11×2	11555
XL-1115	1115	<10	175	18.5	10710
2XL-1115	1115	<10	350	18.5×2	16700
XL-1370	1370	<10	250	30	14530
2XL-1370	1370	<10	490	30×2	25610
XL-1676	1676	<10	360	45	18570
2XL-1676	1676	<10	725	45×2	41930
2XL-1830	1830	<10	860	55×2	18570
XL-928	928	<65	155	22	6200
2XL-928	928	<65	315	22×2	10990
XL-1118	1118	<75	225	30	9300
2XL-1118	1118	<75	450	30×2	16350
XL-905	905	<75	125	110	22800
XL-1120	1118	<100	175	160	31950



2. Sand Washer Introduction



Sand washer is suitable for washing, classifying and dewatering of sand used in construction, quarry, hydropower station, concrete dam project, pole factory, as well as "soul-rending nature sand" for casting use,quartz sand for glassworks, and pressure sand for oil well backfill. With inclination angle of 18⁰ , a setting pond is formed and surrounede by three-side plates at the bottom of water channel.The spiral head submerges into the setting pond,the spiral rotates continuously driven by motor and reducer, and clean water is fed into setting pond through the bottom perforated plate.
