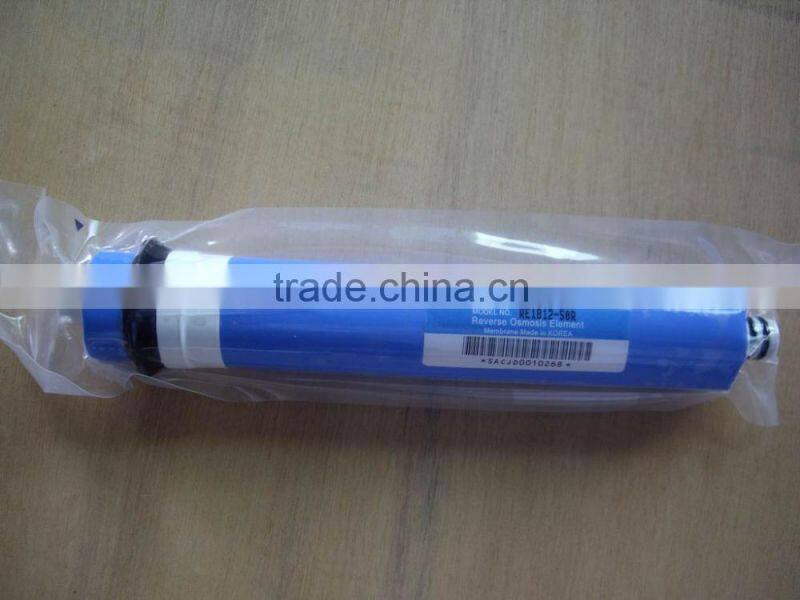

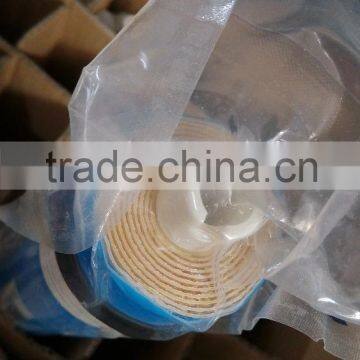

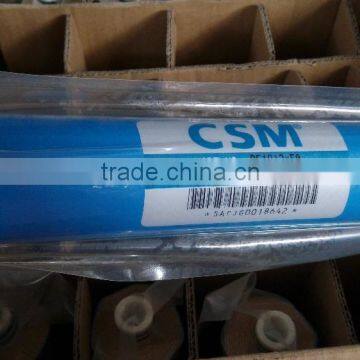

Reverse Osmosis Membrane Price Pressure Vessels SCR500-CSM50G
US$ 10 - 12.2
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Seoul, South Korea
Brand Name:
CSM
Model Number:
SCR500-CSM50G
Payment & Shipping
Payment Methods:
Port of Shipment:
shengzhen/guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Reverse Osmosis Membrane Price Pressure Vessels SCR501-HT50G VONTRONUS$ 8.1 - 9.7MOQ: 1000 Pieces -
8 Inch ro Membrane Housing Water Purifier Membrane 4021 SCR501-HT50G VONTRONUS$ 8.1 - 9.7MOQ: 1000 Pieces
-
8 Inch ro Membrane Housing Water Purifier Membrane 4021 SCR500-CSM50GUS$ 10 - 12.2MOQ: 1000 Pieces
-
Home Pure Drinking 5 Stage Reverse Osmosis Water Filter System With UV LampUS$ 63 - 68MOQ: 100 Sets
-
Best Install Countertop 3 Stage Water Filter Machine Domestic PriceUS$ 14 - 17MOQ: 100 Sets
Place of Origin
Seoul, South Korea
Brand Name
CSM
Model Number
SCR500-CSM50G

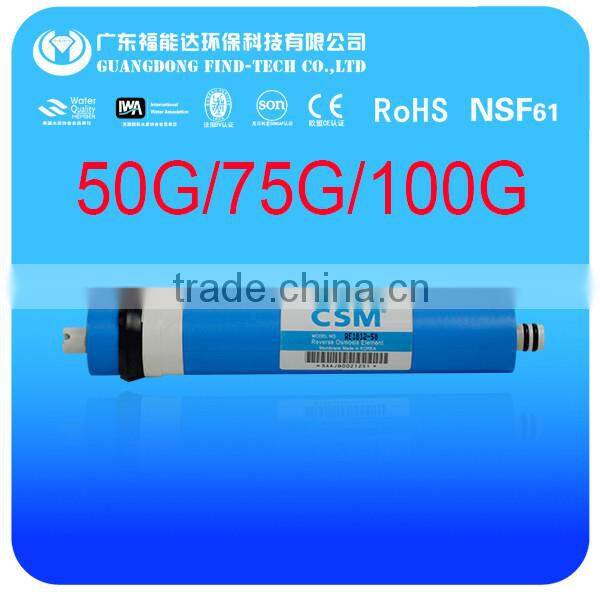

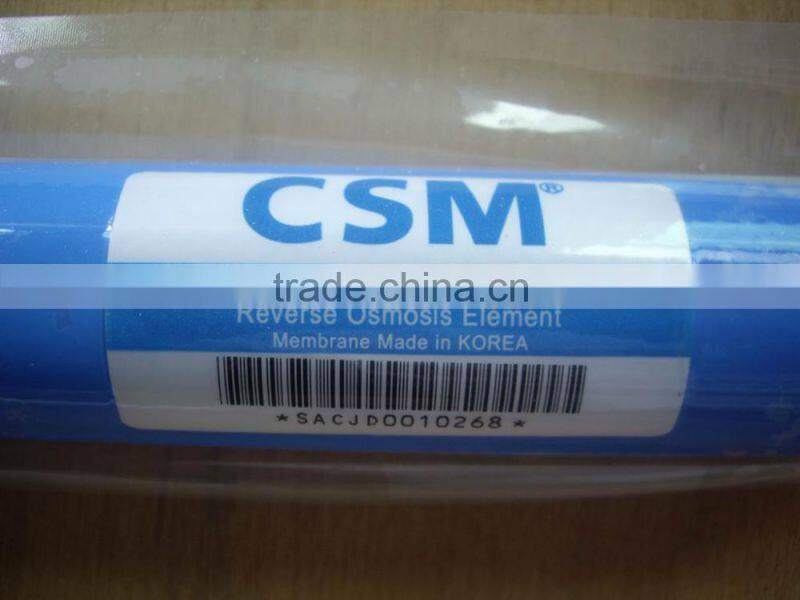

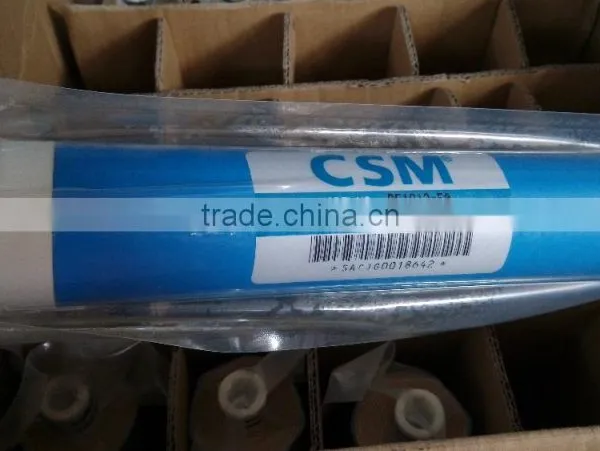

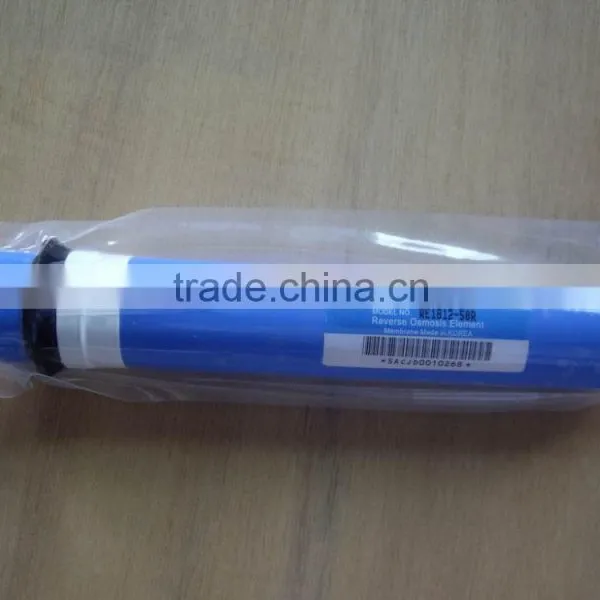

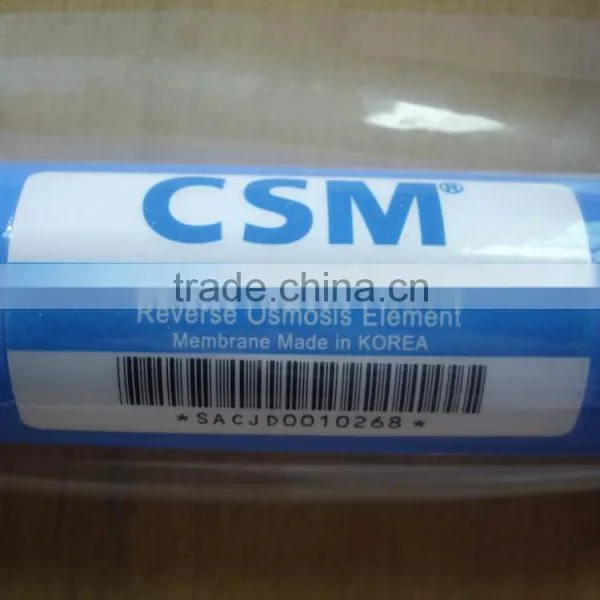

reverse osmosis membrane price pressure vessels SCR500-CSM50G
Product Description
Band :CSM
Flow rate:75G
These model names are tested and certified under NSF/ANSI standard 58, material
requirement only.
1.The stated product performance is based on data taken after 30 minutes of operation
at the following test conditions:
•200 mg/L NaCl solution at 60 psig (0.41MPa) applied pressure
•15% recovery
•77oF (25oC)
•pH 6.5–7.0
2.Dry type elements are vacuum leak tested using the San Diego Protocol.
3.Permeate flow rate for each element may vary but will be no more than 15%.

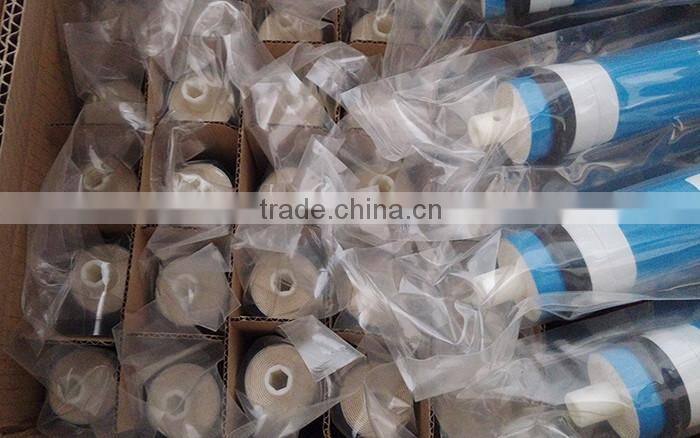

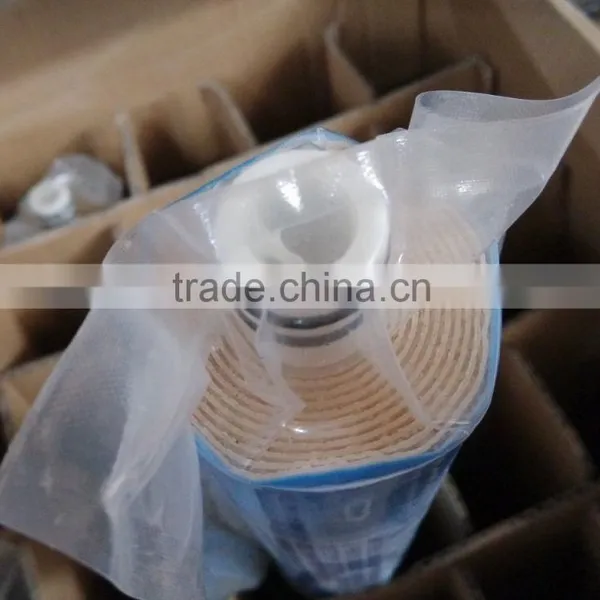

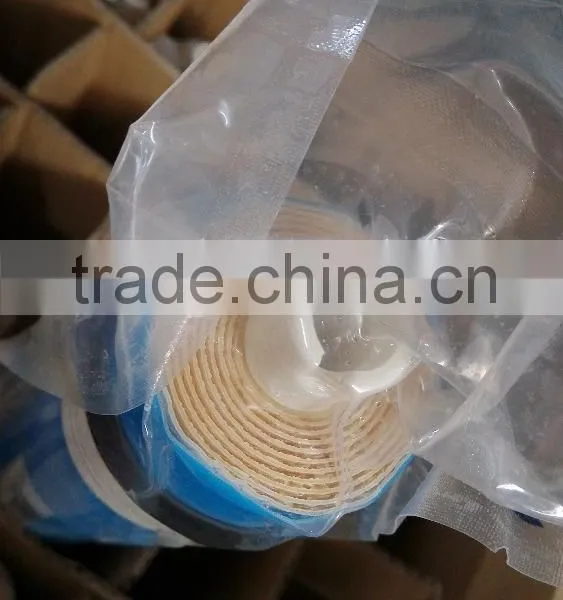

4.Dry elements are packaged in a polyethylene bag¤Wet elements are packaged in a polyethylene bag containing SB(4g/L) + HCl(0.51g/L) solution.
RESIDENTIAL
RO elements for residential use (1.8 inch diameter)
APPLICATION DATA:Operating Limits·
Max.Operating
Pressure 125psi (0.86MPa)·
Max.Feed
Flow Rate 2 gpm (0.45m3/hr)·
Max.Operating Temperature 113oF (45oC)·
Operating pH Range 2.0–11.0·
Max.Turbidity 1.0 NTU· Max. SDI (15 min) 5.0·
Max.Chlorine Concentration < 0.1 mg/L
The information provided in this document is solely for informative purposes. It is the user’s
responsibility to ensure the appropriate usage of this product. Woongjin Chemical assumes no obligation, liability or damages incurred for the misuse of the product or for the information provided in this document.This document does not express or impliesany warranty as to the merchantability or fitnessof the
products.
GENERAL
HANDLING PROCEDURES
Elements contained in the boxes must be kept dry at room temperature (7–32°C; 40–95°F)and should not be stored in direct sunlight. If the polyethylene bag is damaged, a new preservative solution (sodium bisulfite) must be added and air-tight sealedto preventdrying andbiological growth.
Permeate from the first hour of operation should be discarded to flush out the preservative solution.
Elements should beimmersed in a preservative solutionduring storage, shipping and system shutdowns to prevent biological growth and freezing. The standard storage solution contains 1% by weight sodium bisulfite or sodium metabisulfite (food grade). For short term storage (i.e.
one week or less) 1% by weight sodium metabisulfite solution is adequate for preventingbiological growth.
Keep elements moist at all times after initial wetting.
Only use chemicals compatible with the membrane elements and components. Use of such chemicals may void the element limited warranty.
Permeate pressure must always be equal or less than the feed/concentrate pressure. Damage caused by permeate back pressure voids the element limited warranty
CSM details'
Company Information
Company products
Packaging & Shipping
Trade Shows
Our company has rich experience in exporting water filter products to the global market , such as Ira , Egypt , .....
Products quality is guarenteed to get all the customers' trust ,to keep long business relationship !

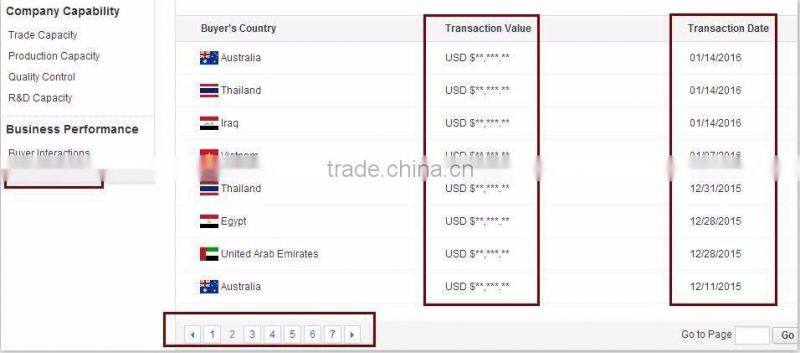

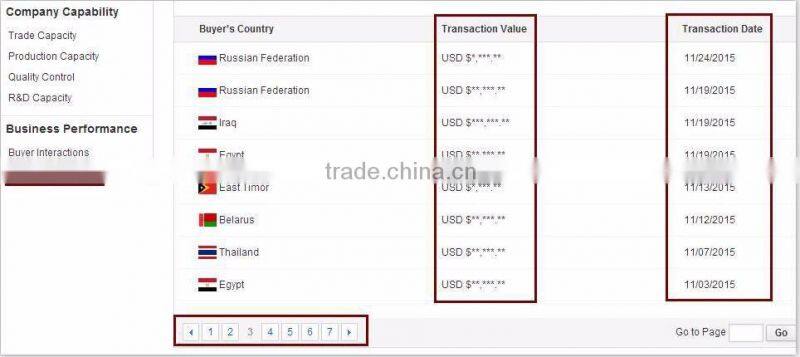

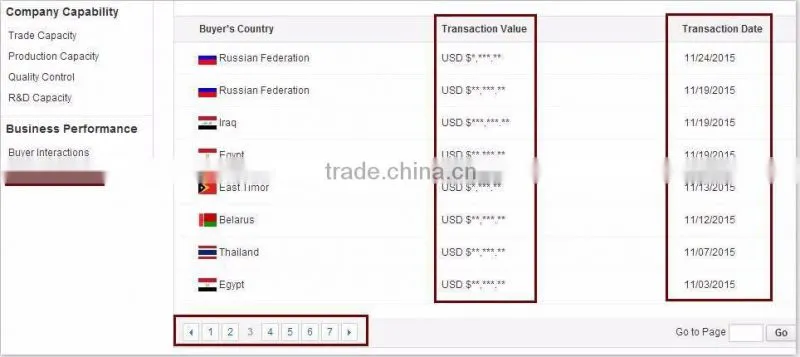

Here are some trading history record in last year ,for your reference .
