Home > Products > pulp making machine > paper machine Conveyor
paper machine Conveyor
- 6 Set / Sets per Month
- Qingdao
Product Details
Condition: | New | Type: | Slat Conveyor | Material: | Stainless Steel |
Material Feature: | Heat Resistant | Structure: | Conveyor System | Place of Origin: | Henan, China |
Brand Name: | Dingchen | Certification: | iso9001:2008 | After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
wooden boxes and straw rope
Product Description
Specifications

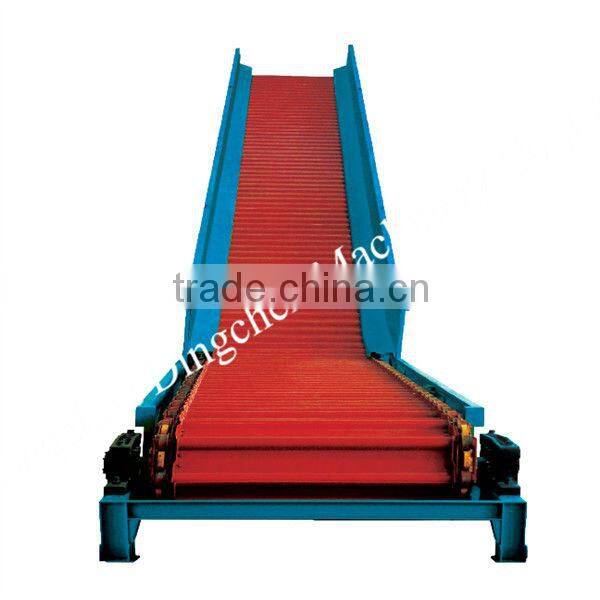

Chain conveyor
1.Conveying waste paper and pulp board,
2.Adjustable conveying speed,
3.Track-type operation
chain conveyor for paper making
Features:
Chain conveyor is used for conveying waste paper and pulp board to
the hydrapulper. The conveying
speed is adjustable. This type of chain conveyor is mainly used for
transporting all kinds of bulk, bundle-like
pulp and waste paper in the paper industry.
Track-type operation, smooth running, reliable, low friction coefficient,
small power consumption.
Reducer drive shaft coupling for the direct linking, making machine
under force more reasonable.
Application:
BFW series chain conveyer mainly used for transport waste paper such
as scattered or bundled paper pulp and waste paper plate.
The equipment has rational structure,it transmission by the chain and
driving the trough plate to move so that to transport the materials.
The advantage of this equipment are that it has high working capacity,
low power consumption, low abrade and reliable. Above all, it is the most
ideal equipment for waste paper transport.
Operation and maintenance:
1 Homogeneous charging, the maximum of feeding material should be
controlled in the range of stated.
2 It is not good to stop and start when it was fully loaded.
3 The tightness degree of haulage chain should be appropriate. Inspect
frequently and adjust it in time when it working.
4 Decelerator should be added lube after working 7-14 days, and exchange
the lube once 3-6 months depends on the different condition.
5 Each lubricating point should be added lubricant in time.
Main specification
width of chain plate(mm) | 1200 | 1400 | 1600 | 1800 | 2000 | 2200 | 2400 | 2600 |
capacity(m3/h) | 60-220 | 80-255 | 95-300 | 110-345 | 140-390 | 160-430 | 200-500 | 240-600 |
materials | paper pulp or waste paper plate | |||||||
max.limit of materials(mm) | 1000 | 1200 | 1600 | 1400 | 1800 | 2000 | 2200 | 2400 |
motor power(Kw) | 5.5 | 7.5 | 11 | 5 | 18.5 | 22-30 | 30-45 | 37-55 |
Company Profile
Zhengzhou Dingchen Machinery Co., Ltd., located in Central China, is a professional machinery manufacturer focusing on the R&D and production of paper making machines.
Our company has over 420 employees. We have passed ISO14001 International Authentication. Our products include paper making machines, parts and paper processing machines such as kraft paper machines, tissue paper machines, cultural paper machines, fiber separators, hydrapulpers, rewinders, napkin folders, tissue slitters and so on. They have been exported to more than 8 countries and regions, such as America, Russia, Brazil, Indonesia, Fiji, etc.
Relying on advanced technologies, sincere services and inexpensive products of high quality, we have won the recognition of international markets and clients.
