Hot! Multi-cylinder Mould and Multi-dryer Can Newsprint Paper/recycling Paper Machine With Better Price Ratio

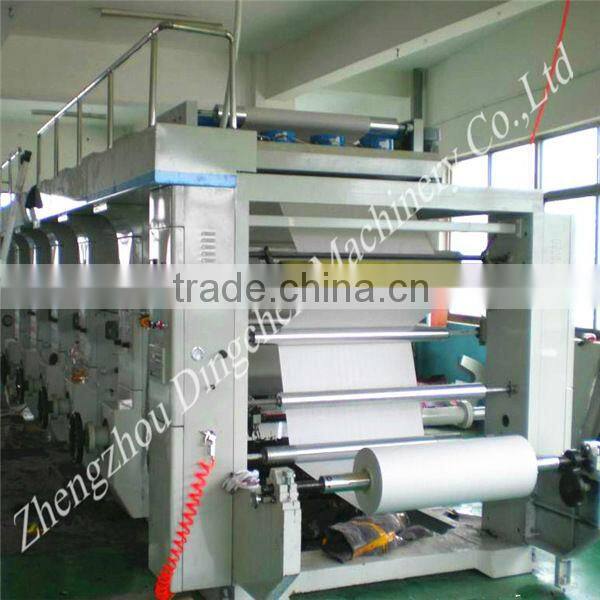

Hot! Multi-cylinder Mould and Multi-dryer Can Newsprint Paper/recycling Paper Machine With Better Price Ratio photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, writing paper machine
Computerized:
Yes
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Other, writing paper machine
Computerized Yes
Place of Origin Henan, China
Brand Name Dingchen
Certification ISO9001:2008
Warranty one year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Output paper:Writing paper, printing paper, newsprint paper, kraft paper.

Technical data:

Output paper

Writing paper, printing paper, newsprint paper, kraft paper.

Weight

50-200g/m2

Net paper width

3200mm

Rail gauge

4300mm

Working speed

350m/min

Dynamic balancing speed

500m/min

Driving speed

400m/min

Capacity

100T/D

Drives

AC frequency conversion speed regulator .

Processing transmission

Main frame of the equipment:

Part name

Equipment

Specification

Qty

Head-box section

Especially chose open type headbox, which comprises step diffuser,

perforaled roll, and so on.The step diffuser is Grade 3,which is

made of organic glass.The top and bottom lip are made of stainless

steel, and can be global and local regulation.

Fourdrinier  section

The length of fourdrinier table is 1800mm,and the stand is

welded with section steel, except the draw-out position with

aluminum alloy. Fourdrinier section comprises breast board

roll, forming board, slice, suction box, suction flat box, suction

couch, electric tightener, pneumatic corrector, cut squirt and so on.

Press part

Use suction feed paper leader, a series of vacuum press

and three series of straight-through press.

Dryer part

dryer can

Φ1500mm×3800mm

34

The arrangement of dryer cans are 6+6+ 6+8+ sizing machine+8,

adopt sealed gear drive, thin oil lubricating.

Drives and

control

AC frequency conversion speed regulator, processing

transmission, digital sealed ring control system.

Calender & winding part

Equipped with super calender and horizontal winding machine.

All the accessory equipment

Number

     Equipment

QTY





3200mm fourdrinier and multi-cylinder

 cultural paper making machine

1 set

    2.

3200mm winding machine

1 set

    3.

3200mm rewinding machine

1 set

    4.

3200mm calender

1 set

    5.

35m3 potcher

6 sets

    6.

Pulp pump(6″)

14 sets

    7.

Pulp pump(4″)

12 sets

    8.

Vertical pressure screen

4 sets

    9.

450 Double disks refiner

4 sets

10.

Decker thickener

4 sets

11.

Kamyr pressure filter

4 sets

12.

Sand separator pump

2 sets

13.

Sand cleaner

4 sets

14.

8m3 high consistency hydraulic pulper

3 sets

15.

Resin tank

6 sets

16.

Chemical mixing tank

4 sets

17.

The whole set of work bench

1 suite

18.

Φ1000Thruster

12 sets

 Supply of expendables:

Number

     Equipment

Qty

Price(RMB)



1

10T Boiler

1  set

1,200,000



2

Electric closet

8 sets

104,000



3

Control cubicle

2 set

240,000



4

All the motors and electrical appliance



520,000

 5



Polyester wire

10 pcs

150,000

 6



Felt

10 pcs

150,000

 7



Bleaching tower

2 set

120,000

 8



Waste water processing equipment

1 suite

3,600,000

  perfect service:

(1) technical consultation

(2)detailed design of factory

(3)installing and testing the whole production line;

(4)training engineers and workers;

(5)supplying spare part for long time;
