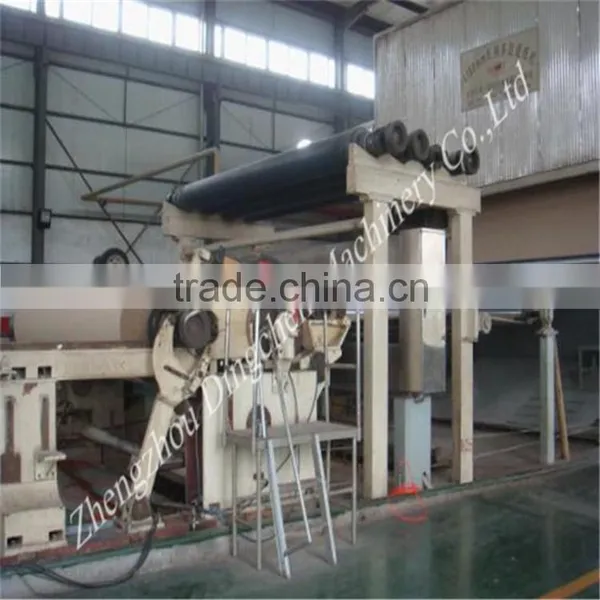

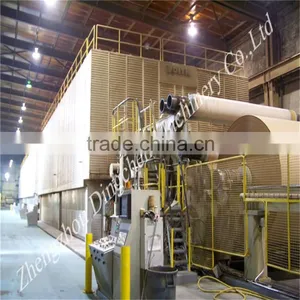

Automatic high speed 7 plys corrugated cardboard paperboard production line
Functions and Features
1.Automatic core feeding system, automatic log pusher after rewinding, then rewind the new log again.
2. Automatic edge-trimming, core feeding; auto edge trimming, glue spraying and sealing synchronously in one time. Leaving 10-18mm tail, easy to rewind again, so reducing shortcut waste and save the cost.
3. Adopts international advanced PLC programmable controlling technique, man-machine interface operation, data set and parametric fault shows on touch screen.
4. Adopts 4 pieces high Precision spiral knives, low noise, clear perforation, adopt gearbox to have bigger range.
5. Three horizontal type back stands, pneumatic loading system, with wide driving flat belts; each jumbo roll can be adjusted independently.
6.Embossment Unit: adopt point to point embossing rollers, making the two layers match well, the paper is soft and has clear patterns
7. Adopt jogging switches for wearing the paper, easy and safe to operate.
The Main Technical Parameters
Jumbo Roll Max Width |
1750mm (Other size can be specified) |
Jumbo Roll Diameter |
Φ1100mm |
Jumbo Roll Inner Diameter |
3inches(76.2mm) |
Finish Product Diameter |
Φ80-φ140mm |
Finish Product Inner Diameter |
φ38-φ48mm |
Perforation Distance |
100-150mm |
Production Speed |
0-180m/min |
Parameter Set |
HMI, Touch Screen |
Pneumatic System |
3HP Air Compressor, Minimum Pressure: 5kg/cm 2Pa(Provide by user) |
Total Power |
7.5-15KW(depends on model and configuration) |
Unwind Stands |
2 or 3 Stands |
Unwinding Transmission |
Frequency Stepless Speed Regulation |
Rewinding Unit |
With Core or Coreless |
Dimension |
7800X3000X1720mm |
Weight |
3500~4500kg |
Other Model
model |
1575 |
1760 |
2200 |
2500 |
2800 |
Max.parent roll width(mm) |
1750 |
2000 |
2150 |
2400 |
2700 |
Max.parent roll diameter |
Standard diameter1100mm unless otherwise specified |
||||
Qty of unwind stand |
3 stands (please specify when order) |
||||
core inner dia.of parent roll |
Standarddiameter3”(76.2mm) unless otherwise specified |
||||
Data setting |
HMI |
||||
Programming controller |
PLC |
||||
Operate speed |
0-160m/min |
||||
outer dia.of finished log |
diameter 90-135mm |
||||
core inner dia.of finished log |
diameter 25-50m |
||||
diameter of finished log control |
Electronic/Air control |
||||
Mechanical driving |
Driving by Stepless gear box |
||||
Air -system |
3HP air compressor, min. pressure 5kg/cm2pa ( provide by user) |
||||
Main driving |
Frequency conversion speed regulation 9KW 380V,50HZ |
||||
Embossing unit |
Two sets steel to rubber |
||||
Dimensions |
6x3x1.7 (length x width x height)(m) |
||||
weight |
3T |
||||
The process flowing chart:
Our service
| Per-sales service |
1) sales person, project manager, accountant staff 2) professional responsible teem: would be very fastly and exactly to send you offers |
| Online/sale service |
1) super and solid quality 2) fastly delivery 3) standard export package or as you demand |
| After-sale service |
1) repairing and maintenance if any problem occur in the warranty 2) any feedback of machine can be told us, and we will try our best to support you |
Other cooperation service |
1) technology knowledge share 2) honest to customers |
1.low cost :
- all the machine ,we make it ourself to reduce the cost of our customer.
2.Genuine product with excellent quality :
- we choose our material very strict,
- all the material come to our factory must pass the quality test
- substandard goods are returned to the supplier.
3. Engerneers available to serve oversea:
4. quick delivery:
- the company provide just in time delivery with its streamlined supply chain
st saving
- we take strong attention to every detail in the manufacturing process,
- the quality control in our factory is very strict,
- all defective semi-manufactures must be treated again or reject.
- all the machine must be checked out ,then deivered to our customer.
- all about that pushing up the price,
what we want to do is give our customer a good quality product with stable working and long lived.
We Zhengzhou Dingchen machinery company limited has a history more than 30 years in producing pulp and paper making machines.Our products include paper making machines,pulp making machine,parts and paper converting machines such as kraft paper machines,corrugated paper machines,tissue/toilet paper machines,office paper machines, newspaper machines,and so on.Our factory gathers and trains many essential technicians and management system to ensure all products meet the quality of ISO and update constantly!
Our machines have been exported to many countries such as Uzbekistan,Pakistan,Syria,Jordan, Armenia,Yemen,Egypt,Sudan,Angola,Uganda,Nigeria,Tanzania,Gana,Brazil,Paraguay,Bangladesh, Fiji,Myanmar and so on. We win high praise from clients at home and abroad for our sophisticated craft, high quality and excellent function.
1.What information do you need,if i need to get a quotation from you?
Answer:Output paper type;Capacity(tons/24hours);Output paper weight(gram/m2);Raw material.
2.How long is guarantee period for paper making machine?
Answer:12 months after formal operational
3.What is the delivery time if we make a order from you?
Answer:Usually,the delivery time for smaller machines is 30-45 days after receiving deposit,but for bigger
machines,it will be longer to make sure the equipment quality.
4.What is your payment terms?
Answer:(1). T/T(telegraphic transfer)30% as deposit,and 70%balance paid before shipment.
(2). 30%T/T + 70%L/C at sight. (3). 100%L/C at sight.
5.How is the quality of your equipment?
Answer:
(1).We have been specializing in pulp and paper making machines for 40 years.We have enough practice/experience.To keep and develop our good reputation,we couldn't allow the unqualified machine,as well as you.
(2).We have a technician team of engineers and experts.They mainly research the advanced paper making
technology,to make sure our machines’ design are newest.
(3). The machines will be pre-installed at workshop before delivery.
6.Why your price is higher than other similar supplier?
Answer:Different quality,different price.Our price is matched with our high quality.Compared with other suppliers
based on the same quality,our price is lower.But anyway,to show our sincerity,we will give you some discount.
