Hot Sale Made in China cylinder moulds multi-dryer cardboard paper machine
♥ Description
We can according your demand provide you a suitable produce scheme
Technical parameter:
1. Raw material: recycled paper, virgin pulp, waste paper
2. Output paper: High & medium grade of toilet paper ,tissue paper, napkin paper
3. Output weight: 15—40g/m2
4. Width of jumbo roll: 1880-2000mm
5. Wire width: 2250mm
6. Capacity: 5-6T/D
7. Working speed: 120-150m/min
8. Rail gauge: 3000mm
9. Design type: Box type,Back – stirring type
10. Pulp formation type: pressure mould former
11. Design Standards: CNS Export equipment
12. Dryer: Wire-releasing part: ≥18-24%
Squeezing-mill releasing part: ≥38-40%
Manufactured paper dryness: 90-92%
13. Calculated running speed in a day: 22.5 hours
14. Calculated outputting rate: 97%
15. Calculated finished product rate: 95%
The main equipment structure:
1.Cylinder part: φ1500mm×2250mm stainless steel wire mould(1pc), Cylinder mould pressure forming machine (1 set),φ450mm×2250mm couch roll(1 pc),rubber HSD38°±2.
2. Dryer part: φ2500mm×2250mm Dryer ( 1 pc ), φ500mm×2250mm carrier roller( 1 pc ), air-powered pressure device, rubber HSD 90°±2, there is double-layer exhaust hood on the dryer.
3. Winding part:φ1000mm×2250mm sweat cylinder (1pc),φ280mm×2250mm fly rubber roll( 1pc ).rubber HSD75°±2. Winding on the sweat cylinder. Equipped with the 250 speed reducer (1 set)
4. Drive and control part: adopting AC frequency conversion speed, drive step by step.
Paper making, pulping and auxiliary equipment list:
No. |
Item |
Type |
Quantity(set/s) |
Motor (kw) |
1 |
Toilet paper making machine |
1880mm |
1 |
10kw-4 |
2 |
Exhaust hood of the dryer can |
double layers |
1 |
|
3 |
Screw type ventilator |
φ850 |
1 |
2.2kw-4 |
4 |
Cylinder mould pressure forming machine |
1 |
||
5 |
Roots pump |
15 type |
1 |
15kw-4 |
6 |
Suction box |
2 |
||
7 |
High consistency hydraulic pulper |
3m3 |
1 |
22kw-6 |
8 |
high frequency vibrating screen |
1.8 |
1 |
3kw-4 |
9 |
Potcher |
35m3 |
2 |
4kw-4 |
10 |
Thruster |
700mm |
2 |
11kw-6 |
11 |
Double type pulp grinder |
380mm |
1 set |
37kw |
12 |
Centrifugal screen |
0.5 m2 |
1 set |
11kw-4 |
13 |
Sand cleaner |
606 |
1group |
|
14 |
Pulp pump |
4inch |
4 sets |
4kw-4 |
15 |
Pulp pump |
6inch |
2 sets |
7.5kw-4 |
16 |
Frequency conversion& synchronous control cubicle |
1 set |
|

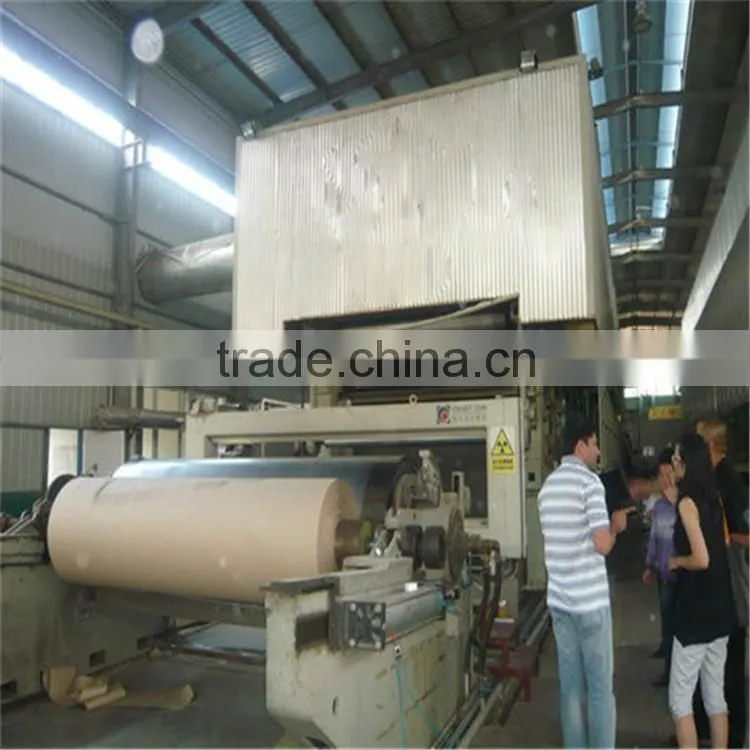

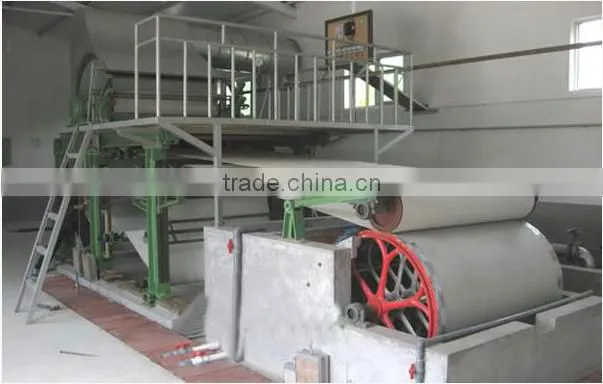

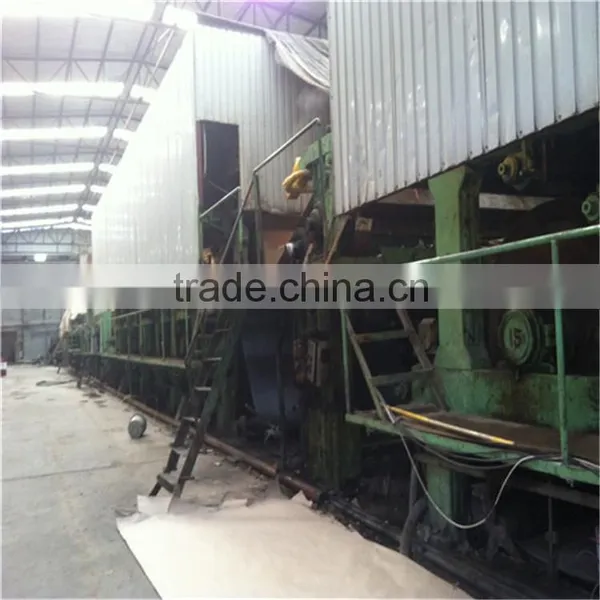

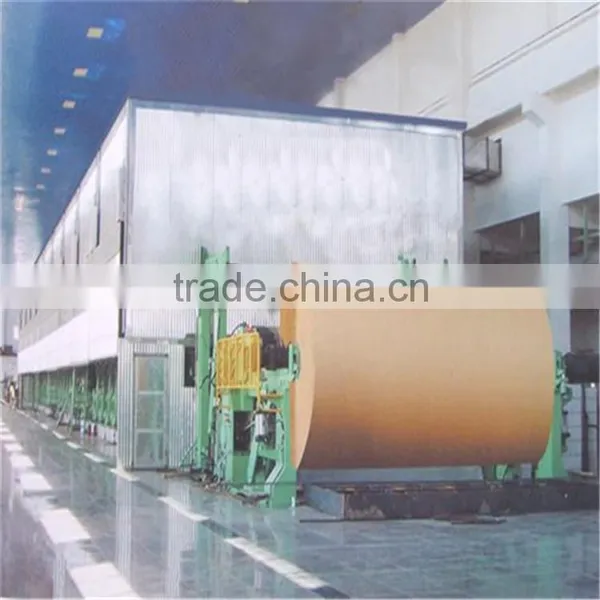

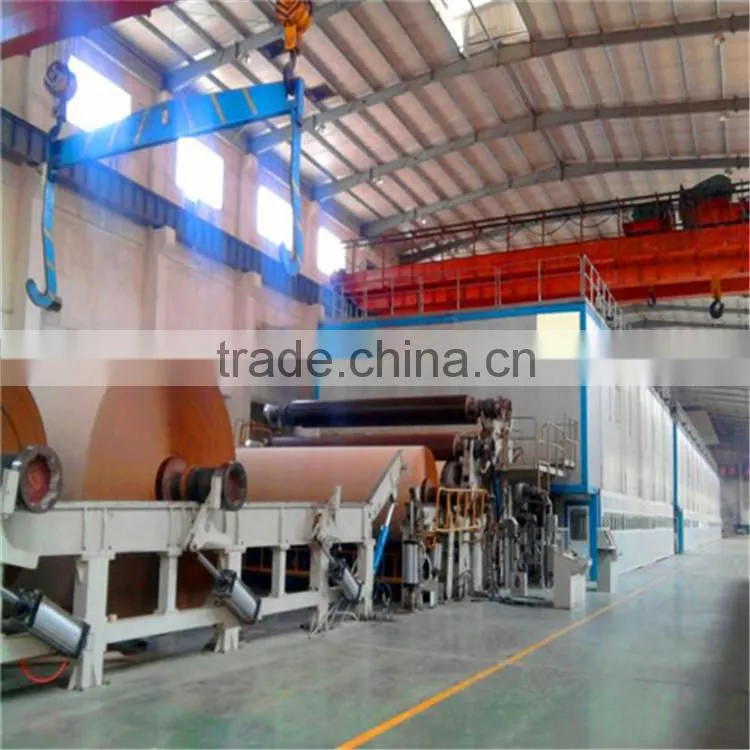

♣PICTURES
Features of Hot Sale Made in China cylinder moulds multi-dryer cardboard paper machine :
v This machine adopts PLC computer programming technology, stepless variable
speed pneumatic hydraulic brake, man-machine interface operation
v Easy operation, superior performance, can work continuously don't ask, don't break
v Spiral floating punch, low noise, the use of harmless broken paper, is a production and
processing all kinds of cheap health ,Rewinding paper ideal equipment
v This paper simple operation on board.Paper automatic positioning, the paper transport
mechanism are equipped with elastic adjusting device.
v Rewinding process evenly.Through compaction and adjusting device effectively solves
the tightness of rewinding uneven phenomenon.
v automatic roll, synchronous cutting paper, make continuous work
v spiral perforated knife adopt pneumatic floating control, cutting tool adjusting time, improve
efficiency, prolong the service life of blade.
v finished product number, diameter, weight, random adjustment, easy to operate.

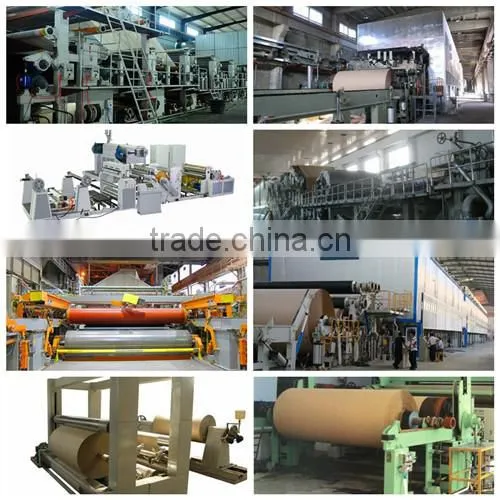

What we can provide:
1.787,1092,1575,1760,1880,2400,2640,2800,3200mm paper machine
2.paper egg tray machine
3.pulp making equipments
4.paper making equipments
5.paper processing equipments
6.all kinds of spare parts
Best Service:
1.We will provide you all technical consultation and make the drawing and proposal for you.
2.We will send technicians to install and test the machine for you.
3.We will train skilled workers for you.
4.We will supply best pre-sale, after-sales service for you.
♣packing
1. The dryer is packed with wood chips for protecting its surface 2. The large diameter roll is packed with wood chips. 3. The steel rolls are packed with plastic film and straw ropes 4. Speed reducer, oil station, and suction box, hydraulic station is packed with wooden box. 5. Electric control cabinet is packed with three-ply board box 6. Some parts are nude cargo
♣ABOUT FACTORY
We Zhengzhou Dingchen machinery company limited has a history more than 30 years in producing pulp and paper making machines.Our products include paper making machines,pulp making machine,parts and paper converting machines such as kraft paper machines,corrugated paper machines,tissue/toilet paper machines,office paper machines, newspaper machines,and so on.Our factory gathers and trains many essential technicians and management system to ensure all products meet the quality of ISO and update constantly!
Our machines have been exported to many countries such as Uzbekistan,Pakistan,Syria,Jordan, Armenia,Yemen,Egypt,Sudan,Angola,Uganda,Nigeria,Tanzania,Gana,Brazil,Paraguay,Bangladesh, Fiji,Myanmar and so on. We win high praise from clients at home and abroad for our sophisticated craft, high quality and excellent function.
1.What information do you need,if i need to get a quotation from you?
Answer:Output paper type;Capacity(tons/24hours);Output paper weight(gram/m2);Raw material.
2.How long is guarantee period for paper making machine?
Answer:12 months after formal operational
3.What is the delivery time if we make a order from you?
Answer:Usually,the delivery time for smaller machines is 30-45 days after receiving deposit,but for bigger
machines,it will be longer to make sure the equipment quality.
4.What is your payment terms?
Answer:(1). T/T(telegraphic transfer)30% as deposit,and 70%balance paid before shipment.
(2). 30%T/T + 70%L/C at sight. (3). 100%L/C at sight.
5.How is the quality of your equipment?
Answer(1).We have been specializing in pulp and paper making machines for 40 years.We have enough practice/experience.To keep and develop our good reputation,we couldn't allow the unqualified machine,as well as you.
(2).We have a technician team of engineers and experts.They mainly research the advanced paper making
technology,to make sure our machines’ design are newest.
(3). The machines will be pre-installed at workshop before delivery.
6.Why your price is higher than other similar supplier?
Answer:Different quality,different price.Our price is matched with our high quality.Compared with other suppliers
based on the same quality,our price is lower.But anyway,to show our sincerity,we will give you some discount.
♥ If you have any more question pls send email to me right now, We appreciated if you could provide more details about your machine. We can provide artwork design,
factory sourcing and logistic service !!!
