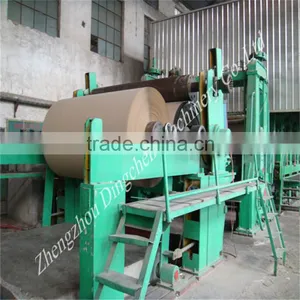

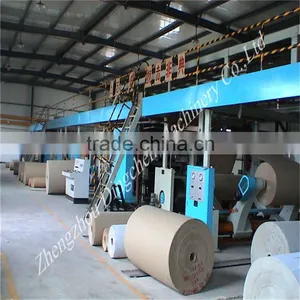

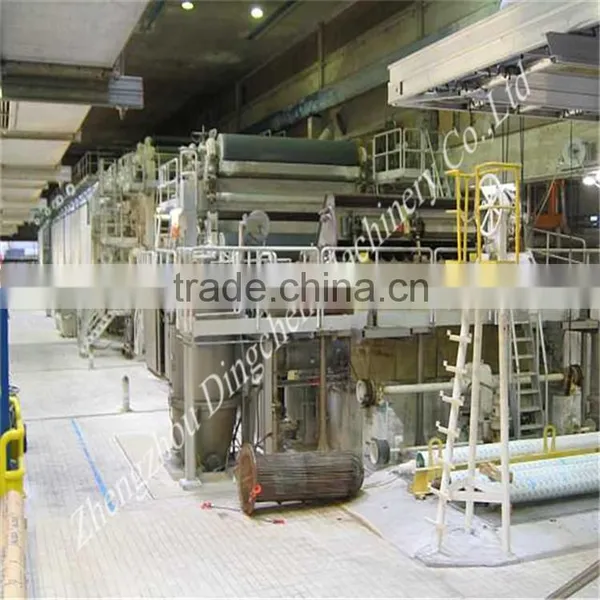

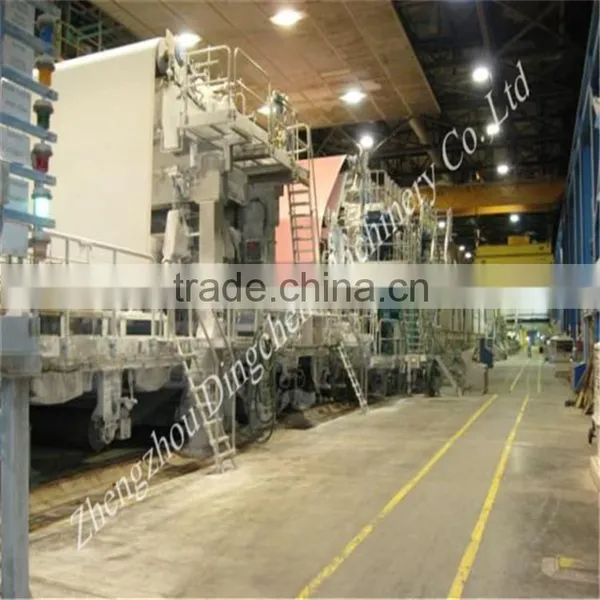

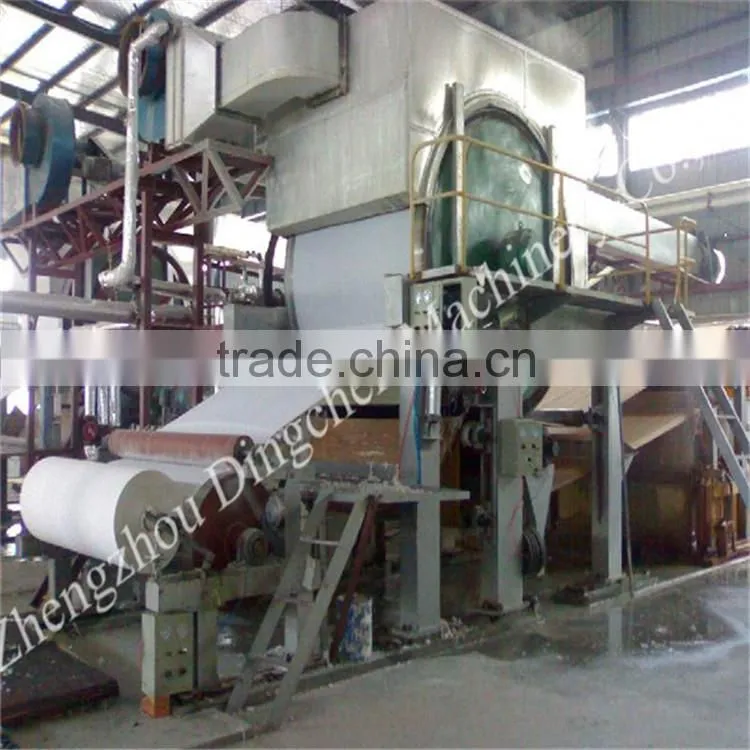

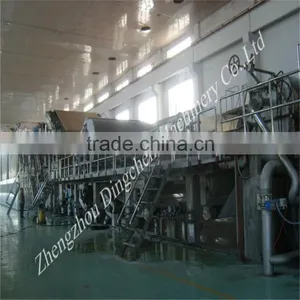

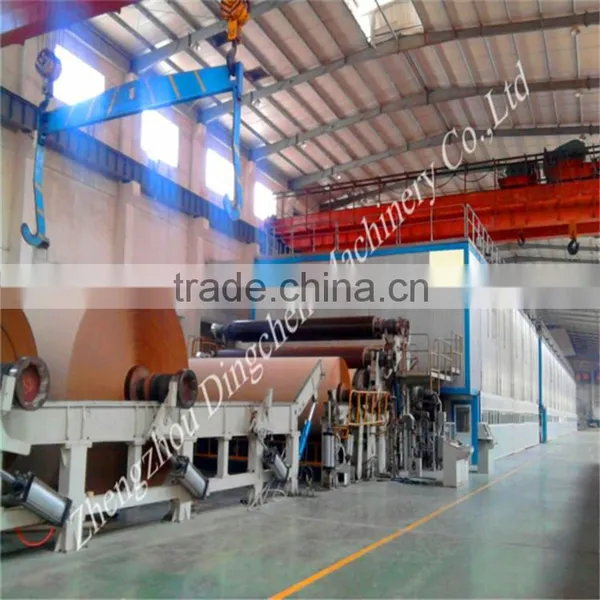

5 layer corrugated cardboard production line
Application:
It is mainly used for paper making (recycling paper making machine), such as kraft paper making, corrugated paper making and so on .we can offer the whole line of paper making.
Main frames of corrugate paper machine:
1.Cylinder part:Φ1500mm×2850mm cylinder mould 3sets;Φ450mm× 2850mm couch roll 3sets; reverse roll 1 set; rubber Share hardness is 38°C±2, pneumatic pressure device.
2.Press part: Φ600mm×2850mm stone roll 1 set ; Φ550mm×2850mm rubber roll 1 set; 500 speed reducer of drive part 1 set; scraper knife 1 group.
3.Dryer part: Φ2500mm×2850mm Dryer can 2 sets ; Φ1500mm×2850mm Dryer can 8 sets; Φ550mm×2850mm touch roll 2 sets; rubber Share hardness is 95°C±2, pneumatic pressure device
4. winding part:Cylinder type winding machine 1 set, Rewinding machine 1 set.
5. Driving & control part:AC frequency conversion speed, section drive.te Paper Machine / Kraft Paper Making /
Main equipments of corrugate paper machine: Machine / Kraft Paper prices
No. |
equipment |
QTY |
1 |
2400mm corrugate paper making machine |
1 set |
2 |
dryer can Exhaust hood |
1 set |
3 |
850axial flow ventilator |
3 sets |
4 |
1500mm Pressure type mesh vat |
1 set |
5 |
Model 15roots pump |
1 set |
6 |
suction box |
3 sets |
7 |
2400mm Winding machine |
1 set |
8 |
calender |
1 set |
9 |
Rewinding machine |
1 set |
10 |
5m3 high consistency Hydrapulper |
2 sets |
11 |
Fiber separator |
1 sets |
12 |
Pressure screen |
1 set |
13 |
2m2High frequency vibration screen |
2sets |
14 |
450Double disk pulp refiner |
3 sets |
15 |
12m2 Pulp thickener |
1 set |
16 |
Φ700mmThruster |
6 sets |
17 |
4 inch Pulp pump |
4 sets |
18 |
6 inch Pulp pump |
6 set |
19 |
8 inch Pulp pump |
4 set |
20 |
Japan Sanken Control cabinet |
1 set |
21 |
air pump cabinet |
1 set |
22 |
Work table |
1 set |

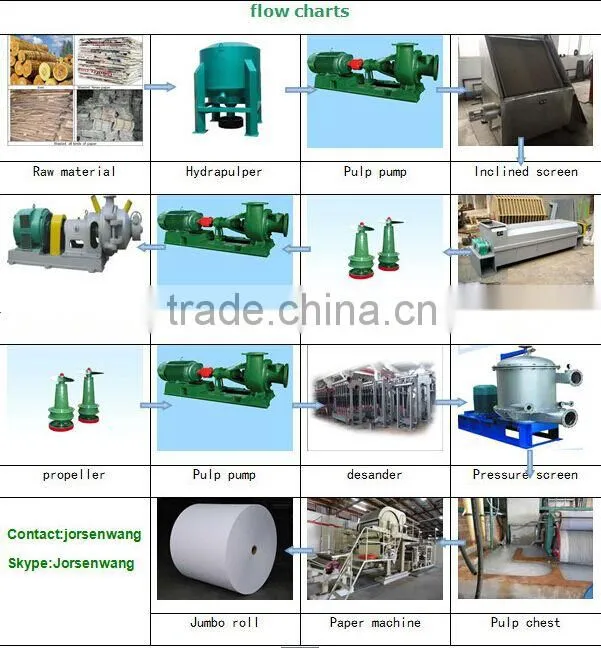

The process flowing chart:
Our service
1.low cost :
- all the machine ,we make it ourself to reduce the cost of our customer.
2.Genuine product with excellent quality :
- we choose our material very strict,
- all the material come to our factory must pass the quality test
- substandard goods are returned to the supplier.
3. Engerneers available to serve oversea:
4. quick delivery:
- the company provide just in time delivery with its streamlined supply chain
st saving
- we take strong attention to every detail in the manufacturing process,
- the quality control in our factory is very strict,
- all defective semi-manufactures must be treated again or reject.
- all the machine must be checked out ,then deivered to our customer.
- all about that pushing up the price,
what we want to do is give our customer a good quality product with stable working and long lived.
We Zhengzhou Dingchen machinery company limited has a history more than 30 years in producing pulp and paper making machines.Our products include paper making machines,pulp making machine,parts and paper converting machines such as kraft paper machines,corrugated paper machines,tissue/toilet paper machines,office paper machines, newspaper machines,and so on.Our factory gathers and trains many essential technicians and management system to ensure all products meet the quality of ISO and update constantly!
Our machines have been exported to many countries such as Uzbekistan,Pakistan,Syria,Jordan, Armenia,Yemen,Egypt,Sudan,Angola,Uganda,Nigeria,Tanzania,Gana,Brazil,Paraguay,Bangladesh, Fiji,Myanmar and so on. We win high praise from clients at home and abroad for our sophisticated craft, high quality and excellent function.
1.What information do you need,if i need to get a quotation from you?
Answer:Output paper type;Capacity(tons/24hours);Output paper weight(gram/m2);Raw material.
2.How long is guarantee period for paper making machine?
Answer:12 months after formal operational
3.What is the delivery time if we make a order from you?
Answer:Usually,the delivery time for smaller machines is 30-45 days after receiving deposit,but for bigger
machines,it will be longer to make sure the equipment quality.
4.What is your payment terms?
Answer:(1). T/T(telegraphic transfer)30% as deposit,and 70%balance paid before shipment.
(2). 30%T/T + 70%L/C at sight. (3). 100%L/C at sight.
5.How is the quality of your equipment?
Answer:
(1).We have been specializing in pulp and paper making machines for 40 years.We have enough practice/experience.To keep and develop our good reputation,we couldn't allow the unqualified machine,as well as you.
(2).We have a technician team of engineers and experts.They mainly research the advanced paper making
technology,to make sure our machines’ design are newest.
(3). The machines will be pre-installed at workshop before delivery.
6.Why your price is higher than other similar supplier?
Answer:Different quality,different price.Our price is matched with our high quality.Compared with other suppliers
based on the same quality,our price is lower.But anyway,to show our sincerity,we will give you some discount.
