Rectangle 12V-24V LED Digital Battery State Charge Indicator Meter gauge

Specifications

Charge Indicator Meter
Low cost and small size
Wide operating voltage and temperature range
Solid state electronics
Quartz

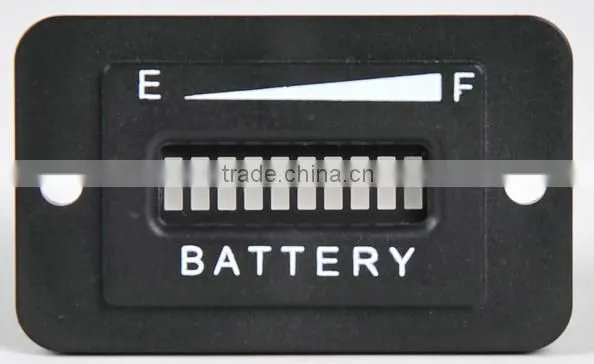

Rectangle 12V-24V LED Digital Battery State Charge Indicator Meter  gauge





Item Feature

• High reliability
• Low cost and small size
• Lower operating current
• Wide operating voltage and temperature range
• Solid state electronics
• Quartz crystal

Item Parameter

• Display: 10-bar LED indicates the battery state of discharge.
• Terminals: Max. 3; 3/16”-spades
• Mounting: U-shape bracket
• Panel Cutout (mm): 37x25mm
• Operating Temperature: -40°C to +85°C
• Storage Temperature: -50°C to +90°C
• Humidity: 95% RH (Non Condensing) at 38°C
• Operating voltage: 12V, 24V, 12/24V; 36V; 48V
• Battery indicating range can be customized (e.g. 2.04Vpc at full, 1.73Vpc at empty).
• EEPROM memory



Item Function Description



For use on any equipment where the battery status is important. It is specifically designed for battery power equipment to monitor the charge status of the battery or batteries.





Item Dimesion













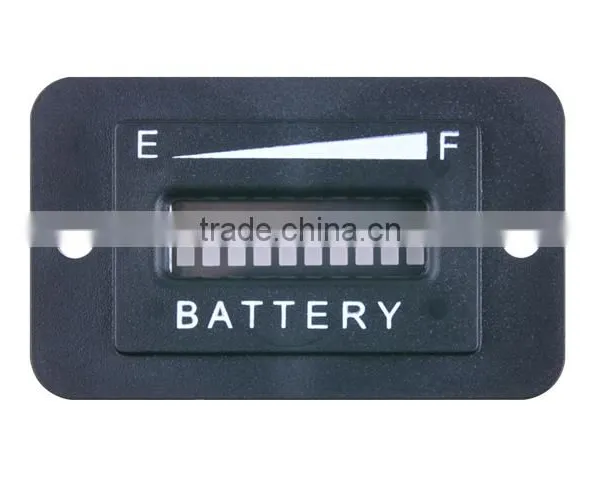

Item Photos
