Introduction
Richuan vertical Axis 240V 5KW Wind Generators generate electricity and charge into storage battery group. Through the multi-voltages power supply system, the electricity can be changed into DC and AC used for illumination, home appliances, communication devices and electric tools.
Feature
- Self starting in low wind
- Low rate of rotation, 40rpm to produce full power
- Produces full rated power at lower wind speed of 10m/s
- Low noise and vibration, no be affected by turbulence
- Capture wind from any direction, no limit on terrain, low requirement on mast height and floor space
- Simple module structure, easy for installation and maintenance
- Birds friendly
Parameters
| Generator | |
| Rated power | 5000w |
| Max power | 5500w |
| Start-up wind speed | 3m/s |
| Rated wind speed | 10m/s |
| Rated torque | 1193.625NM |
| Working wind speed | 3-25m/s |
| Rotor diameter | 4m |
| Security wind speed | 45m/s |
| Rated RPM | 40 |
| Rated voltage | 240v |
| Generator type | permanent magnet |
| Working temperature | -50-120°c |
| Speed regulation and protection | yawing + electromagnetic brake + manual brake |
| Blades and tower | |
| Blade material | reinforced fiber glass |
| Blade length & Qty | (4.5*0.7)×5 |
| Tower type | free standing tower/guy cable tower |
| Tower heght | 8m |
| Others | |
| Weight of top section | 120kg |
| Controller rated voltage | 240v |
| Suggested battery bcapacity | 12V100AH 20pcs |
Control system
| Hybrid wind solar controller | Inverter |
|
Rated Wind Input Power:5kW Rated PV Input Power:1.5kW Rated Battery Voltage :216VDC Floating Charge Voltage:252VDC Control Mode:PWM Display Method:LCD Display Parameter:Battery Voltage, Charging Current, state parameter Cooling Method:Fan Protection Type: Solar panel reverse-charge protection,Solar panel reverse-connect protection,Battery reverse-connect protection,Battery open circuit protection,wind turbine automatic brake and Manual brake protection Operation Ambient Temperature:-45~70°C Operation Altitude:≤4000m Operation Ambient Humidity:-45~+75°C/35~85%RH,no condensing Size(W×H×D)mm:(Dump load box)820×250×485 (Control box) 440×210×380 Weight(KG):(Dumpload box)25.5 (Control box)10 |
Rated Output Capacity:5kW Rated Battery Voltage:216VDC Over Voltage Point:306VDC Over Voltage Recovery Point:297VDC Under Voltage Point:189VDC Under Voltage Recovery Point:216VDC No Load Loss:0.12A Output Waveform:Pure Sine Wave Display Method:LCD Display Parameter:Battery Voltage, Output Voltage, State Parameter Cooling Method:Fan Rated Output Voltage:110/120/220/230/240 VAC Total Harmonic Distortion:≤4% Output Frequency:50/60 Hz±0.05Hz Dynamic Response:5% Overload Ability:120% one minute,150% 10 seconds Inverting Efficiency:Max. 90% Noise(1m): ≤40dB Dielectric Strength:1500VAC, one minute Protection Type:Battery over voltage protection,Battery under voltage protection,Battery reverse-connect protection,Output over load protection,Output short circuit protection,Over temperature protection Operation Ambient Temperature:-45~70°C Operation Altitude:≤4000m Operation Ambient Humidity:0~90%,no condensing Size(W×H×D)mm:600×260×600 Weight(KG):38.5 |

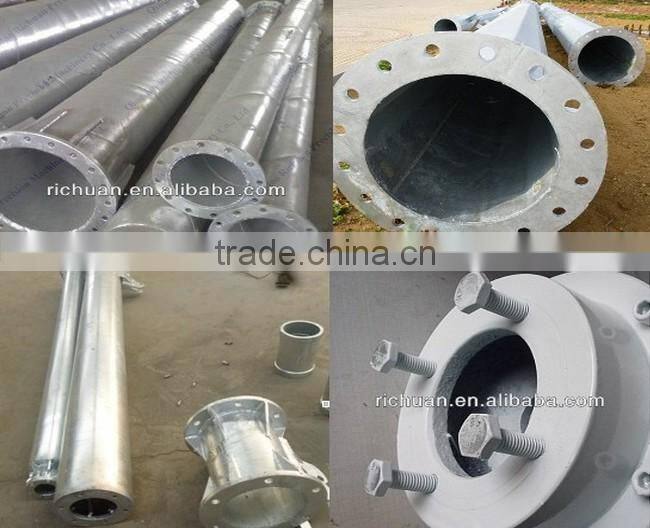

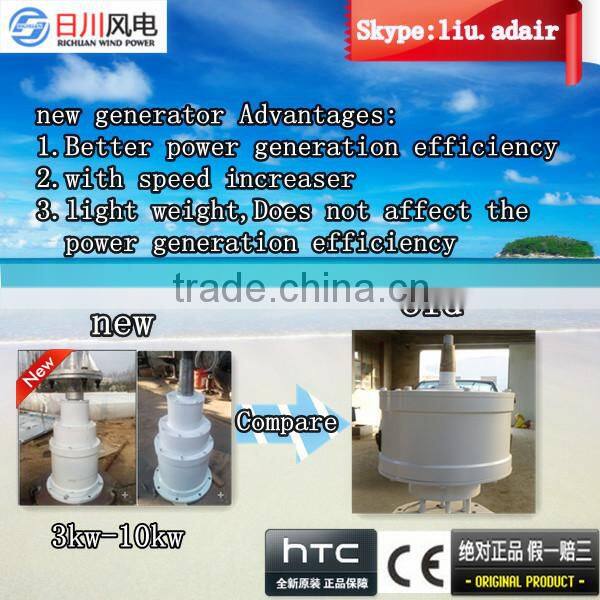

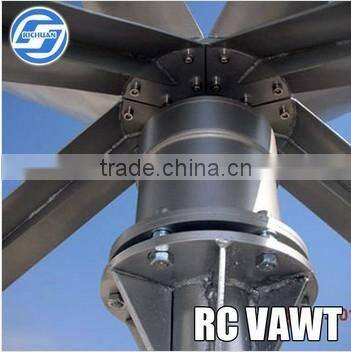

photos for reference
Provided customized solution.
One-stop purcashing service
Quickly response for customer question within 24 hours
Provide free spare parts during warranty period
Online technical support
OEM
