Vertical wind turbine 5kw unique design for wind generator home use 240v off-grid
1.Product Parameters and Features
| Power | 600W | 1000W | 2000W | 3KW | 5KW | 10KW | 20KW |
| Blade diameter (m) | 1.5 | 1.8 | 2.1 | 4 | 4 | 6.0 | 7.0 |
| Rated Rotated speed(r/m) | 150 | 100 | 100 | 45 | 40 | 20 | 20 |
| Rated wind speed (m/s) | 10 | 10 | 11 | 11 | 12 | 12 | 13 |
| Rated power(w) | 600 | 1000 | 2000 | 3000 | 5000 | 10000 | 20000 |
| Max power(w) | 700 | 1500 | 2500 | 3500 | 5500 | 12000 | 25000 |
| Output voltage(v) | 24 | 48 | 96 | 120 | 216 | 216 | 360 |
| Start up wind speed(m/s) | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Operating wind speed(m/s) | 3-25 | 3-25 | 3-25 | 3-25 | 3-25 | 3-25 | 3-25 |
| Security wind speed(m/s) | 40 | 40 | 40 | 40 | 40 | 40 | 40 |
| Height of tower (m) | 6 | 6 | 6 | 8 | 8 | 10 | 12 |
| Weight of top section (kg) | 130 | 190 | 250 | 440 | 580 | 700 | 1000 |
| Inverter Parameter | DC24V→user's local voltage & frequency |
DC48V→user's local voltage & frequency |
DC96V→user's local voltage & frequency |
DC120V→user's local voltage & freque |
DC216V→user's local voltage & freque |
DC216V→user's local voltage & freque |
DC360V→user's local voltage & freque |
| Tower pole type(mm) | Guy cable tower / Free stand tower | ||||||
| Capacity and quantity of battery(reference) | 12V150AH 2pcs | 12V150AH 4pcs | 12V150AH 8pcs | 12V150AH 10pcs | 12V150AH 18pcs | 12V200AH 18pcs | 12V200AH 30pcs |
| can supply power for | Refrigerator, washer,waterpump, tv,lighting, electric fan, charger |
Refrigerator, washer, waterpump,tv, lighting, electric fan, charger |
Refrigerator, washer, waterpump,tv, lighting, electric fan, charger |
Refrigerator, washer, waterpump,tv, lighting, electric fan, charger, air condition |
Refrigerator, washer, waterpump,tv, lighting, electric fan, charger, air condition |
Refrigerator, washer, waterpump, tv,lighting, electric fan, charger, air condition, small village |
Refrigerator, washer, waterpump, tv,lighting, electric fan, charger, air condition, small village |
1.Low starting torque, low start wind speed.
2.Low speed permanent magnet generator.
3.No vibration & low noise.
4.All of our products confirm to CE .
5.Reliable wind power system by multifunction controller.
6.PWM constant voltage recharge function provides stable output.
7.Power optimization, higher efficient transformation from wind power into electricity.
8.On-grid or Off-grid wind power system optional.
9.2-year warranty for generator and 18-20 years service life.
10.Electronic brake and manual brake, optional.
11.High efficiency and Low mechanical resistance energy loss.
12.Special sealed wind turbines, moisture, sand and water proof.

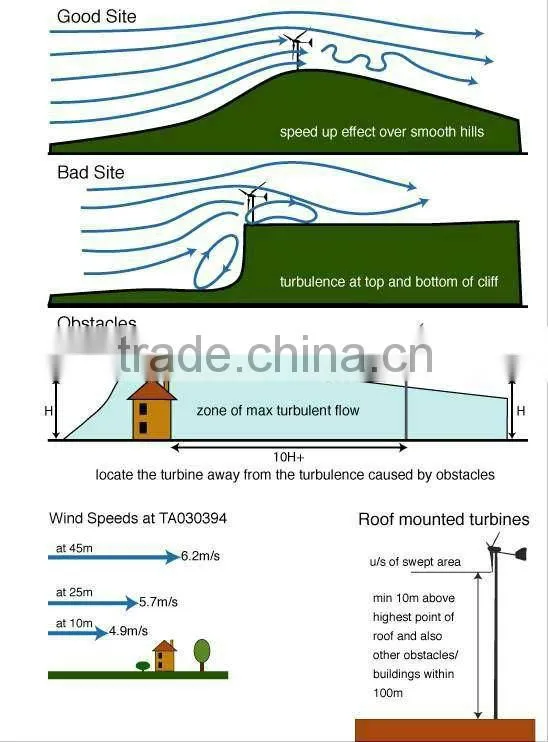

2.Site Choosing
3.Notes
a. Tower type and tower height can be changed as per your request.
b. Working voltage can be special requested.
c. For the details,please feel free to contact us.
High quality and competitive price guarantee us a huge market all over the world , such as in Eastern Asia , Europe , North America ,South America and Middle East .

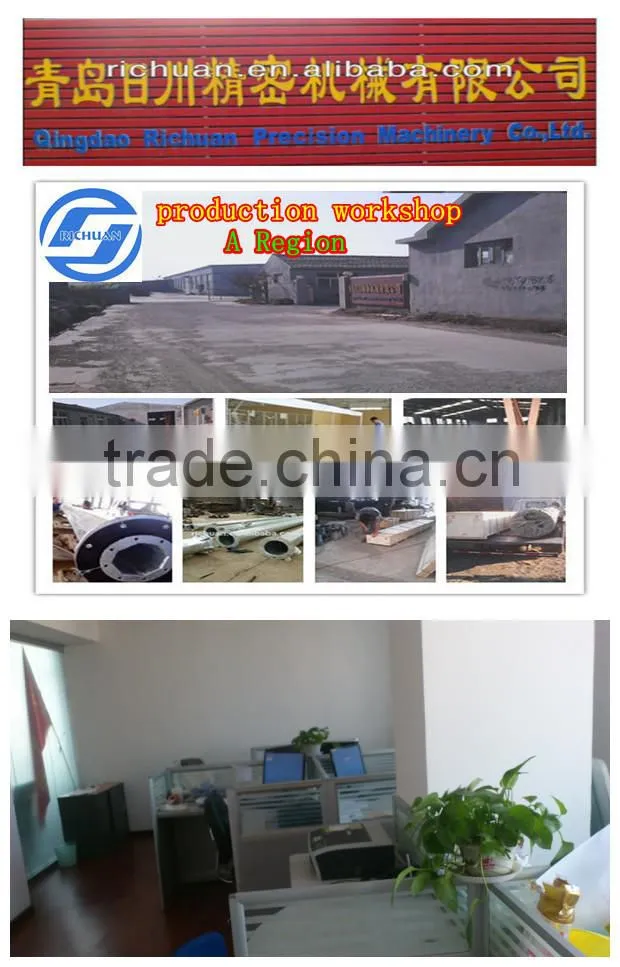

4. Pictures for Your Reference
