Copper/Aluminum Core PVC Insulated PVC Sheathed Wire BV/BVRBVVB

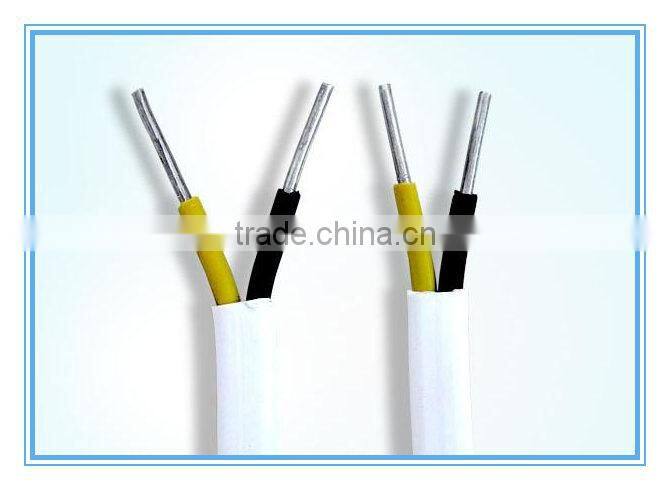

Copper/Aluminum Core PVC Insulated PVC Sheathed Wire BV/BVRBVVB photo-1
Copper/Aluminum Core PVC Insulated PVC Sheathed Wire BV/BVRBVVB photo-2
US$ 0.25 - 8.5 MOQ: 3000 Meters
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
QUANLAI
Model Number:
BVVB/BV/BVR
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Shanghai, China
Brand Name QUANLAI
Model Number BVVB/BV/BVR
Type Insulated
Application Overhead
Conductor Material Copper
Conductor Type Solid
Insulation Material PVC



 1.Application

     The PVC Insulated Wires belong to the series of laying wires, which are mainly suitable for laying at the fixed places. They are widely used as connectors of driving, lighting, electric equipment, instrument and telecommunication equipment with rated voltage up to 450/750V. Part of the plastic insulated wires are used at the equipment with AC rated voltage up to 300/300V.



2. Information

(1).Standard: GB5023, which is equivalent to IEC227

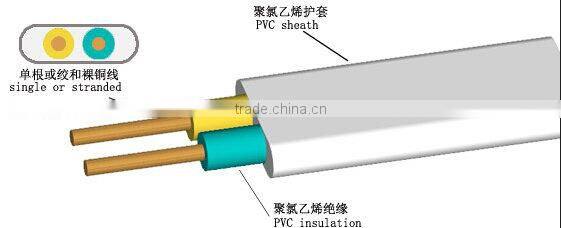

(2)Conductor: bare/tinned copper,or Aluminum.

(2).Insulation:  PVC rated at 70°C

(3).Color Code:red,orange,yellow,yellow-green,blue,purple,gray,white or as your requirement

(4).Outer sheath: PVC tapes ST2 to IEC.

(5).Package: Ploy Bag, Paper Box, Plastic Spool

(6).OEM:can print your logo or brand name on cable



3. Technical Parameter

Nominal seacation(mm²)

Type

Max   Outer Dia



(mm)

Resistance at 20°c



(Ω/km)

Min Insulation

resistance at 70°c

(Ω/km)



2*0.75



2*1/0.97



4.6*7.1



24.5



0.012



2*1.0



2*1/1.13



4.8*7.4



18.1



0.011



2*1.5



2*1/1.38



5.3*8.5



12.1



0.011



2*2.5



2*1/1.78



6.2*10.1



7.41



0.010



2*4(A)



2*1/2.25



6.7*11.1



4.61



0..085



2*4(B)



2*7/0.85



7.2*11.5



4.61



0.0080



2*6(A)



2*1/2.76



7.5*12.5



3.08



0.007



2*6(B)



2*7/1.04



8.0*13.0



3.08



0.0065



2*10



2*7/1.35



9.5*16.2



1.83



0.0065



3*0.75



3/1/0.97



4.6*9.6



24.5



0.012

 Copper/Aluminum Core PVC Insulated PVC Sheathed Wire BV/BVRBVVB

Copper/Aluminum Core PVC Insulated PVC Sheathed Wire BV/BVRBVVB





 Copper/Aluminum Core PVC Insulated PVC Sheathed Wire BV/BVRBVVB

         Copper/Aluminum Core PVC Insulated PVC Sheathed Wire BV/BVRBVVB



Copper/Aluminum Core PVC Insulated PVC Sheathed Wire BV/BVRBVVB
