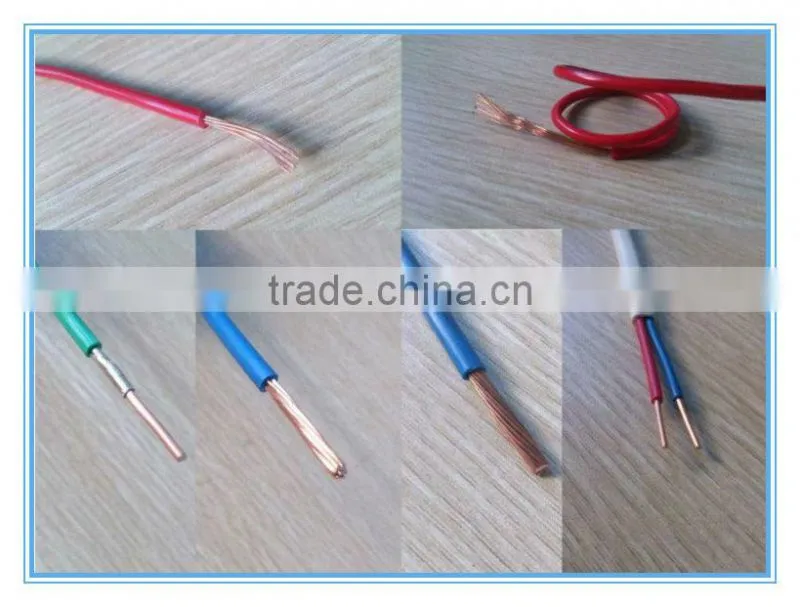

Help CenterHouse Using BV/BVRBVVB Wire
Related Products
1.Application
The PVC Insulated Wires belong to the series of laying wires, which are mainly suitable for laying at the fixed places. They are widely used as connectors of driving, lighting, electric equipment, instrument and telecommunication equipment with rated voltage up to 450/750V. Part of the plastic insulated wires are used at the equipment with AC rated voltage up to 300/300V.
2. Information
(1).Standard: GB5023, which is equivalent to IEC227

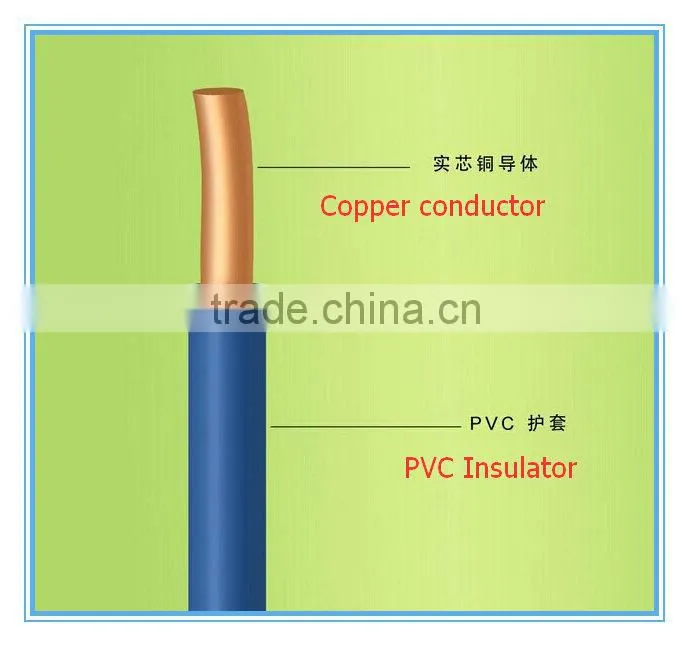

(2)Conductor: bare/tinned copper,or Aluminum.
(2).Insulation: PVC rated at 70°C
(3).Color Code:red,orange,yellow,yellow-green,blue,purple,gray,white or as your requirement
(4).Outer sheath: PVC tapes ST2 to IEC.
(5).Package: Ploy Bag, Paper Box, Plastic Spool
(6).OEM:can print your logo or brand name on cable
3. Technical Parameter
Nominal seacation(mm²) |
Type |
Max Outer Dia
(mm) |
Resistance at 20°c
(Ω/km) |
Min Insulation resistance at 70°c (Ω/km) |
|
2*0.75 |
2*1/0.97 |
4.6*7.1 |
24.5 |
0.012 |
|
2*1.0 |
2*1/1.13 |
4.8*7.4 |
18.1 |
0.011 |
|
2*1.5 |
2*1/1.38 |
5.3*8.5 |
12.1 |
0.011 |
|
2*2.5 |
2*1/1.78 |
6.2*10.1 |
7.41 |
0.010 |
|
2*4(A) |
2*1/2.25 |
6.7*11.1 |
4.61 |
0..085 |
|
2*4(B) |
2*7/0.85 |
7.2*11.5 |
4.61 |
0.0080 |
|
2*6(A) |
2*1/2.76 |
7.5*12.5 |
3.08 |
0.007 |
|
2*6(B) |
2*7/1.04 |
8.0*13.0 |
3.08 |
0.0065 |
|
2*10 |
2*7/1.35 |
9.5*16.2 |
1.83 |
0.0065 |
|
3*0.75 |
3/1/0.97 |
4.6*9.6 |
24.5 |
0.012 |
