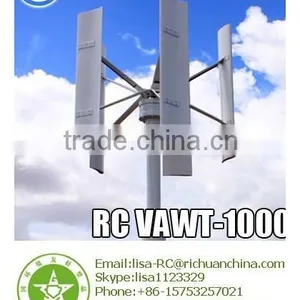

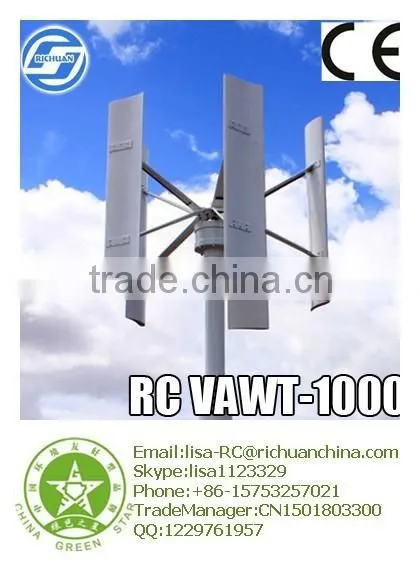

1KW Small Vertical Axis Wind Turbine system
Product Description:
1.Low rated torgue,low request to air conditions
2.High efficiency and high security
3.Designed for minimal maintenance and easy install
4.Light and good appearance
5.Maintenance-free
6. Power:300W;600W;1KW;2KW;3KW;5KW;10KW
7.CE certificate
8.The span life of our products is 20~25 years.
Advantages:
Qingdao Richuan Precision Machinery Co., Ltd. is a high-tech company located in Qngdao,engaged in the research,development,production,sales and service o small-and medium-scale wind turbines.
Our main products include horizontal axis and vertical axis wind turbines,off-grid and grid-connected,solar panels and wind-solar hybrid lighting systerms.These units are now widely used in agricultural and pastoral areas,mountainous areas,island,frontier defense sentry station,observatories and other areas with insufficient electricity and rich wind resources.
1. Technical Parameter
Power |
1000W |
Type of generator |
Permanent-magnet 240V AC |
Rotor diameter: |
1.8m |
Blade Material: |
FRP (Fiber glass reinforced)2.0m*0.22m*5pcs |
Rated rotor speed |
150r/min |
Rated speed |
10m/s |
Rated Power |
1000W |
Max Power |
1200w |
Start up wind speed |
3(m/s) |
Work speed |
3-25(m/s) |
Security wind speed |
40(m/s) |
Height of guy cable tower |
6m |
Top quality except tower |
73kg |
Output controller system |
Controller , Inverter |
2. Control Systerm:
3.Main Market:
High quality and competitive price guarantee us a huge market all over the world, such as in Eastern Asia, Europe, North America ,South America and Middle East.
4.Note:
1. Tower type and tower height can be changed as per your request.
2. Working voltage can be specially designed according to your request.
3. CE Approved

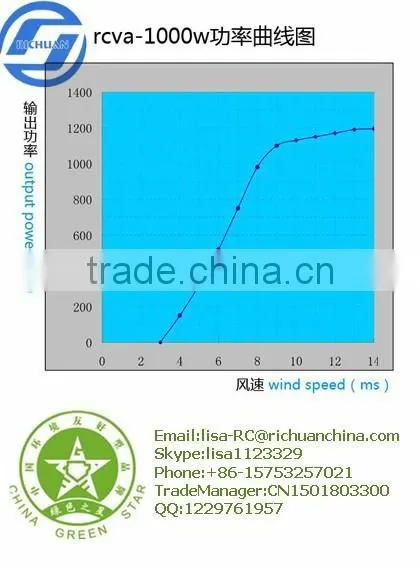

4. For the powrer curve and detail, please feel free to contact us.

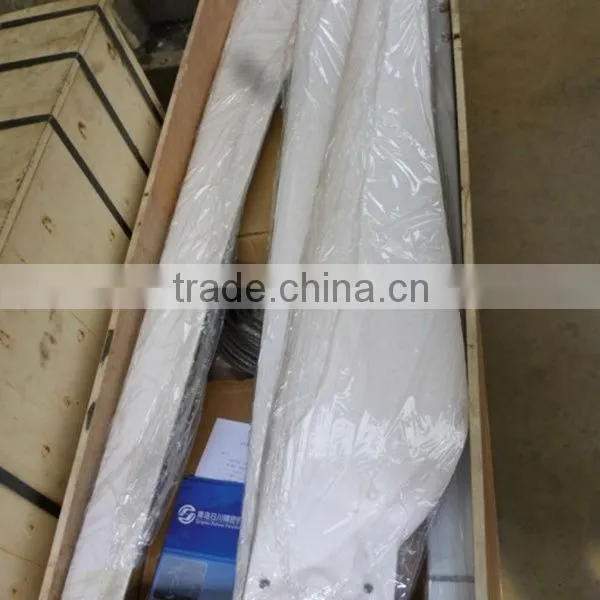

5.Pictures for your referance:
