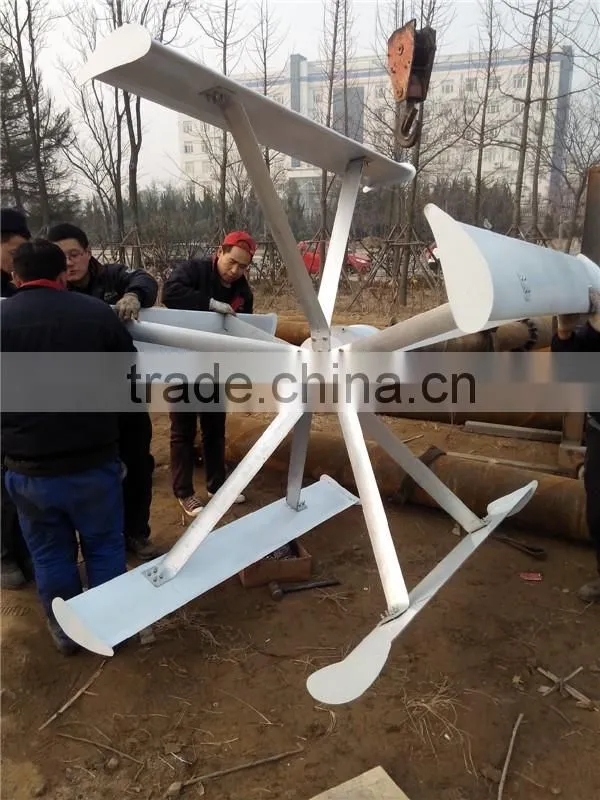

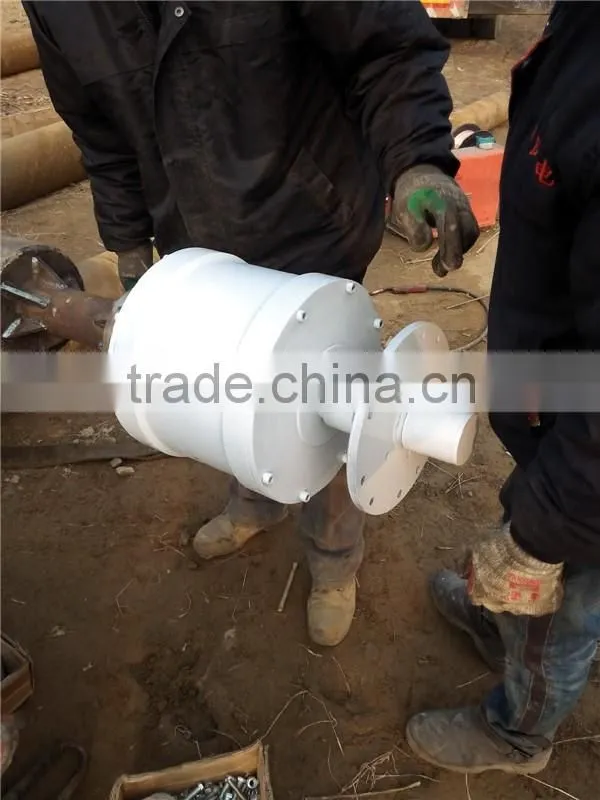

Help Center1000W Low RPM, PMG (Permanent Magnet Generator), Vertical Wind Generator
Related Products
-
1000W/180rpm Coreless Disc Type Generator; Low RPM PMG (Permanent Magnet Generator)US$ 935.00 - 1040.00MOQ: 1 Piece -
2000W Coreless Disc Type Generator; Low RPM PMG (Permanent Magnet Generator)US$ 1580.00 - 1700.00MOQ: 1 Piece
-
10000W Coreless Disc Type Generator; Low RPM PMG (Permanent Magnet Generator)US$ 6790.00 - 7300.00MOQ: 1 Piece
-
500W Coreless Disc Type Generator; Low RPM PMG (Permanent Magnet Generator) Quality ChoiceUS$ 630.00 - 700.00MOQ: 1 Piece
-
100W Coreless Disc Type Generator; Low RPM PMG (Permanent Magnet Generator) Quality ChoiceUS$ 218.00 - 240.00MOQ: 1 Piece
Product performance:
Technical Details | |
Rated Power(KW): |
1 |
Rated Speed(RPM): |
150 (Customized) |
Rated Torque(N*M): |
65 |
Rated Voltage(V): |
48 (Customized) |
Rated Current(A): |
12 |
Insulation Class: |
F |
Efficiency |
>92% |
PMG Collocation: |
Y Connection,Three Phase Three Wires, Alternator |
Service Life: |
More Than20 years |
Working Environment |
-50 Centigrade——60Centigrade |
Speed Range |
0-180rpm |
Mechanical Details | |
Mounting Means |
Vertical or Horizontal |
Weight(Kg) |
100 |
Start Torque(<N*M) |
2 |
Material Details | |
Shaft Material |
40Cr Steel with quenching and tempering Treatment |
Bearing |
C&U or for your order |
Shell Material |
Steel |
Winding Temperature Class |
150Centigrade |
Permanent Magnet Material |
Rare Earth NdFeB |
Permanent Magnet Material Temperature Class |
150Centigrade |
Core |
High Grade Cold Rolling Silicon Sheet 50WW470 |
Protection Grade |
IP54 |
Product advantages:
1.Unique waterproof, moisture-proof, anti-dust, anti-salt spray design
2.Low noise design
3.low rpm
4.Rpm & Voltage can be customized
5.One-year warranty

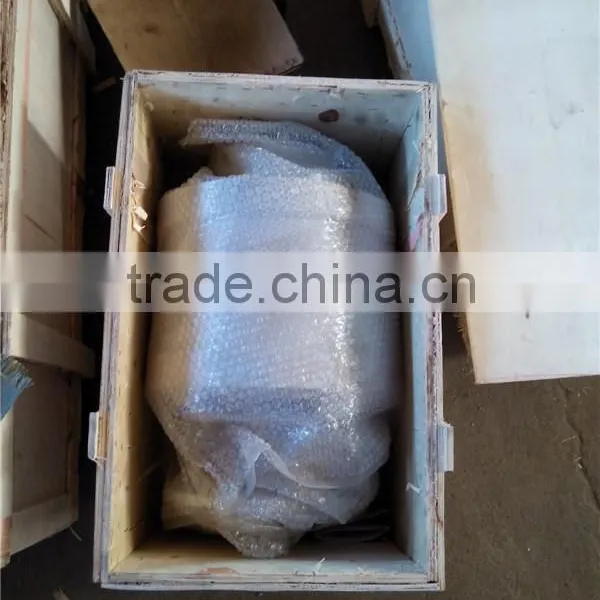

Transport and services:
Recommended mode of transport: Freight by sea
Because it is very heavy.
