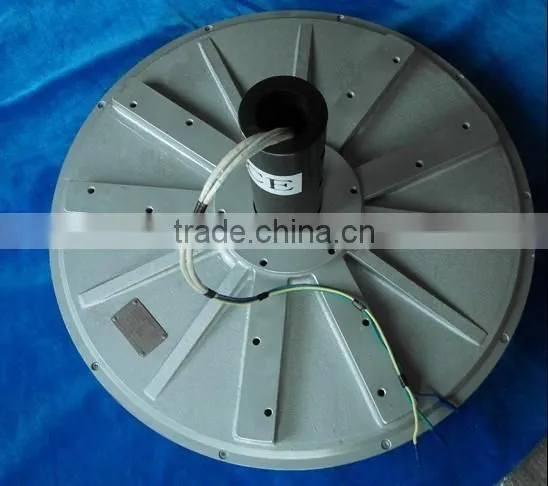

Help Center10000W Coreless Disc Type Generator; Low RPM PMG (Permanent Magnet Generator)
Related Products
-
500W Coreless Disc Type Generator; Low RPM PMG (Permanent Magnet Generator) Quality ChoiceUS$ 630.00 - 700.00MOQ: 1 Piece -
100W Coreless Disc Type Generator; Low RPM PMG (Permanent Magnet Generator) Quality ChoiceUS$ 218.00 - 240.00MOQ: 1 Piece
-
1000W/150rpm Coreless Disc Type Generator; Low RPM PMG (Permanent Magnet Generator)US$ 1065.00 - 1200.00MOQ: 1 Piece
-
5000W Coreless Disc Type Generator; Low RPM PMG (Permanent Magnet Generator)US$ 3600.00 - 4000.00MOQ: 1 Piece
-
Coreless Disc Type Generator; Low RPM PMG (Permanent Magnet Generator)US$ 140 - 7,300MOQ: 1 Piece
Product performance and advantages:
1. Generator Performance
Qingdao, Sichuan Precision Machinery Co., Ltd. disc hollow core low speed permanent magnet generator has a rated, low wind start, small size, low power consumption, light weight, compact, high efficiency and many other features.
1 No core, no hysteresis and cogging, low starting torque
2 No iron loss, high efficiency
3 Unique coreless winding technology design sophisticated precision coil
4 Using rare-earth permanent, multi-polar, small gap, high power density, high output power
5 Low-speed direct drive, no torque ripple
6 Compact, high-volume power ratio
7 Since no iron loss, low heat, temperature rise little
8 Simple turbine structure, easy to install
9 Brushless structure, maintenance-free
2. Use Range
10kw vertical axis wind turbines; diesel generator petrol class; hydroelectric
3. Performance parameters
No. |
parameters |
Unit |
Data |
1 |
Rated power |
KW |
10 |
2 |
Rated rotation |
RPM |
100 |
3 |
Rated voltage |
V |
400VAC(Customized) |
4 |
Rated current |
|
14.5 |
6 |
Efficiency |
|
>90% |
7 |
Resistance (line - line) |
|
- |
8 |
Winding form |
|
Y |
9 |
Insulation resistance |
|
1 Min(1500V DC) |
10 |
Leakage Level |
|
<5 ma |
11 |
Starting torque |
N/M |
<1 |
12 |
Phase |
|
Three-phase |
13 |
structure |
|
outer rotor |
14 |
stator |
|
Air-core coil |
15 |
rotor |
|
Rare earth permanent magnet |
16 |
Generator outer diameter |
mm |
770 |
17 |
Generators length |
mm |
590 |
18 |
Generator weight |
kg |
245 |
19 |
Shaft diameter |
mm |
85 |
20 |
Housing Material |
|
Aluminum Alloy |
21 |
Shaft material |
|
Carbon steel |
22 |
Shaft |
NSK |
Angular contact + deep groove ball |
