high quality Recycling tire machine for sale
- 1000 Set / Sets per Month
- qingdao
- T/T
Product Details
Condition: | New | Type: | Tire Machine | Tire Machine Type: | Tire Recycling Machine |
Place of Origin: | Shandong, China | Brand Name: | eenor | Model Number: | all various |
Certification: | bv | Warranty: | one year warranty | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Recycling tire machine for sale
Semi-auto Type Used Tyre Recycling Plant/Reclaimed Rubber Machine:
1. GENERAL:
This production line including main machine and accessorial equipment, it is used for recycling scrap-tire (steel tyre and textile tyre), the final product is rubber powder or reclaimed rubber.
2.Process flow:
tire ring cutter → steel wire extractor→ tire shredder→ rubber coarse crusher→ magnetic separator→ vibrating screen1→ fine rubber crusher→ vibrating screen2 → cyclone classifier→ storage bin→ rubber grinder →vibrating screen3→package.
the whole line has the following features:
1), iron/steel removing ratio>99.5%, fiber removing ratio>98%
2),compact structure ensure running safety, easy maintenance;
3),low energy consumption;
4),adopt automatic control system for whole line, reduce labor cost;
5),no sewage and waste gas discharge, environment protection.
6), available capacity range of our tire recycling lines at present: 400~3000kg/h
7), available finial rubber powder size: 30~120mesh.
8), adopts SIEMENS and Chinese famous brand electrical elements.
duction line include
3.This production line including the below:
No | Name | Model
| Number |
1 | Ring cutter | QQJ-20 | 1 |
2 | Strip cutter | QTJ-380 | 1 |
3 | Block cutter | QKJ-45 | 1 |
4 | Loop machine | YQJ-285 | 1 |
5 | Conveyor equipment | BSJ-1100, XSJ-600 | 2 |
*6 | Rubber crusher | XKP400/XKP450/XKP560 | 1 |
7 | Magnet separator | BCX-2, XCX-1 | 2 |
8 | vibrating screen | BS-8, XS-4 | 2 |
*9 | Fiber separator | XFJ-1100 | 1 |
10 | Rubber grinder | XMF-270/330/420 | 1 |
*6: there is 3 types of rubber crusher, you can choice the suitable one ,it is depend on the output!
#9 : you not need Granulator Grinder if your final rubber powder bigger than 30 mesh. but we need it if the powder less than 30 mesh and the number of this machine depend on the output!
1.Ring Cutter :
This machine mainly used to cut the sidewall of steel wire tire , and then to the next step of segmentation. First, put the tire on the platform, then rotate the hand wheel, the three claws will stick the inner tire firmly. Second, Starting power .Work platform will rotation , cutting tool according to need to cut tire slowly, step by step, until the tire side cut off.
Strips cutting machine can cut cycle machine to remove the wire tire sidewall cut into strips, and the width of the adjustable section. Two circular knives for special materials, hard and durable, can be used repeatedly grinding for no more than 1200 steel tires
Block Cutter is designed to cut car, truck and rear tractor tires. Range is up to 120 cm truck tires. The tire cutter adds flexibility to your total tire cutting system by providing you the opportunities of accepting tires up to 120 cm into your system.

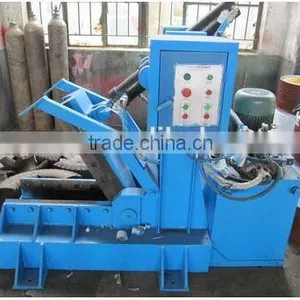

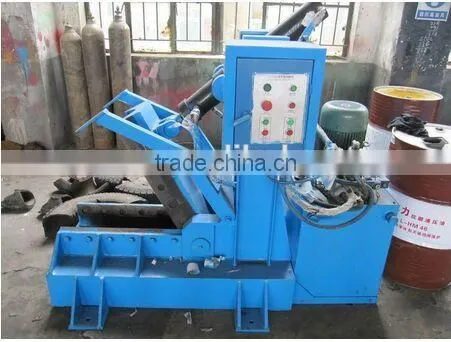

Wire Extractor
Tire wire drawer consists of motor, hydraulic system, drawing hook, drawing and main part, etc.
Item | Specification |
Motor power | 15 KW |
Linear speed of front roller | 15.5 m/min |
Ratio of speed | 1.1 |
Dimension | 1520*1150*12101mm |
Purpose:To Separate the steel ring from the rubber after 1 step |

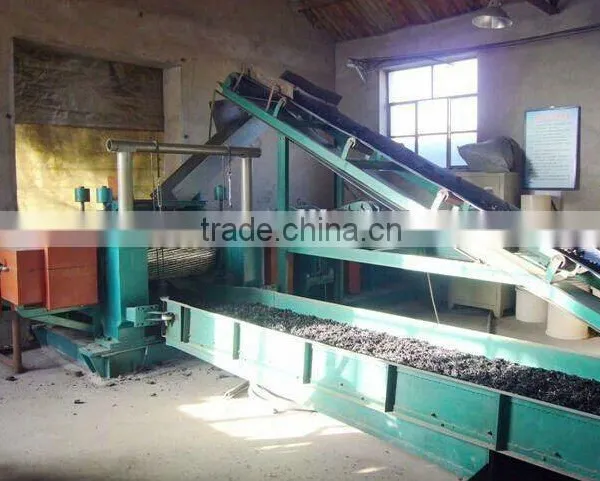

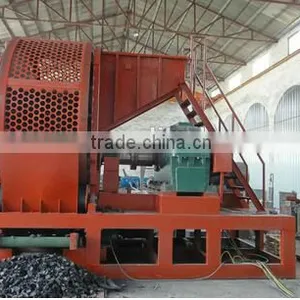

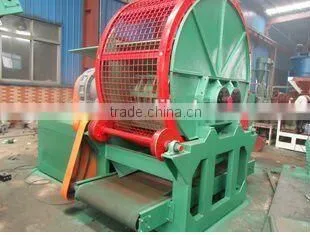

the host machine rubber crusher
the detail picture is below
this is the roller of rubber crusher
the use of rubber powder
