Specifications
Tyre recycling machine mainly produces all kinds of rubber powder from waste tyre and rubber.3).tyre recycling line passed the ISO9001.
4).the products are sold worldwide in more than 30 countries and regions.

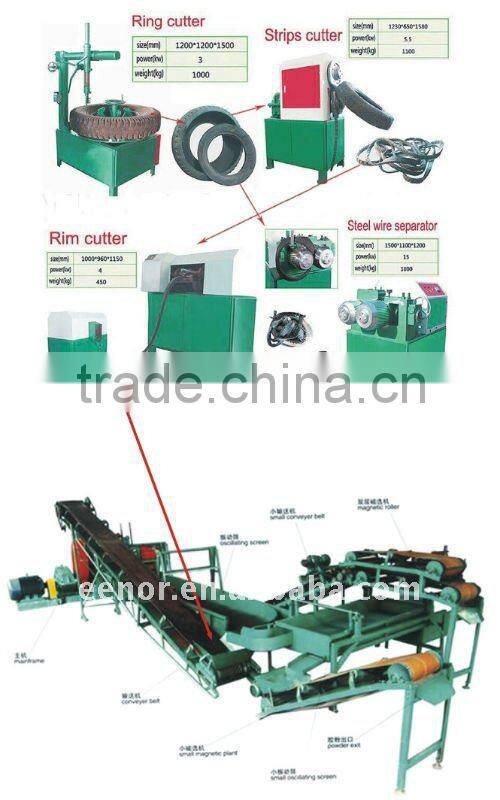

This production line including main machine and accessorial equipment, it is used for recycling scrap-tire.
| No. | Name | Model | Number |
| 1 | Ring cutter | QQJ-20 |
1 |
| 2 | Strip cutter | QTJ-380 |
1 |
| 3 | Block cutter | QKJ-45 |
1 |
| 4 | Loop machine | YQJ-285 |
1 |
| 5 | Conveyor equipment | 2 | |
| 6 | Rubber crusher | XKP400/XKP450/XKP560 |
1 |
| 7 | Magnetic separator | 2 | |
| 8 | Electric boult | 2 | |
| 9 | Granulator grinder | XFM330 |
|
| 10 | Rubber tile press | XLB-50T/550*550*4 |
This is for rubber tile |

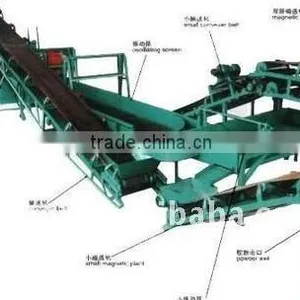

Rubber powder production line including main machine and accessorial equipment, it is used for recycling scrap-tire (steel tyre and textile tyre), the final product is rubber powder or reclaimed rubber.
The auxiliary equipment including decomposition equipment 4:
1, slitter, 2, 3, cutting machine, circle, 4, section circle machine.
Powder equipment (4) :
Sieve, 2, 3, magnetic separation conveyor, vibrating feeder, and 4, Steel meshes and magnetic separation of magnetic 2 (3) etc. Tao
Host (broken machines) mainly used for grinding tires, line tire, wire tire and other rubber products, make the powder, and achieve the fineness).
This machine is mainly has a base, frame, and roller, gear reducer, adjusting device, and the temperature adjusting device, safety switch and electric control system, etc.
Roller materials is alloyed iron, with high hardness and resistance, roller temperature adjusting device can roll in water to adjust the temperature to meet the technological requirements.
The design and installation of safety protection device:
1, electrical protection device: when the load is bigger, more parking equipment.
Two rollers, safe insurance device: when the equipment work stress instantly rollers, more safety insurance piece automatically fracture. In order to protect and other major parts rollers XKP (without this device) - the machine running more reliable, maintenance cost to a minimum.
3, the machine is equipped with brake brake, the event of an emergency, press brakes can instantly security button, which reduces the accident
