                                                                   GENERAL

This production line including main machine and accessorial equipment, it is used for producing ruwaste Tire Recycling Line/used Tyre Recycling Machine/scrap Tire Recycling plant for sale bber powder from waste tyre, and at the same time . Separate the steel wire and fiber.

1. This production line including the below machines:

 Remarks:

1. The above quotation is subject to buyer's confirmation within 30 days from the quotation date.

2. Warranty: one year quality guarantee

2. Analysis for output and Energy consumption

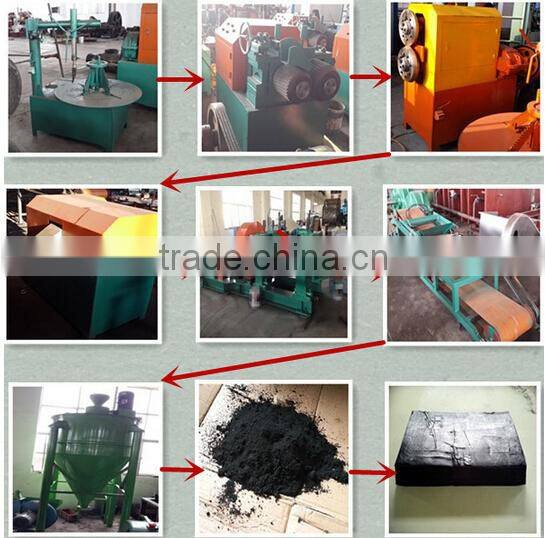

3.Process Flow:
Waste tire--Ring cutter --Strips cutter--Rim cutter --Crushing machine--Finished products.

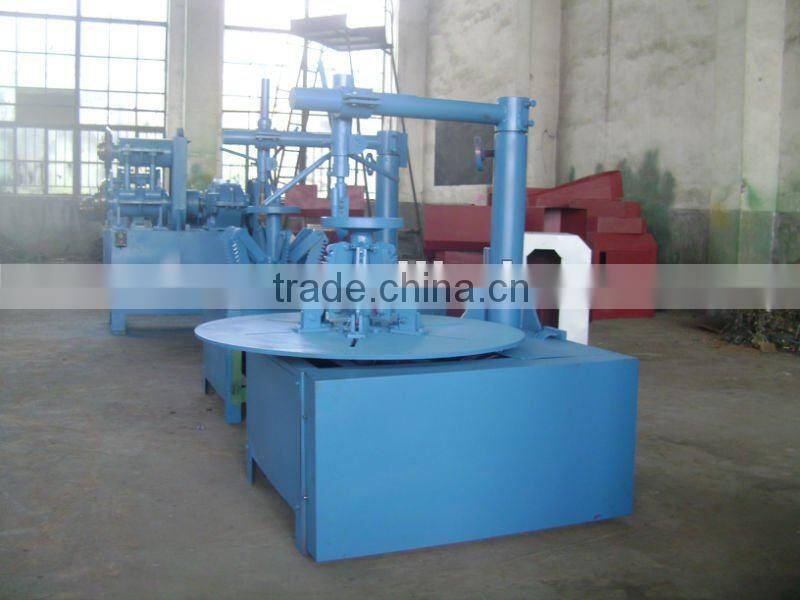

1.ring cutter

Usage:
1. It will cut the whole tire into sidewall of tire and inner circle.
2. Easy to operate and safety.

Structural principle:
1. The device consists of frame, motor, reducer, transmission, supporting frames, knife, tools and other components.
2. Knife is made from alloy and hard waer-resisting.
3. Motor and reducer connected by coupling, compact structure, simple operation, easy maintenance.
Function: It will separate the sidewall from the top of tire's connection, so that tire sidewall and the top are completely separated.

Item Specification Motor power 5.5 Speed of main screw 46.8 r/min MAX Diameter of tyre 1200mm Dimension 1100*900*1700mm

2.steel wire separator

Usage:

1. It will separate the steel and rubber from tire circle mouth parts.

Structural principle :

1. The device consists of frame, motor, reducer, transmission mechanism, communication and regulation of body roll and so on.

2. Ditch is made of alloy, roll, hard wear resistant, can be used repeatedly surfacing repair.

3. This equipment has simple structure, high efficiency, low energy consumption, strong practical, easy operation, and safet

Item Specification Motor power 15 KW Linear speed of front roller 15.5 m/min Ratio of speed 1.1 Dimension 1520*1150*12101 Purpose:To Separate the steel ring from the rubber after 1 step.

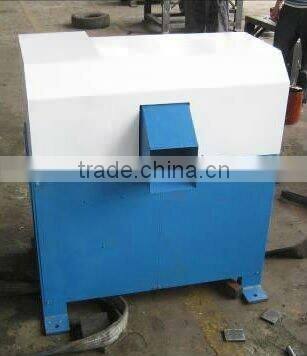

2.strips cutter

Usage :

1. It can cut all kind of tires, rubber sheets into strips.

Structural principle:

1. This equipment mainly consists of two blades, motor and reducer, frame and transmission mechanism etc.

2. Knife with special materials, hard wear-resisting, can relapse grinding use.

3. This equipment shear force, low energy consumption, uses a low speed, easy operation, safety.

Name Parameter Motor Power 5.5 Disc Diameter 380 Rotate Speed 18.4 Dimension 1290*870*1550 Purpose: To cut the old tyre intostrip

3.rim cutter

Function: 1. It will cut sidewall into wide of strips is 3-5 cm, and tire circle reserved. Rim cutter:

Usage: 1. It will cut the 3-5cm strips into 3.5cm tire block.

Structural principle :

1. The device consists of frame, motor, transmission mechanism, balance equipment, two move knives and a fixed knife, and the compression gear etc.

2. Knife is made from alloy, hard wear resistant, can be used after repeatedly grinding.

 3. Uniform speed of the device, shear force, low energy consumption, easy operation and safety.

Item Specification motor power 11kw Speed of main screw 420 r/min Out diameter of cutter 200mm Dimension 1130*830*1100 Purpose: To Cut the strip into block

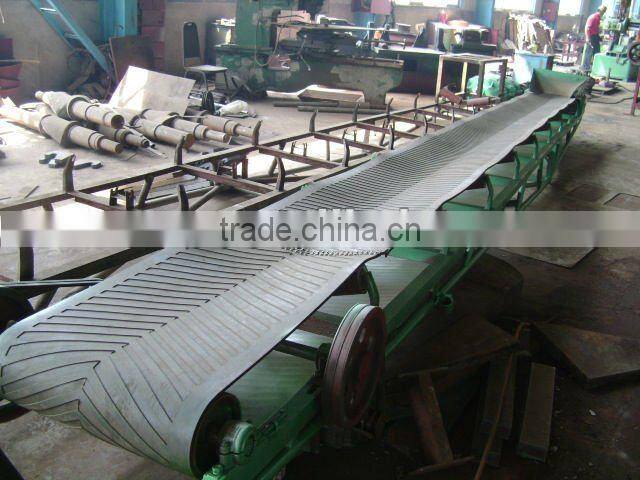

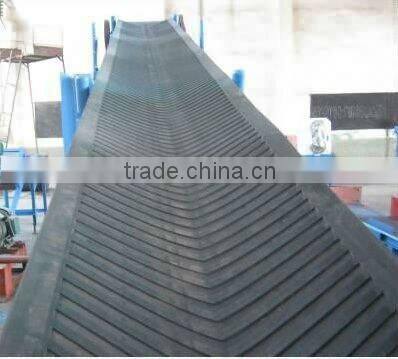

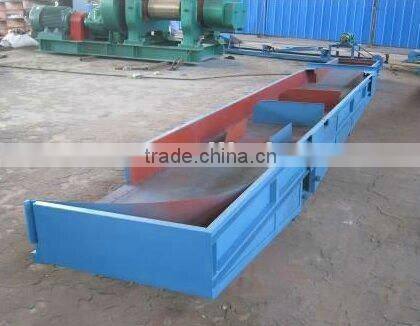

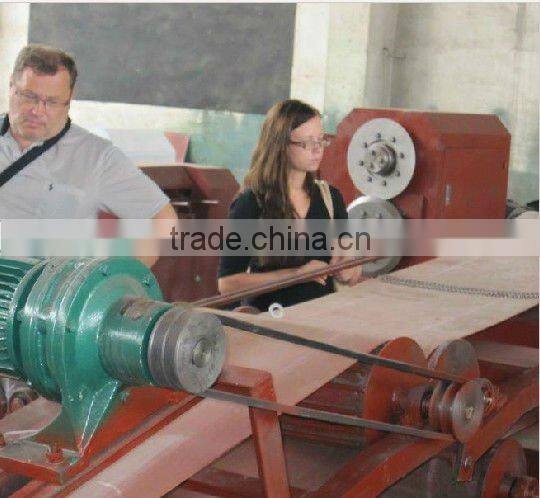

5. Big conveyor equipment

To conveyor the rubber block into crusher.

6.  tyre crusher (bearing bush)

Purpose:    Crush the rubber block into rubber powder and granule.

7.  big  Shaking screen

Purpose:

(1)  separate the rubber granule and powder, Resend the granule to crusher, and send powder to Magnet separator through  small conveyor belt.

(2)  separate the textile cord from rubber powder

8. Small  conveyor equipment

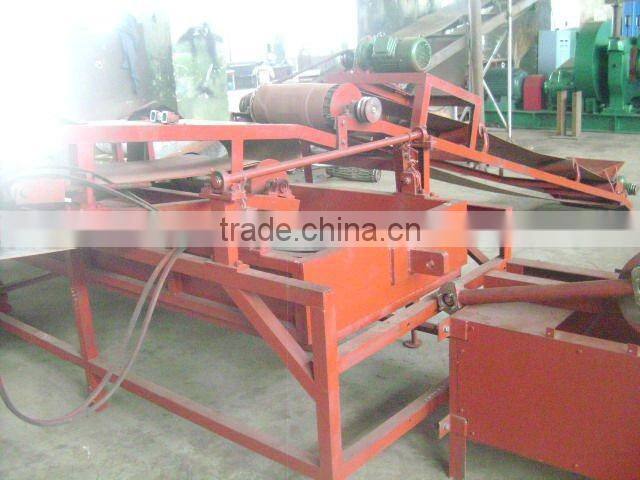

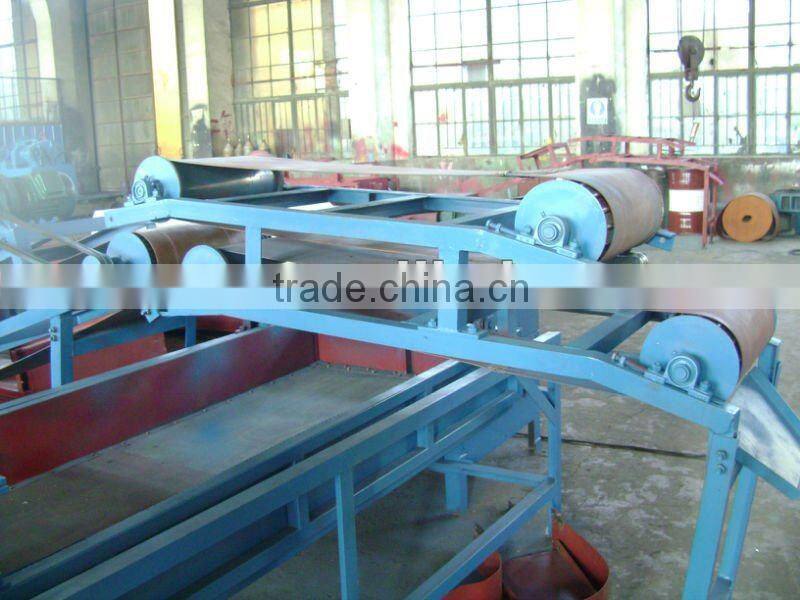

9. Big Magnet separator

 purpose: separate the steel small block from the rubber powder.

10.Small shaking screen

11.Small magnet separator

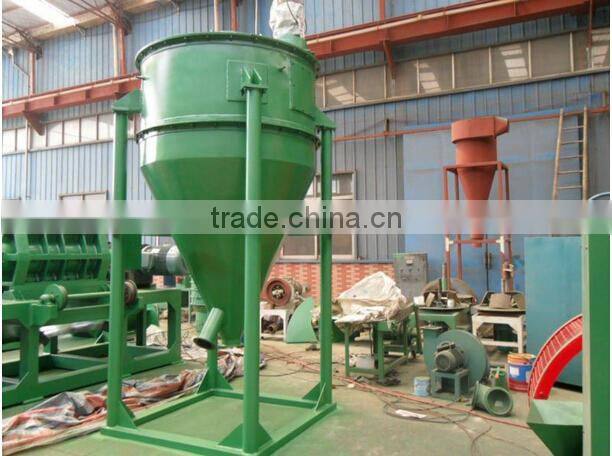

12. Fiber separator

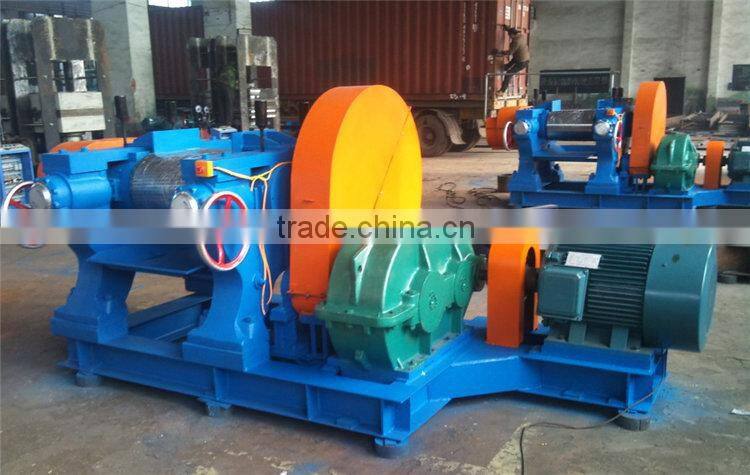

13.  Fine grinder

Model :FS110

capacity:200-500kg/h

Motor power:5.5kw

dimension:1.5*1.5*3.4(m)

weight:about 1.5T
