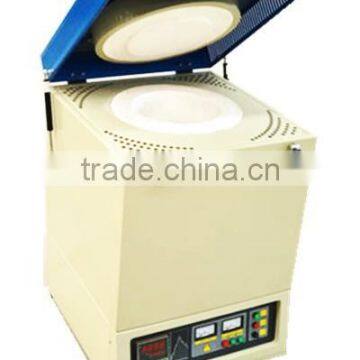

YIFAN Crucible type vacuum heat treatment crucible furnace YF-1200CF
Features for crucible furnace :
adopted the top open type door, with silicon carbide rod as heating elements, and with double shell structure and intelligent temperature control system. Furnace chamber adopted polycrystalline alumina fiber material, excellent heat preservation and energy saving.
Main function and features:
1. Furnace chamber adopted imported alumina polycrystalline fiber, with good insulation and
durability properties; And adopted the imported silicon carbide rod as heating elements, greatly
improving the service life.
2. Adopted top open door structure, power cutoff automatically when open the door.
3. Reserved 485 converter interface, can remote control of single or multiple furnace through software and
Internet, realtime tracking , history recorder, output statements ; can install the paperless recording device
for data storage and output.
4. Over-temperature alarm and power failure, leakage protection, safe and reliable operation.
Main applications:
Tempering, annealing and other heat treatment of metal materials and aluminum, light alloy
hardening, solid solution treatment, aging treatment and other experiments.
| Yifan Furnace Model: YF-1200CF | |
| Main Specifications: | |
| Inside Chamber Size | Support customized upon request |
| Standard Working Temperature | 1100oC ( continuous ) |
| Maximum Working Temperature | 1200oC ( < 3 hrs) |
| Temperature Control | 30 steps programmable and PID automatic controller |
| Heating Rate | 0~ 40.C/ min (suggestion: =< 20.C ) |
| Temperature Accuracy | +/- 1 .C |
| Furnace structure | Double shell with fan cooling |
| Heating Element | Kanthal resistance wire |
| Thermocouple | K type |
| Working Voltage | AC 220V Single Phases 60/50 Hz (or according to your requirement) |
| Max. Power | 0.7-80 KW |
| Outside Size | According to requied chamber size |
| Net Weight | According to requied chamber size |
| YF series box furnaces are the most cost effective bench-top high temperature muffle furnace. The furnace consists of high quality alumina fiber brick and MoSi2 heating elements with special design, and furnace temperature is controlled by high precision SCR (Silicon Controlled Rectifier) digital controller with accuracy +/-1 deg oC and 30 segments programmable. It is an ideal tool for materials annealing and sintering in your research laboratory. | |
| Standard package included with the furnace | |
| Part description | Quantity |
| High Temperature Muffle Furnace | 1 pc |
| K type Thermocouples | 1 pc |
| Al2O3 Sample Plate | 1 pc |
| Al2O3 Furnace Door Block | 1 pc |
| Crucible Clip | 1 pc |
| Thermal gloves | 1 pair |
| Operation manual | 1 pc |
| Standard Sizes: | |
| Model | Chamber size(WxHxD OR DIAxH mm) |
| YF-1200CF | 100*100*100mm or dia100 H100mm |
| YF-1200CF | 120x120x130mm or dia120H150mm |
| YF-1200CF | 150x150x150mm or dia150H200mm |
| YF-1200CF | 200x200x200mm or dia200H200mm |
| YF-1200CF | 200x200x300mm or dia200H300mm |
| YF-1200CF | 250x250x300mm or dia250H300mm |
| YF-1200CF | 300x300x400mm or dia300H400mm |
| YF-1200CF | 450x450x500mm or dia450H500mm |
| YF-1200CF | 500x500x600mm or dia500H600MM |
| YF-1200CF | 600x600x600mm |
| YF-1200CF | 800x800x800mm |
| YF-1200CF | 900x900x1000mm |
