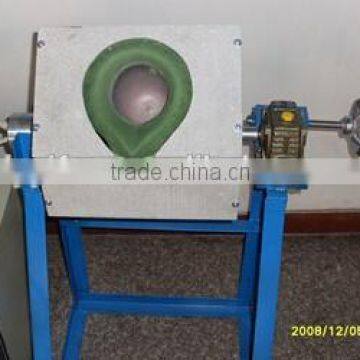

HTMM160 160kw induction heating furnace gold melter induction furnace induction heat treatment furnace
YIFAN brand furnace
A:induction melting machine include:
1. Induction Heating Generator.2. Tilt Melting Furnace.
B:Features of induction heating melting furnace:
1.Induction heating melting furnace use crucible high temperature to heat metal.then can melt,refine,casting,etc production.
2.Can melt platinum, rhodium and palladium,gold,silver,copper,steel,aluminium, Activated carbon, gold dust sands, electrolysis mud, gold and silver powder, tin ash tin slag etc.
3.Induction heating melting furnace can melt weight from 0.001KG--500KG per lting time from 5--40 minutes.max temperature will be 1500C--2000C.
4.Induction heating melting furnace have fixed type,push out type,auto pouring type,furnace up down moving type.
C:Induction melting Furnace advantage :
1.IGBT(INFINEON) technology, high conversion efficiency;
2.Energy saving 15%-30% , compared to SCR/KGPS technology Much more efficient than gas-fired and coal-fired method
100% start-up success rate; power factor > 95%
3.Perfect and complete protection functions, increasing machine's reliability & stability
4.No special foundations required, Low operating cost, Easy operation
5.Modular design, ease of maintaining and repairing
D:induction furnace Main applications:
Heat treatment: Hardening, annealing, tempering of auto parts, motorcycles, hardware tools, gears, sprockets, pneumatic, hydraulic accessories.
Hot forming: Diathermy of small workpiece, hot forging and hot rolling of twist drill.
Welding: The welding of turning/woodworking tools, drill bits, serrated blade, steel, copper wall, similar metal.
Metal melting: (Vacuum) molding, casting molding and evaporation coating of gold, silver, Fe, Al and other metals.
Other applications: The production of semiconductor single crystal, with hot, bottle sealing, sealing toothpaste, powder coating, metal embedded in plastic and so on
Standard induction furnace main parameter :
| NO | Steel, iron, nickel, chromium | Gold, silver | Copper, tin, antimony, lead, zinc and germanium | Aluminum, silicon, titanium and magnesium | Voltage | Input power | melting time |
| HTM-15 | 200G | 2KG | 2KG | 500G | 220v | 7kw | ≤8minutes |
| HTM-25 | 500G | 3-5KG | 3-5KG | 0.5KG | 380v | 15kw | ≤8minutes |
| HTMM-15 | 2KG | 10KG | 10KG | 5KG | 380v | 15kw | ≤20minutes |
| HTMM-25 | 4KG | 20KG | 20KG | 10KG | 380v | 25kw | ≤20minutes |
| HTMM-35 | 8KG | 40KG | 40KG | 20KG | 380v | 35kw | ≤30minutes |
| HTMM-45 | 15KG | 60KG | 60KG | 30KG | 380v | 45kw | ≤30minutes |
| HTMM-70 | 25KG | 100KG | 100KG | 40KG | 380v | 70kw | ≤30minutes |
| HTMM-90 | 45KG | 120KG | 120KG | 50KG | 380v | 90kw | ≤30minutes |
| HTMM-110 | 60KG | 150KG | 150KG | 60KG | 380v | 110kw | ≤40minutes |
| HTMM-160 | 100KG | 180KG | 180KG | 75KG | 380v | 160kw | ≤40minutes |
induction furnace Main applications:
Heat treatment: Hardening, annealing, tempering of auto parts, motorcycles, hardware tools, gears, sprockets, pneumatic, hydraulic accessories.
Hot forming: Diathermy of small workpiece, hot forging and hot rolling of twist drill.
Welding: The welding of turning/woodworking tools, drill bits, serrated blade, steel, copper wall, similar metal.
Metal melting: (Vacuum) molding, casting molding and evaporation coating of gold, silver, Fe, Al and other metals.
Other applications: The production of semiconductor single crystal, with hot, bottle sealing, sealing toothpaste, powder coating, metal embedded in plastic and so on
One year warranty;
Long-term technical service;
Overseas on-site technicians service if required.
We have much stocks so we can arrange for the delivery very fast!
We believe "first quality,first customers,first service"
Sincerely provide service for you!
1.Directly manufacturer offering the best price and quality and service.
2.One sales will be serves client from inquiry to products delivery .Communicate directly and conveniently.
3.Professional R&D team.
4.Strict QC.
5,Professional packing and shipping.ensure goods arrived safely
6.Offering OEM /ODM services.Our AGENT customers are all over the world like USA, UK, Russia, Korea, Southeast Asia, etc. we are quite experienced to help client win more market.
7.Certificate: All our products are CE approval.
8.Fast reply: Our team will respond your requests within 8working-hours
All of our products support OEM ODM service.
We can according your require custom the appearance like the color ,the cover or door open way ,and the size of the chamber ,the capacity .the moveing way and the chamber position.
Also support with client brand and style.
Any query please inquiry with our sales team.
