YIFAN furnace
2014 CE 1200C Box Type laboratory furnace for heat treatment YF1200
We support customized size and color and shape

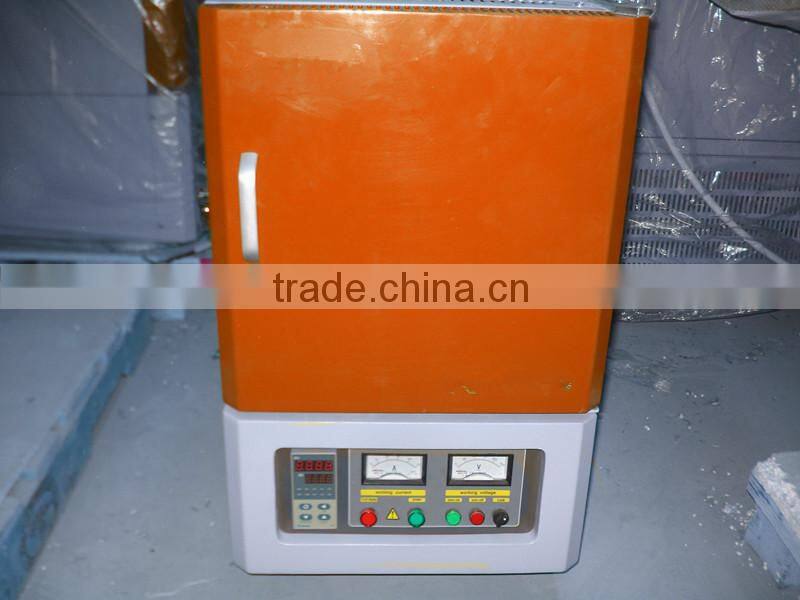

YIFAN brand furnace YF-1200 Box type electric lab furnaceis adopted import resistance wire as heated element; with dual shell structure and intelligent auto-control temperature system. The chamber is adopted the polycrystalline alumina fiber, it is equipped with cooling system between the dual shell, which can rise and cool quickly.
Main function & Features:
1. Furnace chamber adopted imported alumina fibers material, with better insulation properties and durable to use; Heating elements adopted high quality 0Cr27Al7Mo2 wire, maximum temperature can reach to 1200 °C;
2. Three sides or more surfaces of the embedded resistance wire heating with temperature field uniformity;
3. Side open type furnace door, open the door power off;
4. Reserved 485 converter interface, can remote control of single or multiple furnace through software and Internet, real-time tracking , history recorder, output statements; can install the paperless recording device for data storage and output;
5. Over-temperature alarm and power failure, leakage protection, safe and reliable operation.
Main uses:
Universities, research institutes, industrial and mining enterprises to do the powder sintering, material handling, quality inspection purposes.

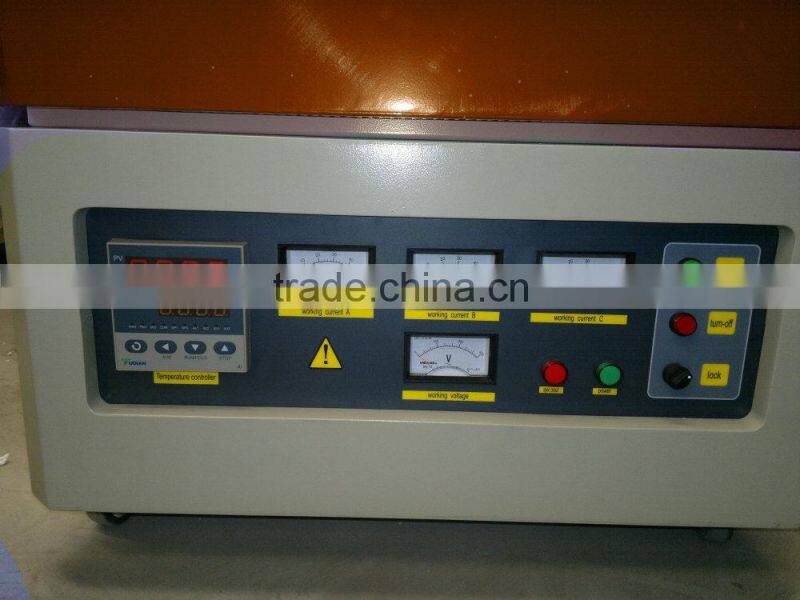

A:AI - 808P artificial intelligence temperature controller, temperature
control system using artificial intelligence technology, with a PID regulator, fuzzy control, autotuning function, and can prepare the 50 - segment heating and cooling procedures
B:PLC 50 segment touch screen controller with recorder ,internet connect,data ouput ,compute control function.
New type industrial-grade touch screen operation,all the parameter set in one interface easily , the client can be used as the use of mobile phones easily,New AI artificial intelligence logic PID algorithm ,data record function,support customzied meue.
| Model | YF-1200 | YF-1200 | YF-1200 |
| Approved by CE certificate, ensure the safety operation of the machine. | |||
| Chamber size | 300*200*120mm | 300*200*200mm | 400*300*300mm |
| (D x W x H) | (Customizable) | ||
| Overall size | 450*600*600mm | 470*600*700mm | 640*800*1050mm |
| Voltage | AC220V 50/60HZ | AC220V 50/60HZ | AC380V 50/60HZ |
| Rated power | 3kw | 4kw | 7kw |
| Weight | 60kg | 80kg | 190 kg |
| Furnace chamber | High pure polycrystalline alumina fiber, well thermal insulation and energy conservation | ||
| Heating element | 0Cr27Al7Mo2 | ||
Thermcouple | N type | ||
Temperature controller | The temperature control system uses artificial intelligence technology, self - tuning function, 50 steps programmable and PID automatic control | ||
| Working temperature | ≤1150C | ||
| Max temperature | 1200C | ||
Maximum heating rate | ≤40C/min | ||
Suggest heating rate rate | 20C/min | ||
Temperature accuracy | ±1C | ||
| Standard accessories | crucible clip and Oven gloves 1pc | ||
| Optional accessories | a variety of alumina tube and corundum crucible, computer control software and paperless recorder, etc. | ||
YIFAN FURNACE HAVE OWN DEVELOPMENT TEAM SUPPORT ALL KINDS OEM /ODM DESIGN .SPECIALLY IN HEATING EQUIPMENTS FOR 15 YEARS .ENSURE BEST QUALITY PRODUCTS AND AFTER SALE SERVICE .
Warranty:Our products are warranted to be free from defects in materials or workmanship for one year from the date of purchase. Within this period, Across International will, at its sole options, replace any components that fail in normal use. Such replacement will be made at no charge to the customer for parts, provided that the customer shall be responsible for any transportation cost. This warranty does not cover consumables and failures due to abuse, misuse, accident or unauthorized alteration or repairs.
Replacement will be shipped to you after photo or other evidence are provided and investigated.
