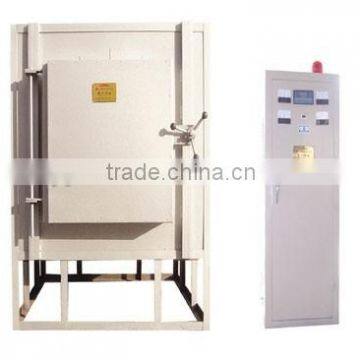

Help CenterYIFAN Automatic Heat Treatment Furnace for Annealing/quenching/hardening/tempering YF-1700BL
Related Products
-
YIFAN China Famous OEM/ODM Manufacturer Cad Cam Dental Zirconia Sintering FurnaceUS$ 800 - 2,000MOQ: 1 Set -
YIFAN EXW Price High Quality Horizontal Type High Temperature Mini Muffle Furnace Used Heating and Sintering 1700CUS$ 800 - 2,000MOQ: 1 Set
-
YIFAN Fritting Furnace 1200CUS$ 800 - 2,000MOQ: 1 Set
-
Hot Sale--Competitive Price Laboratory LCD Panel High Temperature Muffle FurnaceUS$ 1,500 - 5,000MOQ: 1 Set
-
Laboratory Atmosphere Muffle Furnace 1700C for SinteringUS$ 1,500 - 5,000MOQ: 1 Set
Features for lab bottom load furnace :
All the hearth material are made by the imported Morgen fiber, and its effect of energy-saving is more that 80% of the old furnace.
Our products have the advantages warming faster 20-40 mins, energy saving, high precision temperature control, heat preservation performance , the microcomputer control, programmable automatic temperature, temperature at furnace wall to such high interest conditions, Widely used in ceramic industry, chemical industry, electronic, metallurgy, new materials, machinery, fire-proof material, building materials, special materials of experiment and production. welcome old and new customers.
Double layers steel casing with fan cooling, to ensure the surface of furnace below 50 °C.
Lifting bottom controlled by electric, freely lift or down.
Up and down limited switch, double safety for bottom moving.
1. Operation Temperature: 1700°C/1600°C.
2. Maximum energy efficiency is achieved by surrounding the chamber with thermal-efficient alumina fiber ceramic insulation.
3. Heavy duty double layer structure with cooling fan. Lower teperature in outside case.
4. PID automatic control via current limiting phase angle fired the resistor, e.g. SCR(Silicon Controlled Rectifier).
5. Power control with 30 segments programmable.
| Model: YF-1700BL square chamber or round chamber for select | ||
| Main Specifications: | ||
| Inside Chamber Size | 200 x 200 x 200 mm (8"x8"x8", 8 Liter) | |
| Standard Working Temperature | 1700oC ( continuous ) | |
| Maximum Working Temperature | 1700oC ( < 3 hrs) | |
| Temperature Control | 30 steps programmable and PID automatic control | |
| Heating Rate | 0~ 10.C/ min (suggestion: =< 10.C ) | |
| Temperature Accuracy | +/- 1 .C | |
| Heating Element | MoSi2 heating elements | |
| Working Voltage | AC 380V Three Phases 60/50 Hz (or according to your requirement) | |
| Max. Power | 9 KW | |
| Outside Size | 700 x 800 x 1700 mm | |
| Net Weight | 300 Kg | |
| YF-1700BL The single zone, high temperature, bottom loading furnace is capable of operating at temperatures up to 1650oC in air. The furnace utilizes 1800oC molydisilicide heating elements positioned on three sides of the internal chamber. The furnace utilizes an energy efficient insulation package consisting of graded ceramic-fiber, high temperature insulation. It is an ideal tool for materials annealing and sintering. | ||
| Standard Sizes: | ||
| Model | Chamber size(WxHYFmm) | Max. Temperature |
| YF-1700BL | 150x150x 150mm (6"x6"x6") | 1700.C |
| YF-1700BL | 150x150x 200mm (6"x6"x8") | 1700.C |
| YF-1700BL | 200x200x 200mm (8"x8"x8") | 1700.C |
| YF-1700BL | 200x200x 300mm (8"x8"x12") | 1700.C |
| YF-1700BL | 250x250x 300mm (10"x10"x12") | 1700.C |
| YF-1700BL | 300x300x 400mm (12"x12"x16") | 1700.C |
| YF-1700BL | 400x400x 400mm (16"x16"x16") | 1700.C |
| YF-1700BL | 500x500x 500mm (20"x20"x20") | 1700.C |
Package: Plastic paper inside, Polyfoam filled, Wooden box outside.
Payment: L/C T/T, West union,etc.
Shipping and Delivery: by air or sea , in 15 days after receiving the payment
Warranty:Our products are warranted to be free from defects in materials or workmanship for one year from the date of purchase. Within this period, Across International will, at its sole options, replace any components that fail in normal use. Such replacement will be made at no charge to the customer for parts, provided that the customer shall be responsible for any transportation cost. This warranty does not cover consumables and failures due to abuse, misuse, accident or unauthorized alteration or repairs.
Replacement will be shipped to you after photo or other evidence are provided and investigated.
