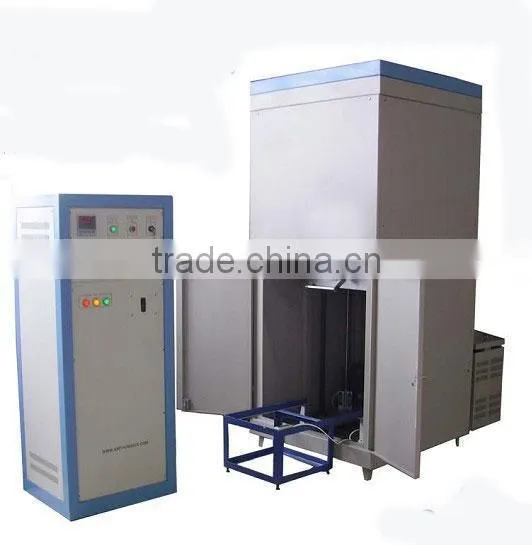

Features for lab bottom load furnace :
All the hearth material are made by the imported Morgen fiber, and its effect of energy-saving is more that 80% of the old furnace.
Our products have the advantages warming faster 20-40 mins, energy saving, high precision temperature control, heat preservation performance , the microcomputer control, programmable automatic temperature, temperature at furnace wall to such high interest conditions, Widely used in ceramic industry, chemical industry, electronic, metallurgy, new materials, machinery, fire-proof material, building materials, special materials of experiment and production. welcome old and new customers.
Double layers steel casing with fan cooling, to ensure the surface of furnace below 50 °C.
Lifting bottom controlled by electric, freely lift or down.
Up and down limited switch, double safety for bottom moving.
1. Operation Temperature: 1200°C/1100°C.
2. Maximum energy efficiency is achieved by surrounding the chamber with thermal-efficient alumina fiber ceramic insulation.
3. Heavy duty double layer structure with cooling fan. Lower teperature in outside case.
4. PID automatic control via current limiting phase angle fired the resistor, e.g. SCR(Silicon Controlled Rectifier).
5. Power control with 50 segments programmable.
We offer OEM service for you!
| Model | YF-1200BL Approved by CE certificate, ensure the safety operation of the machine. | |||||
| Furnace chamber size |
150*150*150mm 300*200*200mm 400* 300* 300mm Dia120*H130mm 220*250mm(Customizable) |
|||||
| (D x W x H) | ||||||
| Furnace chamber | Imported high pure polycrystalline alumina fiber, excellent heat preservation | |||||
| Heating element | Imported high-quality silicon carbide | |||||
| Thermometric component | K-mode thermocouple | |||||
| Temperature control mode | AI - 808P artificial intelligence temperature controller, temperature control system using artificial intelligence technology, with a PID regulator, fuzzy control, auto-tuning function, and can prepare the 50 - segment heating and cooling procedures | |||||
| Maximum operating temperature | 1200C | |||||
| Standard Working Temperature | 1100oC ( continuous ) | |||||
| Constant temperature accuracy | ±1C | |||||
| Max heating rate | 40C/min | |||||
| Recommend temperature rising rate | ≤20C/min | |||||
| Rated power | 4/10/16KW | |||||
| Working power | AC220/380V 50HZ/60HZ | |||||
| Standard accessories | Oven gloves, crucible tongs | |||||
| Optional purchase accessories | Door brick, crucible clip, oven gloves ,user manual each one piece,SIC heater two pieces, | |||||
