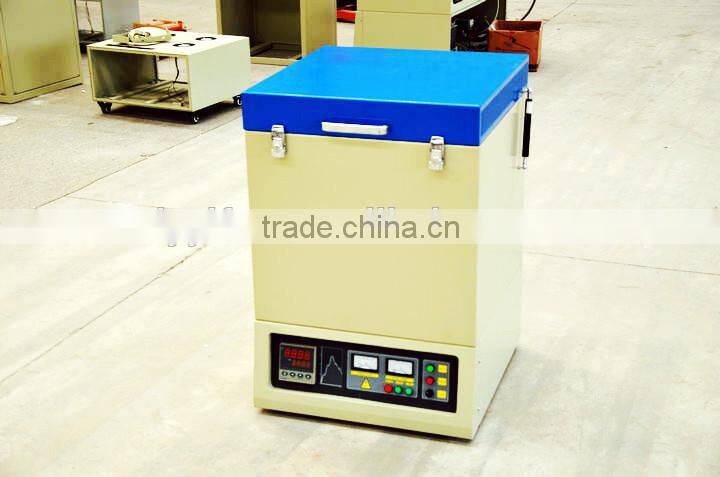

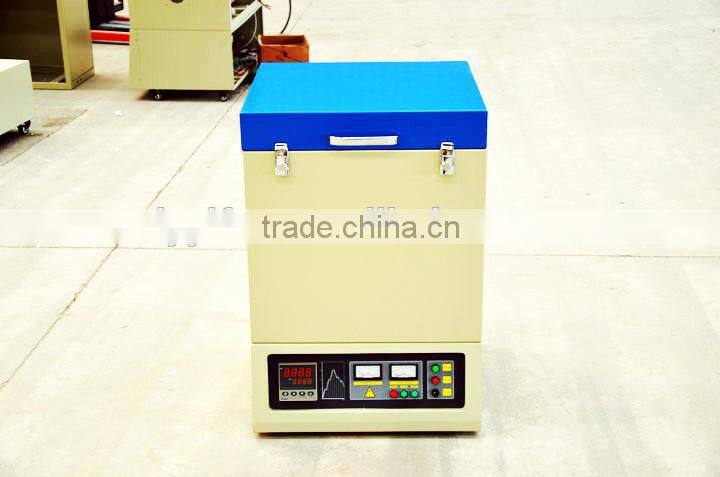

YIFAN Crucible type vacuum heat treatment crucible furnace YF-1200VCF
Features for crucible furnace :
adopted the top open type door, with silicon carbide rod as heating elements, and with double shell structure and intelligent temperature control system. Furnace chamber adopted polycrystalline alumina fiber material, excellent heat preservation and energy saving.
Main function and features:
1. Furnace chamber adopted imported alumina polycrystalline fiber, with good insulation and durability properties; And adoptd the imported silicon carbide rod as heating elements, greatly Improving the service life.
2. Adopted top open door structure, power cutoff automatically when open the door.
3. Reserved 485 converter interface, can remote control of single or multiple furnace through software and Internet, realtime tracking , history recorder, output statements ; can install the paperless recording device for data storage and output.
4. Over-temperature alarm and power failure, leakage protection, safe and reliable operation.
Main applications:
Tempering, annealing and other heat treatment of metal materials and aluminum, light alloy hardening, solid solution treatment, aging treatment and other experiments.
| Yifan Furnace Model: YF-1200VCF | |
| Main Specifications: | |
| Inside Chamber Size | Support customized upon request |
| Standard Working Temperature | 1100oC ( continuous ) |
| Maximum Working Temperature | 1200oC ( < 3 hrs) |
| Temperature Control | 30 steps programmable and PID automatic controller |
| Heating Rate | 0~ 40.C/ min (suggestion: =< 20.C ) |
| Temperature Accuracy | +/- 1 .C |
| Furnace structure | Double shell with fan cooling |
| Heating Element | resistance wire |
| Thermocouple | K type |
| Working Voltage | AC 220V Single Phases 60/50 Hz (or according to your requirement) |
| Max. Power | 0.7-80 KW |
| Vacuum degree | -0.1Mpa |
| Net Weight | According to requied chamber size |
| YF series box furnaces are the most cost effective bench-top high temperature muffle furnace. The furnace consists of high quality alumina fiber brick and heating elements with special design, and furnace temperature is controlled by high precision SCR (Silicon Controlled Rectifier) digital controller with accuracy +/-1 deg oC and 30 segments programmable. It is an ideal tool for materials annealing and sintering in your research laboratory. | |
| Standard package included with the furnace | |
| Part description | Quantity |
| High Temperature Muffle Furnace | 1 pc |
| K type Thermocouples | 1 pc |
| Al2O3 Sample Plate | 1 pc |
| Al2O3 Furnace Door Block | 1 pc |
| Crucible Clip | 1 pc |
| Thermal gloves | 1 pair |
| Operation manual | 1 pc |
| Standard Sizes: | |
| Model | Chamber size(WxHxD OR DIAxH mm) |
| YF-1200VCF | 100*100*100mm or dia100 H100mm |
| YF-1200VCF | 120x120x130mm or dia120H150mm |
| YF-1200VCF | 150x150x150mm or dia150H200mm |
| YF-1200VCF | 200x200x200mm or dia200H200mm |
| YF-1200VCF | 200x200x300mm or dia200H300mm |
| YF-1200VCF | 250x250x300mm or dia250H300mm |
| YF-1200VCF | 300x300x400mm or dia300H400mm |
| YF-1200VCF | 450x450x500mm or dia450H500mm |
| YF-1200VCF | 500x500x600mm or dia500H600MM |
| YF-1200VCF | 600x600x600mm |
| YF-1200VCF | 800x800x800mm |
| YF-1200VCF | 900x900x1000mm |
1.Directly manufacturer offering the best price and quality and service.
2.One sales will be serves client from inquiry to products delivery .Communicate directly and conveniently.
3.Professional R&D team.
4.Strict QC.
5,Professional packing and shipping.ensure goods arrived safely
6.Offering OEM /ODM services.Our AGENT customers are all over the world like USA, UK, Russia, Korea, Southeast Asia, etc. we are quite experienced to help client win more market.
7.Certificate: All our products are CE approval.
8.Fast reply: Our team will respond your requests within 8working-hours
All of our products support OEM ODM service.
We can according your require custom the appearance like the color ,the cover or door open way ,and the size of the chamber ,the capacity .the moveing way and the chamber position.
Also support with client brand and style.
Any query please inquiry with our sales team.
A:AI - 808P artificial intelligence temperature controller, temperature
control system using artificial intelligence technology, with a PID regulator, fuzzy control, autotuning function, and can prepare the 50 - segment heating and cooling procedures
B:PLC 50 segment touch screen controller with recorder ,internet connect,data ouput ,compute control function.
New type industrial-grade touch screen operation,all the parameter set in one interface easily , the client can be used as the use of mobile phones easily,New AI artificial intelligence logic PID algorithm ,data record function,support customzied meue.
