Best Price Factory Supply Electric Heating Elements Mosi2
US$ 20 - 200
MOQ: 4 Pieces
Key Specifications
Get Latest Price
Brand Name:
Yifan
Model Number:
YF
Place of Origin:
Henan, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Any port of china
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
M1900 MoSi2 Tubular Heating ElementsUS$ 20 - 200MOQ: 4 Pieces -
Low Power Consumption Fast Speed Induction Melting Electric Furnace / Intermediate Frequency FurnaceUS$ 800 - 5,000MOQ: 1 Set
-
1700c 1800c 1900c u Type Molybdenum Disilicide Mosi2 Heating ElementsUS$ 20 - 200MOQ: 4 Pieces
-
High Quality Programmable Bottom Drop Fast Quenching Furnace 1200 DegreeUS$ 1,500 - 5,000MOQ: 1 Set
-
Dental Zirconia Sintering Furnace Oral Therapy Equipments 1700CUS$ 1,500 - 5,000MOQ: 1 Set
Brand Name
Yifan
Model Number
YF
Place of Origin
Henan, China
Product Description
1. Specification:
Grade:1700/1800
Dia:3/6, 4/9, 6/12, 9/18, 12/24 etc.
Type: I, U, W, Pole, and U-right angle shapes, etc
we provide special designed MoSi2 elements according to customer needs, enabling an optimized element design for each particular application
| Order sample: | |||||
| d=6mm, c=12mm, Le=200mm, Lu=180mm, a=30mm | |||||
| Please specify as: dia6/12x200x180x30mm (dia d/cxLexLuxa mm) | |||||
| d = the diameter of hot zone | |||||
| c = the diameter of cold zone | |||||
| Le = the length of hot zone | |||||
| Lu = the length of cold zone | |||||
| Standard sizes: | |||||
| M1700 type (d/c): dia3/6, dia4/9, dia6/12, dia9/18, dia12/24 | |||||
| M1800 type (d/c): dia3/6, dia4/9, dia6/12, dia9/18, dia12/24 | |||||
| Molybdenum disilicide (MoSi2) heating element is a resistance generate-heating component made from MoSi2 or the basic material. It is used in high temperature under the oxidizing atmosphere, it looks like glass in its surface and form a light SiO2 glass film which can protect the element not to be oxidized. So this kind of element has unique effect for resisting oxidization in the high temperature. It is used to the highest temperature up to 1800C during oxidizing atmosphere. According to your request, our company can produce the products of Pole, "U", "W" and "U"-right angle shapes, etc. MoSi2 heating element can usually make use of furnace temperature from 1300C to 1800C. It is extensively used in the industries of metallurgy, glass, ceramic refractory, crystal electronic device, industrial furnace manufacture, etc.. It is an essential ideal element when the products are sintering in the high temperature. | |||||
| MoSi2 heating elements physics and chemistry characters: | |||||
| 1. Physics Characters | |||||
| Volume Density | Bending Strength | Vickers Hardness | Porosity | Water absorption | Heating Elongation Rate |
| 5.5 g/cm3 | 15-25 kg/cm3 | (HV)570kg/mm2 | 7.4% | 1.2% | 4% |
| 2. Chemistry Character | |||||
| MoSi2 heating element is used in the high temperature under oxidizing atmosphere. It will form the SiO2 film which can keep the element from being melted. During the oxidizing process, the SiO2 protecting film is formed again when the element continues to be used. The MoSi2 heating element must not be used in the temperature between 400C and 700C for a long time, otherwise the element will be cremated under the strong oxidizing function in the low temperature. | |||||
| Package: Plastic paper inside, Polyfoam filled, Wooden box outside. | |||||
| Payment: L/C T/T, West union,etc. | |||||
| Shipping and Delivery: by air a, in 15 days after receiving the payment | |||||
| Warranty:1 year limited | |||||
| Our products are warranted to be free from defects in materials or workmanship for one year from the date of purchase. Within this period, Across International will, at its sole options, replace any components that fail in normal use. Such replacement will be made at no charge to the customer for parts, provided that the customer shall be responsible for any transportation cost. This warranty does not cover consumables and failures due to abuse, misuse, accident or unauthorized alteration or repairs. | |||||
| Replacement will be shipped to you after photo or other evidence are provided and investigated. | |||||
U shape mosi2 heater heating rods Direct Manufacturer
M1900 long service life molybdenum disilicide dental furnace adopt mosi2 heater mosi2 heating elements
we provide special designed MoSi2 elements according to customer needs, enabling an optimized element design for each particular application
How to order
Pls comfirm follow data before inquiry Thank you !
Then we will detail quote for your reference.
WHY US MOSI2 HEATER
High puriy material make sure higher max working temperature 1900C
Tight tolerance make sure the right installation.
Larger quantity tubes in stock ensured fast delivery
Larger capacity ensure tube best prices.
Good service :professtional sales offering suitable MOSI2 HEATER ,best after sale service ,expert team solve all problem when using .
Application
1500-1800C Resistance furnace heater ensure fast heating and better high-temperature oxidation resistance ,using for glass , metallurgy,ceramic ,magnetic material .
HEATER ACCESSARIES

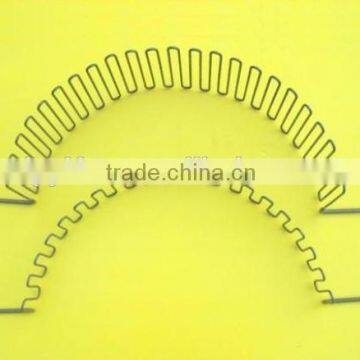

PHOTOS SHOW:
