YIFAN furnace
YIFAN CE high temperature electric laboratory muffle furnace 1700C for composition analysis YF1700
We support customized size and color and shape
YIFAN brand furnace

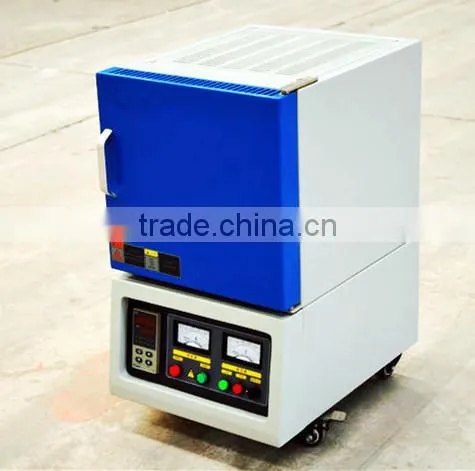

YF-1700 Box type electric lab furnaceis adopted imported mosi2 rod as heated element;with
double shell structure and intelligent auto-control temperature system, SCR control, phase shifting trigger. The
chamber is adopted the 1800 type imported polycrystalline alumina fiber. Equipped with Fan cooling system
between the dual shell, which can rise and cool swiftly; Using constant current soft-start control, to extend the
life of heating elements.
Main function & Features:
1. Furnace chamber adopted imported alumina polycrystalline fiber, with good insulation and durability properties; And adopted the imported Mosi2 heater as heating elements, greatly improving the service life;
2. With unique furnace design, durable to use, does not collapse;
3. Side open/silde down/lift up type furnace door select,to meet different client require;
4. Reserved 485 converter interface, can remote control of single or multiple furnace through software and Internet, real-time tracking, history recorder, output statements; can install the paperless recording device for data storage and output;
5. Over-temperature alarm and power failure, leakage protection, safe and reliable operation.
Main uses:
Universities, research institutes, industrial and mining enterprises to do the powder sintering, sintering of ceramics, high temperature experiments, material handling, quality inspection purposes.
| YF1700 muffle furnace CE certified compact high temperature muffle furnace up to 1700°C with for max energy saving. It is an ideal tool for preparing new generation material in research laboratories | |
| The furnace consists of high quality alumina fiber brick and Kathnal Super-1800 MoSi2 heating elements with double layer case. | |
| Gas inlet and venting port are installed for using at oxygen or inert gas rich atmospheres. | |

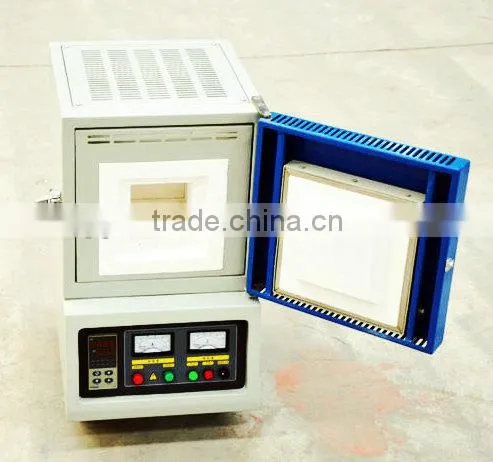

| Design of sliding down /Side open/lift up door is for loading sample at easy. | |
| Specifications: | |
| Inside Chamber Size | 150 x 150 x 150mm (6" x 6" x 6 "), 3.4 L Customized size is available upon request |
| Furnace Structure | Double layer steel structure with air cooling fan to keep case temperature below 55°C |
| Standard Working Temperature | 1600°C (continuous) |
| Maximum Working Temperature | 1700°C (< 3 hours) |
| Temperature Control | PID automatic control via SCR (Silicon Controlled Rectifier) power controlwith 30 steps programmable |
| Heating Rate | 0 ~40°C / min (suggestion =< 20°C) |
| Temperature Accuracy & stability | +/- 1oC |
| Heating Element | Super 1800C grade Made in Sweden |
| Thermo Couple | B Type (Pt-Rh to Pt-Rh)with Alumina tube |
| Working Voltage | AC 208V-240V single phase, 50/60 Hz (30A air breaker required) |
| Max. Power | 2.5 KW (30A breaker required) |
| Power cable & plug | 10 feet lengthheavy duty power cable is included,Plug is not included.) |
| Outside Size | 380 x 410 x 620 mm (15" x 16" x 24.5") |
| Warranty | One year limited warranty with life time support. (Consumable parts such as sample plates and heating elements are not covered by the warranty) |
| Certificate | CE Certified |
| Application Notes |
For preserving the longevity of the furnace components, we recommend the heating rate not to exceed 20 °C /min. Cooling rate shall also not exceed 10 °C /min. This furnace lacks vacuum sealing, toxic or explosive gases are not recommended for use with this furnace without necessary safety controls and supervision. Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating. |
| Package Dimension after crating | 650x720x920mm |
| Shipping Weight | 100kgs |
| Standard parts include in the Package | |
| Description | Quantity |
| High Temperature Muffle Furnace | 1 set |
| Super-1800 grade Kathnal MoSi2 Heating Element | 4 pcs |
| B-Type Pt-Rh to Pt-Rh Thermocouples with Alumina Protection Tube | 1 set |
| Al2O3 Sample Plate | 1 pcs |
| Al2O3 Furnace Door Block | 1 pcs |
| Crucible Clip | 1 pcs |
| Operation Manual | 1 set |
| Gloves | 1 pair |
| Model | Chamber size(WxHxDmm) |
| YF-1700 | 100x100x100mm |
| YF-1700 | 120x120x130mm |
| YF-1700 | 150x150x150mm |
| YF-1700 | 200x200x200mm |
| YF-1700 | 200x200x300mm |
| YF-1700 | 250x250x300mm |
| YF-1700 | 300x300x400mm |
| YF-1700 | 450x450x500mm |
| YF-1700 | 600x600x600mm |
A:AI - 808P artificial intelligence temperature controller, temperature
control system using artificial intelligence technology, with a PID regulator, fuzzy control, autotuning function, and can prepare the 50 - segment heating and cooling procedures
B:PLC 50 segment touch screen controller with recorder ,internet connect,data ouput ,compute control function.
New type industrial-grade touch screen operation,all the parameter set in one interface easily , the client can be used as the use of mobile phones easily,New AI artificial intelligence logic PID algorithm ,data record function,support customzied meue.
All of our products support OEM ODM service.
We can according your require custom the appearance like the color ,the cover or door open way ,and the size of the chamber ,the capacity .the moveing way and the chamber position.
Also support with client brand and style.
Any query please inquiry with our sales team.
Warranty:Our products are warranted to be free from defects in materials or workmanship for one year from the date of purchase. Within this period, Across International will, at its sole options, replace any components that fail in normal use. Such replacement will be made at no charge to the customer for parts, provided that the customer shall be responsible for any transportation cost. This warranty does not cover consumables and failures due to abuse, misuse, accident or unauthorized alteration or repairs.
Replacement will be shipped to you after photo or other evidence are provided and investigated.
1.Directly manufacturer offering the best price and quality and service.
2.One sales will be serves client from inquiry to products delivery .Communicate directly and conveniently.
3.Professional R&D team.
4.Strict QC.
5,Professional packing and shipping.ensure goods arrived safely
6.Offering OEM /ODM services.Our AGENT customers are all over the world like USA, UK, Russia, Korea, Southeast Asia, etc. we are quite experienced to help client win more market.
7.Certificate: All our products are CE approval.
8.Fast reply: Our team will respond your requests within 8working-hours
