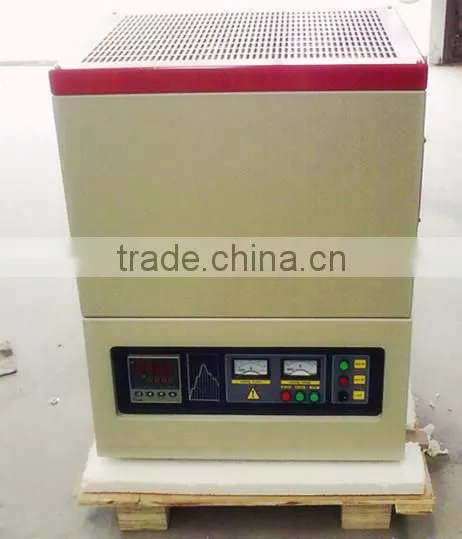

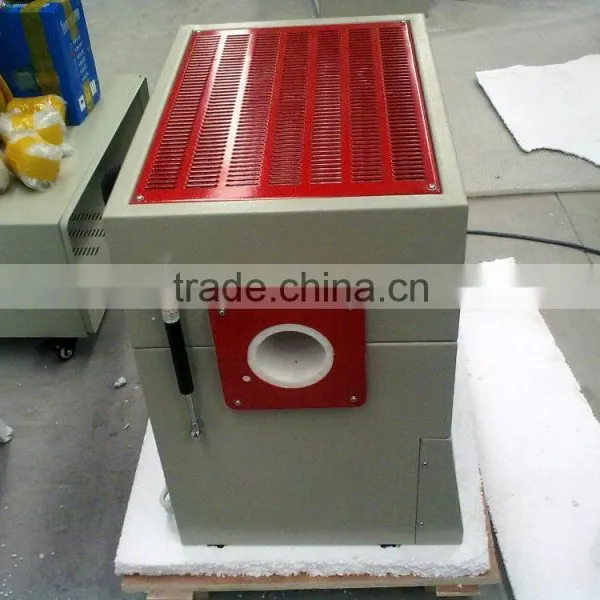

YIFAN furnace Energy Efficiency 1700C Best price High Temperature Vacuum Tube Furnace

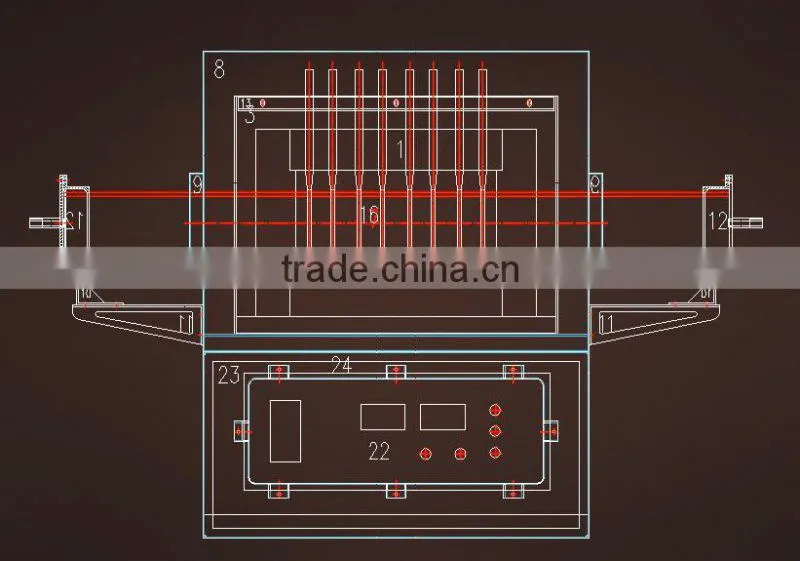

YFT-1700 vacuum tube furnace with 1700 type molybdenum rod as heating elements,
adopted double-shell structure and intelligent program temperature control system, phase-shift trigger, SCR
control, furnace chamber adopted polycrystalline alumina fiber material. Between double furnace shell
equipped with air cooling system for fast heating and cooling, with vacuum device, can be working in
protective gas or vacuum.
1. Adopted KF quick flange sealing with flange holder, only need a clamp flange the connection can be done. It is very convenient to put and take t. Avoiding leakage by artificial operation and reduced the ratio of heating tube damaging which caused by installation flanges. and thus well protected seals to ensure air tightness of the high-temperature furnace tube;
2. Furnace chamber adopted imported alumina polycrystalline fibers, effective insulation and energy saving. Imported molybdenum rod as heating element, greatly improving its service life, high density imported alumina tube, durable use and no easy break;
3. Reserved vacuum, gas road fast interface, could working with our vacuum system or mixed gas system;
4. Reserved 485 convert interface, can be connected with PC through software. It has remote control, real time tracking, history recorder, and output report function. And can be installed the paperless recorder for data storage and output;
5. Built - in thermocouple, real-time monitoring the temperature of the heated material;
6. Optional with the observation window flange, real-time observation of the sintered material conditions;
7. Over-temperature alarm and power failure, leakage protection, safe and reliable operation.
Main applications:
Used for universities, research institutions, industrial and mining enterprises to do high temperature sintering
atmosphere, atmosphere restoring, CVD experimental and vacuum annealing.
| Model: YFT-1700 | ||
| Main Specifications: | ||
| Inside Chamber Size | dia60x300mm(diameter2.5" x 12") | |
| Standard Working Temperature | 1600oC ( continuous ) | |
| Maximum Working Temperature | 1700oC ( < 3 hrs) | |
| Furnace chamber | Horizontal Tube Furnace | |
| Max. vacuum | .-0.1MPa | |
| Temperature Control | 51 steps programmable and PID automatic control | |
| Heating Rate | 0~ 40.C/ min (suggestion: =< 20.C ) | |
| Temperature Accuracy | +/- 1 .C | |

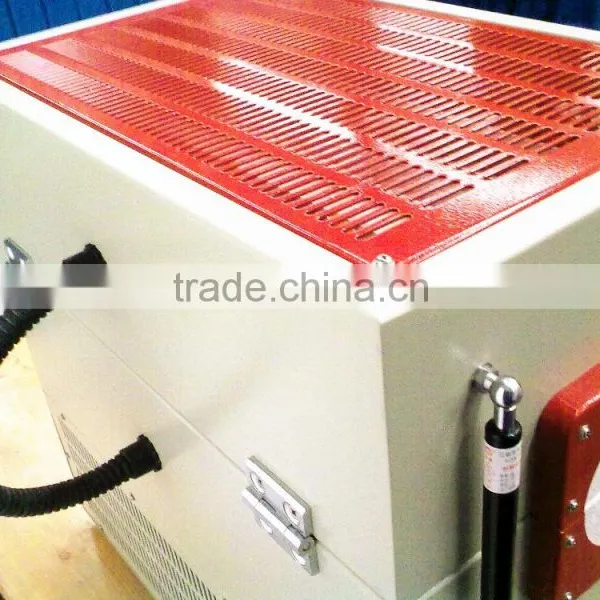

| Furnace structure | double shell with fan cooling | |
| Heating Element | MoSi2 heating elements | |
| Thermocouple | B type | |
| Working Voltage | AC 220V Single Phase 60/50 Hz (or according to your requirement) | |
| Max. Power | 7KW | |
| Net Weight | 150kg | |
| Detailed Description | ||
| YFT-1700 tube furnace is a precision bench-top furnace using quality ceramic MoSi2 rods as heating elements. It is widely used for materials or chemical lab to sinter all types of new materials samples under vacuum or other gases condition. It is controlled by high precision SCR ( Silicon Controlled Rectifier) digital controller with accuracy +/-1.C and 50 segments programmable up to 1700.C | ||
| Standard package included with the furnace | ||
| Part description | Quantity | |
| Tube plug | 4pcs | |
| quartz tube | 1pc | |
| vacuum pump | 1pc | |
| Sealing flange | 1set | |
| vacuum gauge | 1pc | |
| Thermal couple | 1 pc | |
| Stainless steel hook | 1 pc | |
| Thermal gloves | 1 pair | |
| Operation manual | 1 pc | |
| Standard Sizes: | ||
| Model | Chamber size (Outer diameter of furnace tube x heating length) | Max. Temperature |
| YFT-1700 | Dia40x300mm (1.5"x12") | 1700.C |
| YFT-1700 | Dia40x450mm (1.5"x18") | 1700.C |
| YFT-1700 | Dia60x300mm (2.5"x12") | 1700.C |
| YFT-1700 | Dia60x450mm (2.5"x18") | 1700.C |
| YFT-1700 | Dia80x300mm (3.0"x12") | 1700.C |
| YFT-1700 | Dia80x450mm (3.0"x18") | 1700.C |
A:AI - 808P artificial intelligence temperature controller, temperature
control system using artificial intelligence technology, with a PID regulator, fuzzy control, autotuning function, and can prepare the 50 - segment heating and cooling procedures
B:PLC 50 segment touch screen controller with recorder ,internet connect,data ouput ,compute control function.
New type industrial-grade touch screen operation,all the parameter set in one interface easily , the client can be used as the use of mobile phones easily,New AI artificial intelligence logic PID algorithm ,data record function,support customzied meue.
YIFAN FURNACE HAVE OWN DEVELOPMENT TEAM SUPPORT ALL KINDS OEM /ODM DESIGN .SPECIALLY IN HEATING EQUIPMENTS FOR 15 YEARS .ENSURE BEST QUALITY PRODUCTS AND AFTER SALE SERVICE .
YIFAN furnace
Warranty:Our products are warranted to be free from defects in materials or workmanship for one year from the date of purchase. Within this period, Across International will, at its sole options, replace any components that fail in normal use. Such replacement will be made at no charge to the customer for parts, provided that the customer shall be responsible for any transportation cost. This warranty does not cover consumables and failures due to abuse, misuse, accident or unauthorized alteration or repairs.
Replacement will be shipped to you after photo or other evidence are provided and investigated.
Package: Plastic paper inside, Polyfoam filled, Wooden box outside.
Payment: L/C T/T, West union,etc.
Shipping and Delivery: by air or sea , in 15 days after receiving the payment
1.Directly manufacturer offering the best price and quality and service.
2.One sales will be serves client from inquiry to products delivery .Communicate directly and conveniently.
3.Professional R&D team.
4.Strict QC.
5,Professional packing and shipping.ensure goods arrived safely
6.Offering OEM /ODM services.Our AGENT customers are all over the world like USA, UK, Russia, Korea, Southeast Asia, etc. we are quite experienced to help client win more market.
7.Certificate: All our products are CE approval.
8.Fast reply: Our team will respond your requests within 8working-hours
