Help CenterTyre Curing Press
Related Products
Specifications
1.curing machine passed the ISO90012.Sold more than 30 countries

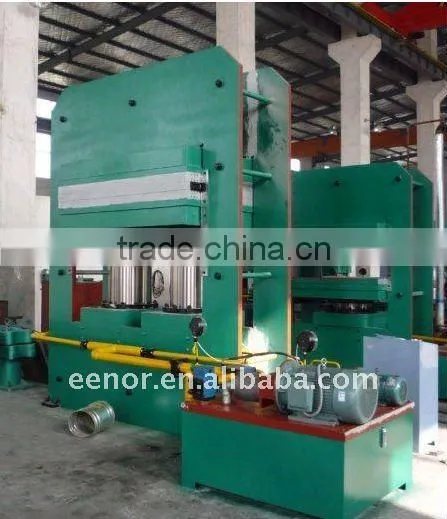

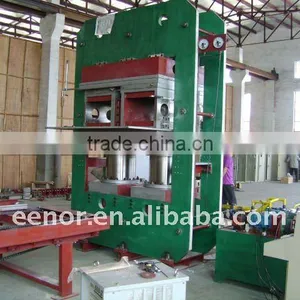

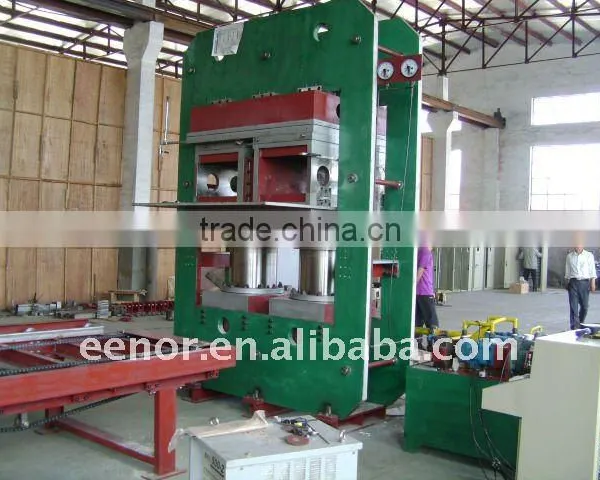

tyre / rubber products curing press
We can manufacture rubber products hydraulic vulcanizing press according to customer demand.
Characristics:
Type |
XLB-DQ400*400*2 |
XLB-DQ600*600*2 |
XLB-DQ750*850*2 |
XLB-DQ1000*1000*2 |
XLB-DQ1500*1500*2 |
XLB-DQ300*300*2 |
Total pressure |
0.50 MN |
1.00 MN |
1.60 MN |
4.00 MN |
8.00 MN |
0.25 MN |
Plate size |
400*400 mm |
600*600 mm |
750*850 mm |
1000*1000 mm |
1500*1500 mm |
300*300 mm |
Plate clearance |
125 mm |
125 mm |
125 mm |
125 mm |
125 mm |
125 mm |
Working layer nuber |
2 |
2 |
2(4) |
2(4) |
2(4) |
2 |
Piston stroke |
250 mm |
250 mm |
250(500) |
250(500) |
250(500) |
250 mm |
Plate pressure |
3.1 Mpa |
2.8 Mpa |
2.5 Mpa |
4.0 Mpa |
3.6 Mpa |
2.1 Mpa |
Motor power |
2.2 kw |
3 kw |
3 kw |
5.5 kw |
5.5 kw |
2.2 kw |
weight |
1300 kg |
3500 kg |
6500 kg |
11000 kg |
22000 kg |
curing press is used for all kinds of vulcanizing mould, rubber and plastic mould products, and non-mould products.
Being a column structure and downward pressing type, the heating plate opens by the self-weight of the heating plate, platform and plunger. The rising of the plunger makes the heating plate close while the hydraulic oil provides the pressure.
This engine base is combined together with the cylinder and base frame, which is made of ductile iron to increase the cylinder intensity and a brad ability. The cylinder is fitted with the sealing washer made of the oil-resisting rubber for the sealing purpose.
By moving the operational handle of the control valve to the two different positions, the heating plate can open and close.
It uses the electric pipe for heating, thus makes the workshop clean with easy and reliable operation.
| Contact |
Mr. Gavin Ding Mobile: 0086 13583283100 |
Factory Name Address& Product |
Qingdao Eenor Rubber Machinery Co., Ltd. Binhai Industrial Zone, Jiaonan, Qingdao, China
We manufacture and export reclaimed rubber machine, tire recycling rubber powder production line, hydrulic vulcanizing press, rubber extruder, rubber strainer, rubber refiner, rubber tile vulcanizing press, rubber mat machine, conveyor belt production line, conveyor belt jointing press, V belt production line, rotary curing press, rubber kneader, rubber calender, rubber cooling machine, rubber hose production line and other rubber machinery. |
Skype, MSN, G-talk&Email |
Skype: dingqinpeng MSN: dingqp <at> G-talk: dingqinpeng <at> Email: sales27 <at> |
