Specifications
passed the ISO9001.tyre machine sold worldwide in more than 30 countries and regions.
warranty:1 year
Good quality with reasonable price. Easy operation with convenient maintenance. Low labor
intensity and low energy consumption.

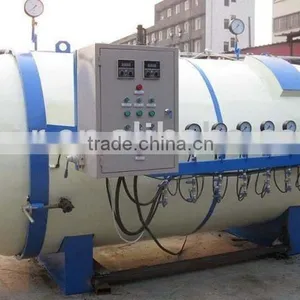

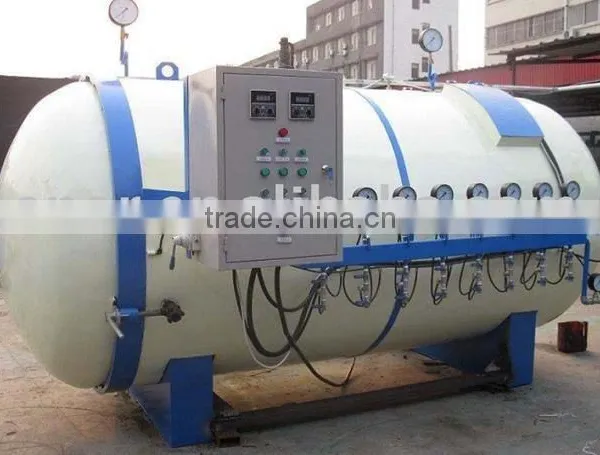

Tyre retreading vulcanizing tank
1.Tire retreading curing chamber
2.Can do 4,6,8,12,16 tires
3.Fine design,high quality
4.Diameter is 1.5m,2.2m,2.6m,3.5m
A.
Product introduction:
Multi-functional tires presulfided cans are safe and reliable curing equipment, this tank chain device is the guarantee quality the first points qualified products. The equipment is available electricity or steam, heat conduction oil heat. Equipment operation in control panel before you can adjust on the pressure, temperature, time.
B.
Operation:
Manual closing, vulcanizing pot after is open, the power is connected by hand motor door-close button, vulcanizing pot began to enter into automatic control.
1) miniature cooling motor startup
2) the circulation fan startup
3) heater or steam heating begin
4) vacuum pump start-up
5) 0.75 M afraid of filtering dry air valve opens(into the cans of compressed air should be no oil dry compressed air) until vulcanizing pot pressurized to setting value, to date, heater, self-control after fan, EPS value to package sets the set pressure value will suffer. Vulcanizing pot in which meets the above conditions launched. After timer General vulcanization time is 2.6-3 hours. Achieve time vulcanizing pot automatic vent, until the compressed air all platoon tank to tank clean, pressure value zero, open the door motor automatically start make pot the doors opened, as the entire system without electricity, vulcanization ended.
C.
Specification:
1. Vulcanizing pot design and manufacture in strict accordance with the national standard of "" steel pressure vessel, and according to the country" pressure vessel safety design review project "the relevant requirement of inspection.
2. According to the heating mode can be divided into steam pressure, electrical heating and heat conduction oil heating three forms.
3. According to different division control circuit for PLC control and PLC control add touch screen display two kinds.
| Model | 8tire multi-functional precure chamber |
| Vulcanizing pot pressure | 0.5-0.6Mpa |
| Automatic complete pressure | 0.7-0.8Mpa |
| Packing set of pressure |
0.4Mpa |
| Temperature | 95-120°C |
| Power | 31kw |
| Curing time | 2.6~3h |
| Dimensions(L*W*H_) | 4100*2300*2100mm |
| Contact |
Mr. Gavin Ding Mobile: 0086 13583283100 |
Factory Name Address& Product |
Qingdao Eenor Rubber Machinery Co., Ltd. Binhai Industrial Zone, Jiaonan, Qingdao, China We manufacture and export reclaimed rubber machine, tire recycling rubber powder production line, hydrulic vulcanizing press, rubber extruder, rubber strainer, rubber refiner, rubber tile vulcanizing press, rubber mat machine, conveyor belt production line, conveyor belt jointing press, V belt production line, rotary curing press, rubber kneader, rubber calender, rubber cooling machine, rubber hose production line and other rubber machinery. |
Skype, MSN, G-talk&Email |
Skype: dingqinpeng MSN: dingqp <at> G-talk: dingqinpeng <at> Email: sales27 <at> |
Our motto: The honesty is the root, a promise is a promise.
