Specifications
1 rubber calendaring and pressing.2 roller made of alloy cast iron.
3 overload protection device.

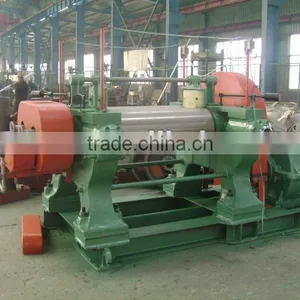

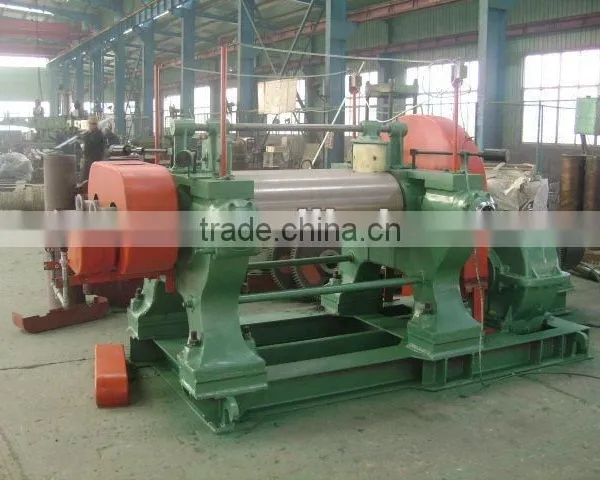

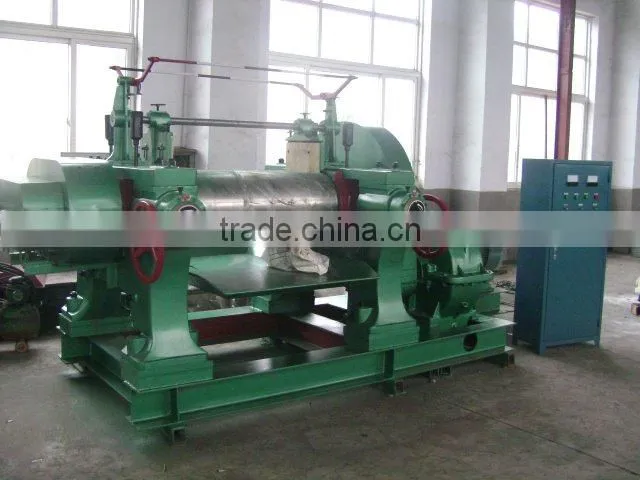

rubber refining machine:
nstruction
This machine consists of Base,Rack,Gland,Rollers,Bearing,Transmission device,Lubrication device,Decelerator,Adjustment device of the roller temperature,Emergency shutdown device and brake rigging and etc.
2.uses
It is mainly used for plasticating and mixing of rubber or plasticsect., warming and sheeting rubber compound, cracking and refining ofreclaimed rubber.
3.Features
1. Chilled alloy cast iron roll is abrasion resistant with long service life.
2. There are two kinds of Nip adjustment mode for option:manual or electric.
3. There are three kinds of Main bearings for option:Bearing or Copper bush or Nylon bush.
4. Machine will be tripped off if overloaded to protect valuable electrical circuit.
5. All electrical connections are well,short circuits is impossible by any means.
6. There are many speeds and speed ratios available, which can satisfy most customers’ formula and processing requirements.
Type |
XKJ-400 |
XKJ-480 |
|
Fro roller diameter |
mm |
400 |
480 |
Back roller diameter |
mm |
518 |
612 |
Working length of roller |
mm |
760 |
800 |
Linear speed of fro roller |
m/min |
25 |
26.6 |
Friction ratio of front and rear roll |
|
1:1.707 |
1:1.75 |
Max gap |
mm |
10 |
15 |
Capacity |
Kg/h |
-480 |
-500 |
Motor power |
KW |
45 |
75 |
Overall dimension |
mm |
4700x2300x1835 |
5070x2800x1978 |
