up roller

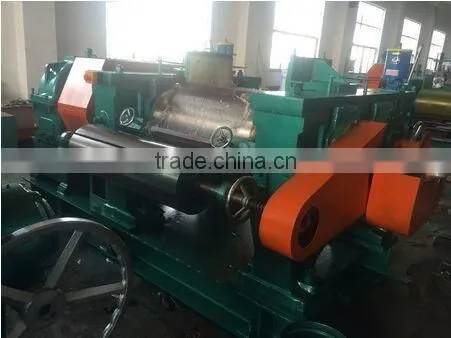

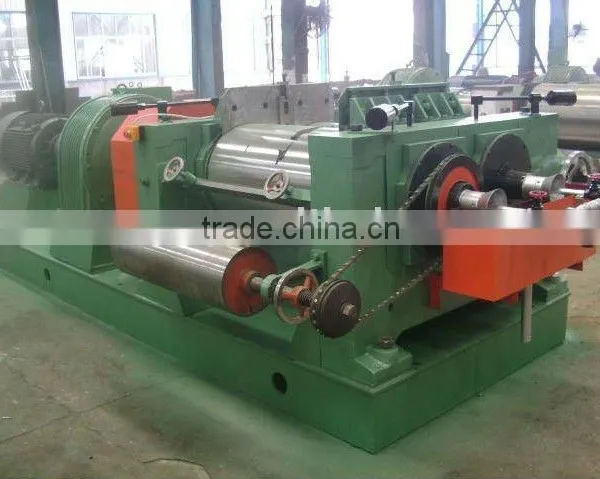

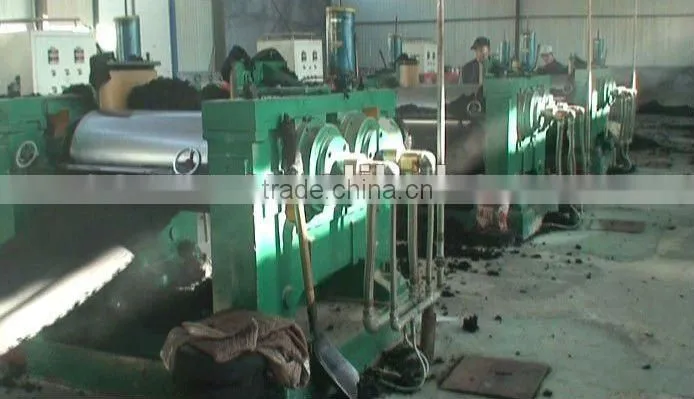

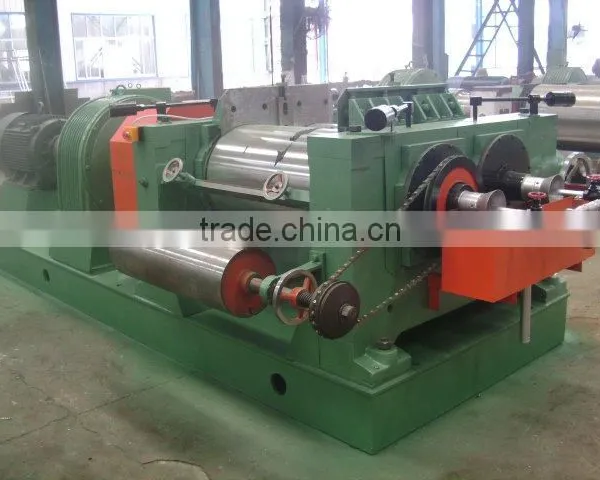

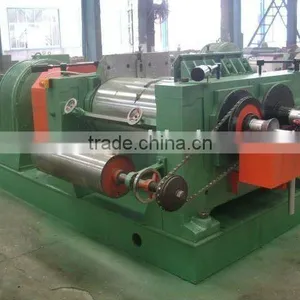

Rubber sheeting mill/rubber refiner:
Main Uses:
One another point different from the open mixing mill:the roller is of waist drum model and mainly used for stripping away impurity substance of reclaimed rubber.
Structure:
This machine consists of two rollers(waist drum model), base, frame, rack,transmission device,Bearing,Lubrication device, Decelerator, Adjustment device of the roller temperature,Emergency shutdown device and brake rigging,NGW Planetary hardened-gear Speed Reducer and etc.
Features:
1'Two rollers are made from Chilled Cast Iron,smooth surface is highly polished and scratch proof by cutting knife:high hardness and wear-resistant;
2'The roller is hollow structure,which is for adjusting the temperature of the rollers by steam or cooling water in term of different request;
3'Nip adjustment mode:manual or electric;
4'Main bearings:bearing or Copper bush or Nylon bush;
5'The machine is equipped with an overlaod protection device to prevent the major components from being damaged due to overloading.
6'The machine is also equipped with an emergency device. When an emergent accident happens, just draw the safety pull-rod, and the machine will stop immediately. It is safe and reliable.

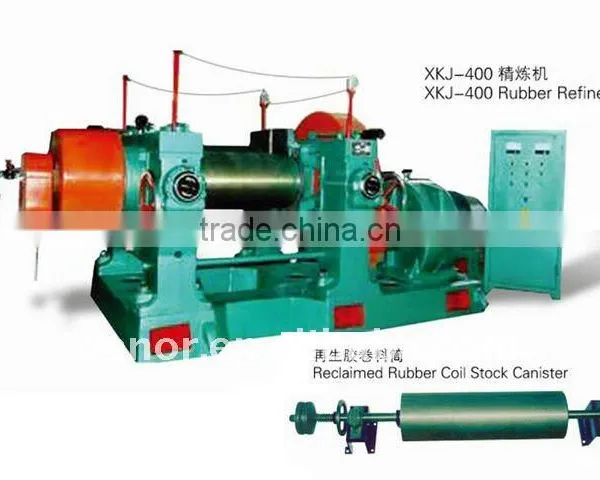

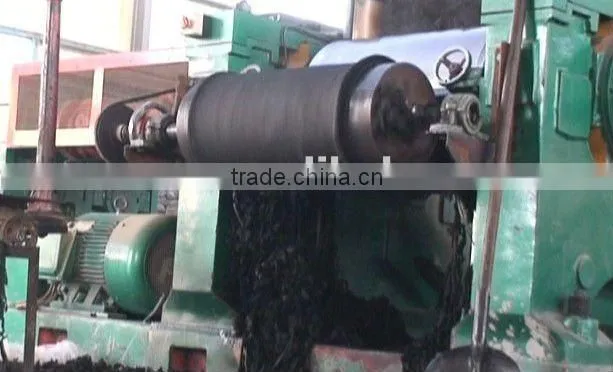

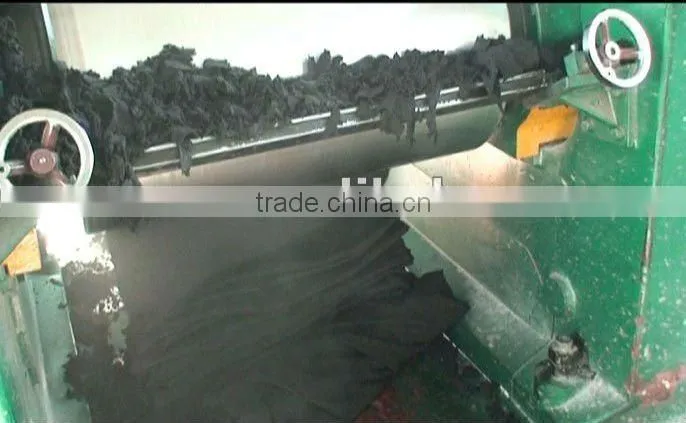

7'The machine is equipped with scraper and wind-up unit, which can take the reclaimed rubber away from the wind-up roller
ItemModel |

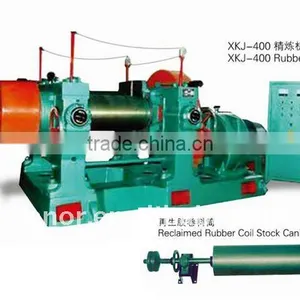

XKJ-400 |
XKJ-480 |
Working Diameter of Rollers(front/rear)(mm) |
400/518 |
480/512 |
Working Length of Rollers(mm) |
760 |
800 |
Linear Speed of Front Roller(m/min) |
25.00 |
24.00 |
Friction Ratio of Front and Rear roller |
1:1.71 |
1:1.75 |
Max Gap(mm) |
10 |
15 |
Capacity per Batch(kg) |
30-50 |
30-50 |
Overall Dimension(L*W*H)(mm) |
4550*2100*1850 |
5070*2800*1978 |
Gross Weight(kg) |
12000 |
20000 |

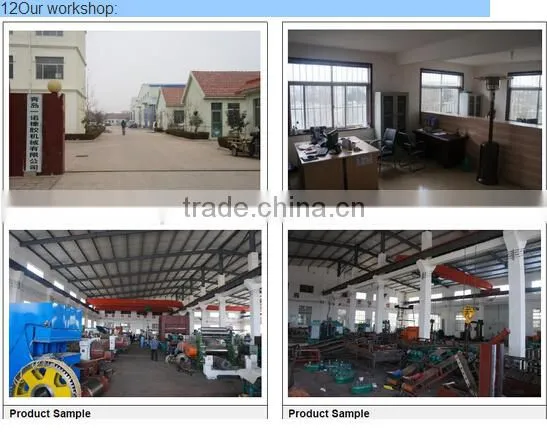

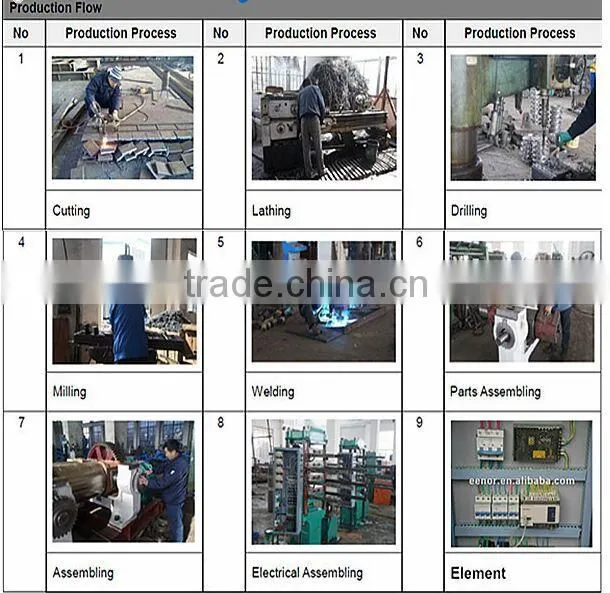

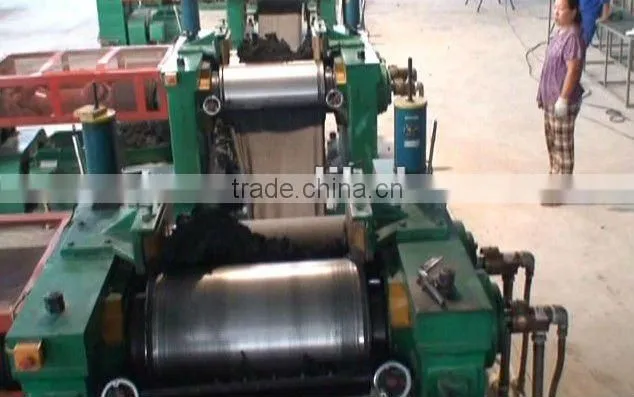

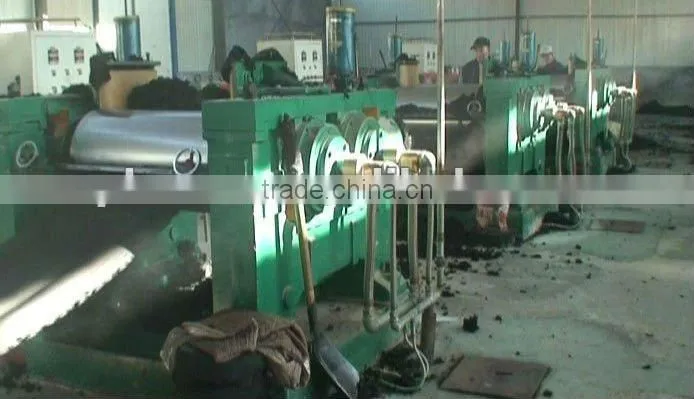

customers visit & workshop show:
FAQ:
1.Q:Are you a factory or trading company?
A:We are factory.
2.Q:Where is your factory?How can i visit ?
A:Our factory located in qingdao city.You can fly to qingdao liuting airport,then we can pick you up to our facotry to visit.Warm welcome visit us.
3.Q:How does your factory control the quality of machines and after sales service?
A:Our machines passed CE,BV,ISO,SGS certification,pls confirm the quality.All our machines have 1 year guarantee, will provide lifetime maintenance.
