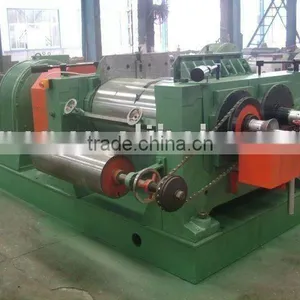

low price high quality XKJ-450 rubber refining machine
- 1000 Set / Sets per Month
- qingdao
- T/T
Product Details
Condition: | New | Type: | Rubber Mixer | Place of Origin: | Shandong, China |
Brand Name: | eenor | Model Number: | all various | Warranty: | one year warranty |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

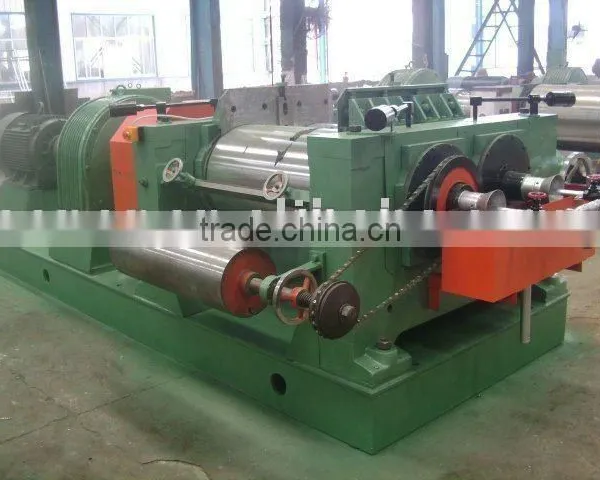

The rubber refining machine is mainly used for refining of reclaimed rubber and rubber sheeting.
The rollers are made of chilled cast iron with wear-resistant hard surfaces.
The two rollers are smooth ones with bored cavities and can be cooled homogeneously.
The protective device is provided to protect the main parts from damage due to overload. In case of emergency, the safety rod is pulled down and the rollers will be stopped immediately.
The refiner has three types of mounting, nylon mounting, copper mounting, bearing mounting. And the bearing mounting type is recommended. With bearing mounting, the rubber has much longer working life. There are mainly tow models of rubber refiners, XKJ-400 and XKJ-480. And XKJ-480 model is more popular.
Type | XKJ400 | XKJ480 |
Roller Diameter (mm) | 400/518 | 480/612 |
Working length of rollers (mm) | 760 | 800 |
Linear speed of front roller (m/min) | 25.00 | 24.00 |
Friction ratio of front and rear roll | 1:1.71 | 1:1.75 |
Max gap (mm) | 10 | 15 |
Capacity per batch (Kg) | 30~50 | 30~50 |
Overall dimension (mm) | 4550×2100×1850 | 5070×2800×1978 |
Weight (Kg) | 12000 | 20000 |
If there are anything questions which I can help,you can contact me, I will try my best to help you!
