Hydraulic Hose Fittings in Carbon Steel 20741

Hydraulic Hose Fittings in Carbon Steel 20741 photo-1
Hydraulic Hose Fittings in Carbon Steel 20741 photo-2
Hydraulic Hose Fittings in Carbon Steel 20741 photo-3
Hydraulic Hose Fittings in Carbon Steel 20741 photo-4
Hydraulic Hose Fittings in Carbon Steel 20741 photo-5
Hydraulic Hose Fittings in Carbon Steel 20741 photo-6
US$ 0.45 - 13.2 MOQ: 500 Pieces
Key Specifications
Get Latest Price
Material:
Other, Carbon Steel, Carbon Steel 45#
Technics:
Forged
Type:
Other, Coupling, Hydraulic hose fittings
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Material Other, Carbon Steel, Carbon Steel 45#
Technics Forged
Type Other, Coupling, Hydraulic hose fittings
Place of Origin Zhejiang, China
Model Number 20741
Brand Name PASSION
Connection Female
Shape Equal
Head Code Hexagon
Hydraulic Hose Fittings in Carbon Steel 20741

Product Name: 45° METRIC FEMALE 74°CONE SEAT SEAL (20741)
Product Type:20741
Product Explain:


E

HOSE BORE

 DIMENSIONS

PART NO.

THREAD E

DN

DASH

C

S

H

20741-14-04

M14X1.5

6

04

9

19

18.4

20741-16-05

M16X1.5

8

05

10

22

20

20741-18-06

M18X1.5

10

06

10

24

21.4

20741-22-08

M22X1.5

12

08

11

27

24

20741-27-10

M27X1.5

16

10

11

32

26.4

20741-30-12

M30X1.5

20

12

11

36

30

Note: 1.For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is 20742-xx-xx;





Details

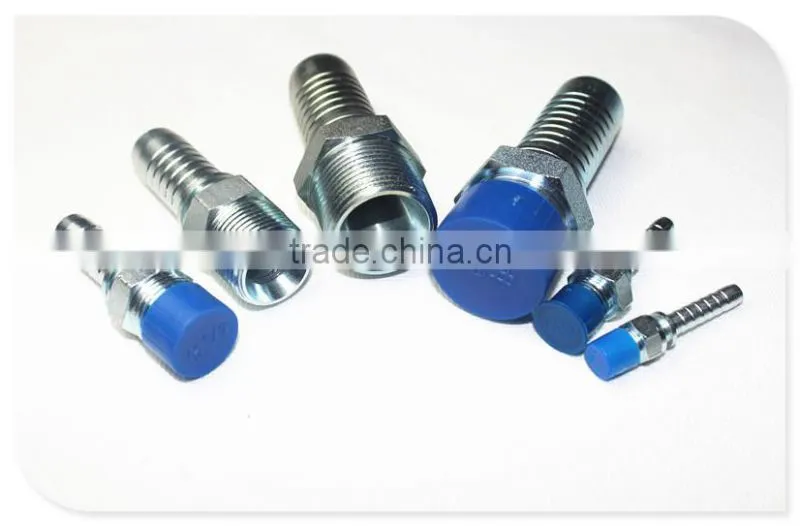

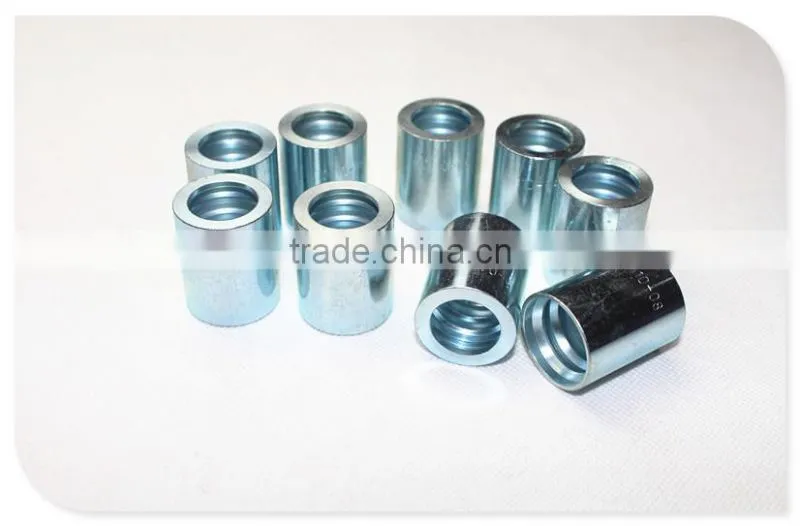

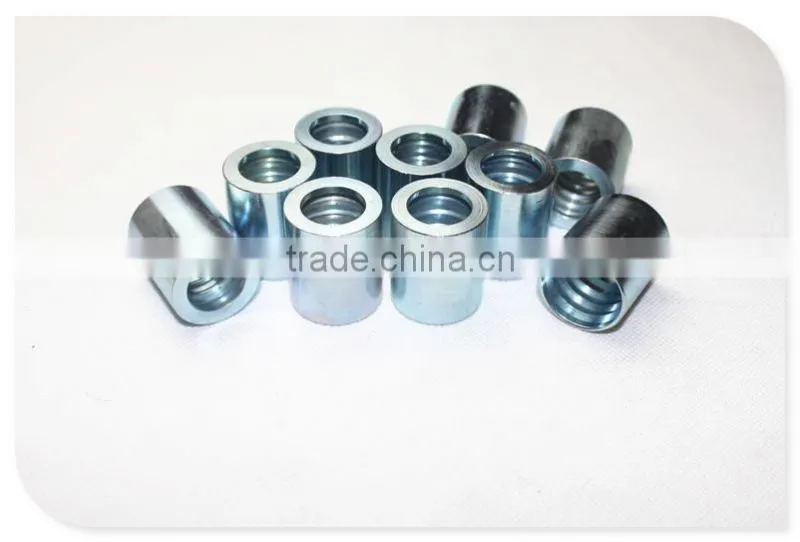

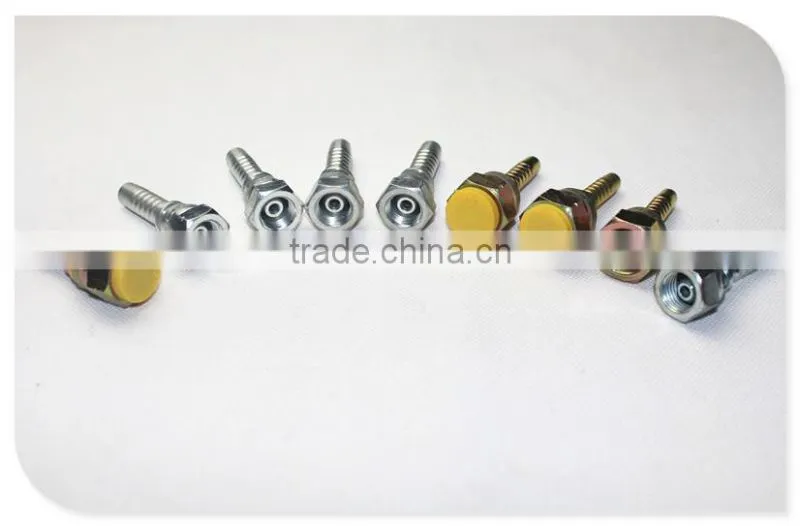

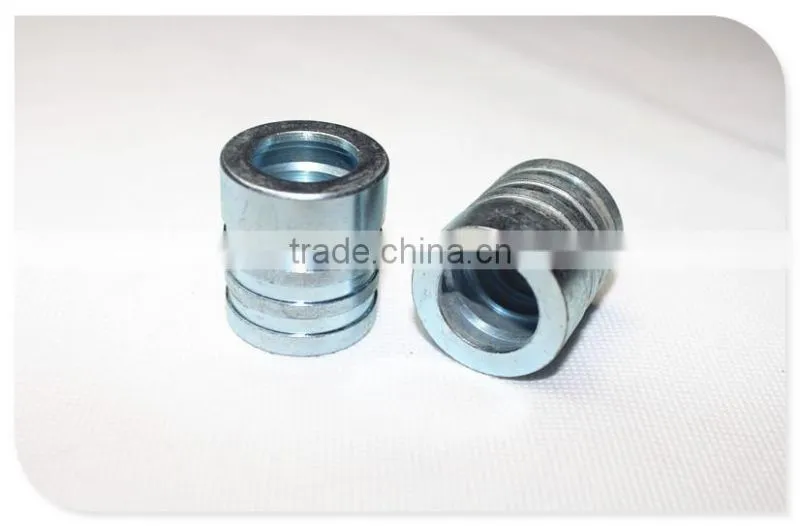

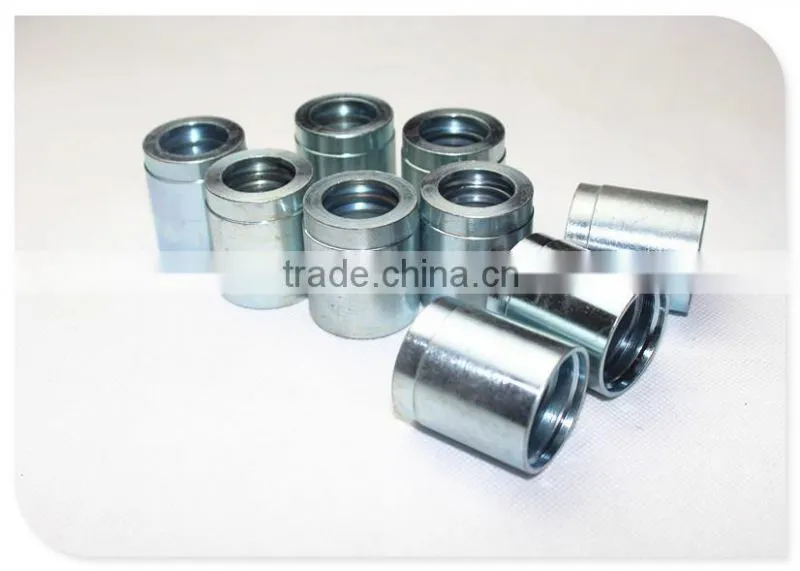

HYDRAULIC HOSE FERRULE, HYDRAUILIC HOSE FITING AND HYDRAULIC HOSE ASSEMBLY

 00110

Hydraulic Hose Fittings in Carbon Steel 20741

00210

Hydraulic Hose Fittings in Carbon Steel 20741

00920

Hydraulic Hose Fittings in Carbon Steel 20741

03310

Hydraulic Hose Fittings in Carbon Steel 20741

NPT 15611

Hydraulic Hose Fittings in Carbon Steel 20741

BSP 22611

Hydraulic Hose Fittings in Carbon Steel 20741

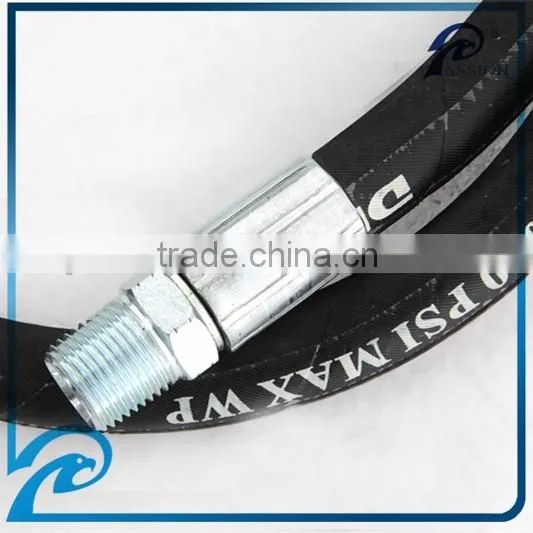

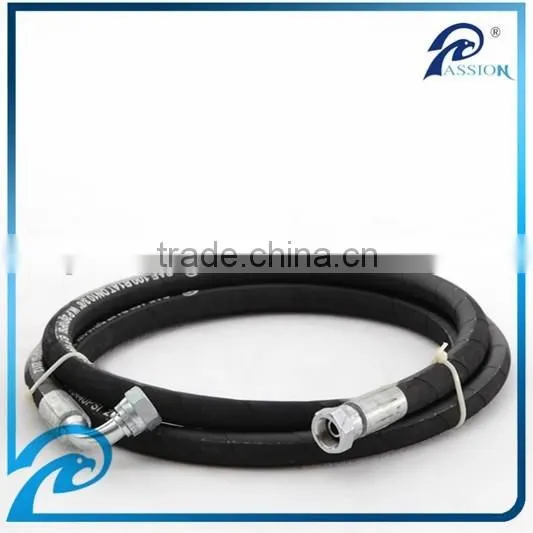

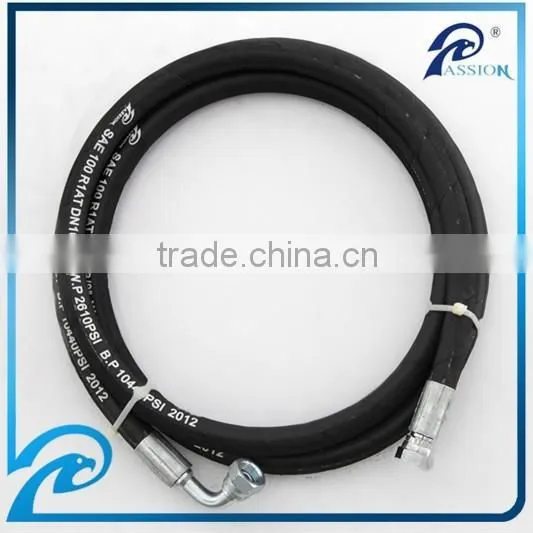

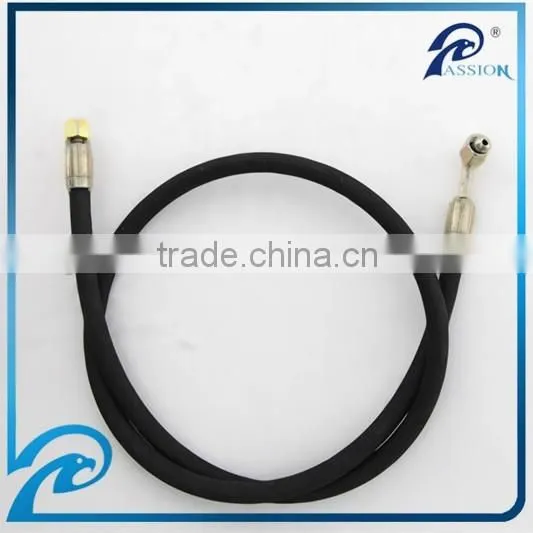

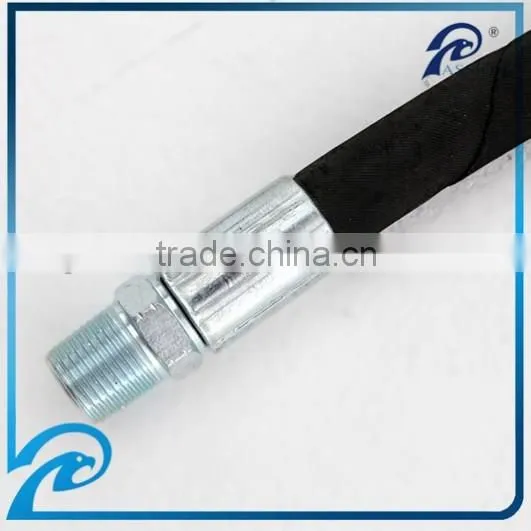

HYDRAULIC HOSE ASSEMBLY

Hydraulic Hose Fittings in Carbon Steel 20741Hydraulic Hose Fittings in Carbon Steel 20741





Packaging & Shipping

Hydraulic Hose Fittings in Carbon Steel 20741



Application

Hydraulic Hose Fittings in Carbon Steel 20741



Certificate



Hydraulic Hose Fittings in Carbon Steel 20741



FAQ

Q: Is it stainless steel fitting?

A: It is made of carbon steel, if you need stainless steel one, we also can produce it for you.



Q: Can you print model and our brand on the ferrule and fitting?

A: We can print model and your brand on the ferrule, but there is no enough space to print them on the fitting, just logo is ok.



Q: Can you produce fitting according to sample or drawings?

A: Yes, we can produce fitting according to your sample or drawings.



Q: Can you galvanize zinc in gold color?

A: Yes, it can be made in gold color, anyway, we suggest galvanizing it in white, it is enviroment-friendly.
