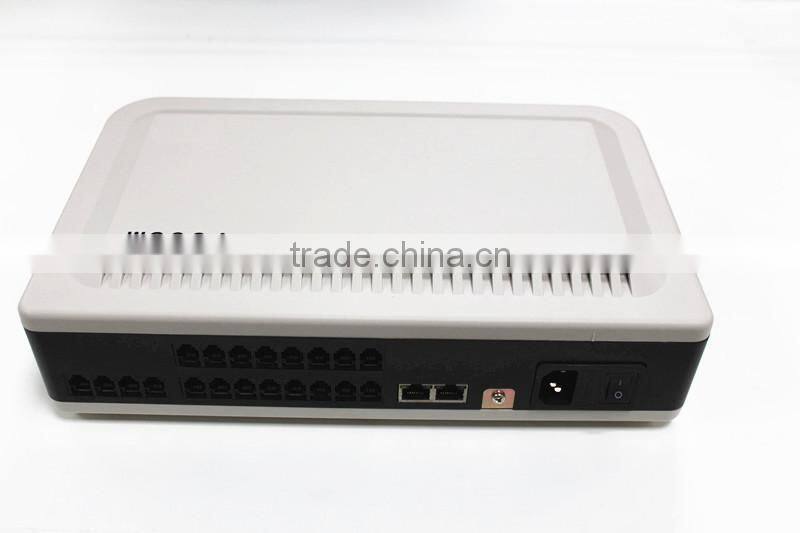

Model:WS824(3)i IP PBX
System TFTP upgrade
Data backup and restore
WEB remote interface management
Multiple voice codec format
50 IP extension Account
4 TDM-IP concurrent access
20 IP platform concurrent calls
IP voice calls bypass
IP extension account, IP trunking support SIP Type
Flexible networking
DID number across the equipment through the call
Resonance
IP call extension account level limite
Relay equipment sharing
Pass through the number
General IP phone support
Open standard interface protocols
High system integration
Specification Parameter
Model | WS824(3)i | WS824(9)i |
Size | 330*290*80mm | 430*240*124mm |
FXO | 16 | 88 |
FXS(PSTN) | 4 | 10 |
Number of IP user | 50 | 100 |
Number of IP concurrent | 40 | 40 |
Concurrent IP and TDM channel | 4 | 4 |
Number of SIP trunk | 4 | 4 |
LANPort | 1 | 1 |
SIP Protocol | YES | YES |
Technical Specification
Model | WS824(3)i | WS824(9)i |
AC input | 110VAC/220VA±10%/50Hz-60Hz | 110VAC/220VA±10%/50Hz-60Hz |
Internal feeding voltage | +48VDC/30mA | +30VDC/25mA |
Internal ringing voltage | 75VAC/50Hz | 75VAC/50Hz or 75VAC/25Hz(install P02 board) |
Backup battery voltage | NO | 24V/76Ah (install P02 board) |
Exts line port voltage | <60VDC | <60VDC |
Co lines port ringing voltage | >35VAC/25Hz or >35VAC/50Hz | >32VAC/25Hz or >35VAC/50Hz |
System power voltage | 25W | 60W |
Line impedance | 600Ω | 600Ω |
Input level | 250MV, max 1V RMS | 250MV, max 1V RMS |
Exchange mode | TDM+IP | TDM-IP |
Enviroment temperature | 0-45℃(32-113℉),25±5°Best | 0-45℃(32-113℉),25±5°Best |
Enviroment humidity | 10%-95% noncondensing | 10%-95% noncondensing |
Exts lines with Caller ID display |
DTMF |
FSK |
Co lines with Caller ID display | DTMF | DTMF/FSK |
Detection sensitivity | 01-33db(nosie<-3-db) | 01-33db(nosie<-3-db) |
Exts failure time effectively | 80ms-800ms | 80ms-800ms |
Dial tone | ||
Busy tone | Single frequency 440Hz&480Hz,0.5s open,0.5s break, Cycle 1 s | |
Invalid sound | Single frequency 440Hz,0.25s open,0.25s break, Cycle 0.5s | |
Ring-back tone | Single frequency 440Hz,1s open,4s break, Cycle 5s | |
4 core key phone | <100m(0.4@ twisted two pair,impedance<22.5Ω
| |
2 core key phone | <1500m(0.5@ twisted two pair,impedance<200Ω
| |
Common phone | <1000m(0.4@ twisted two pair,impedance<225Ω
|
Billing wires | <30M |

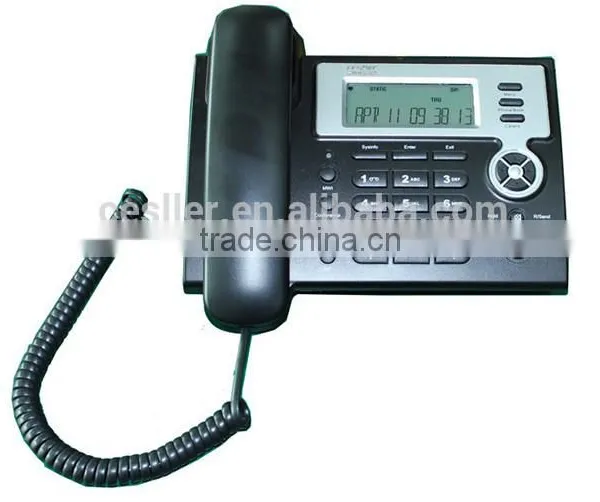

SIP Phone

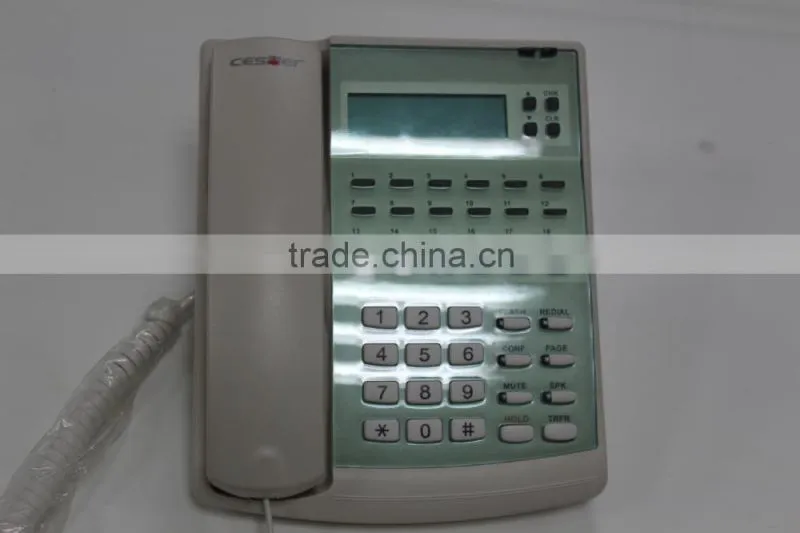

Special Key Phone

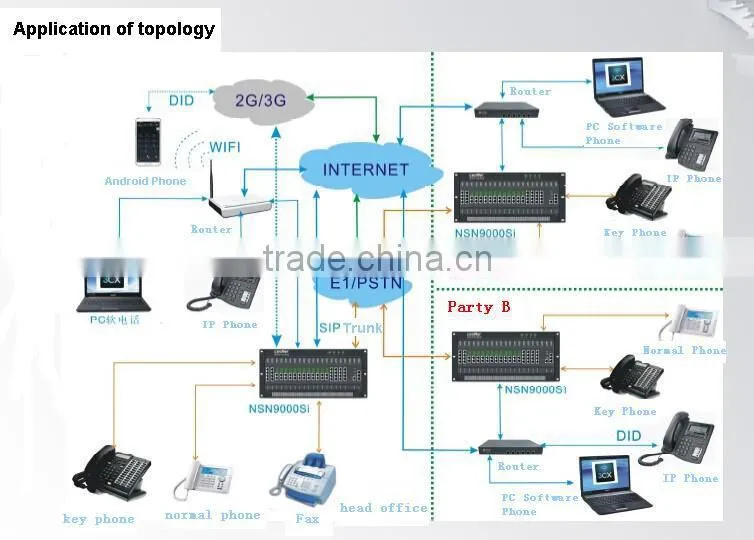

Application as follow show
Shenzhen Guowei Cesller Technology Co.,Ltd,our headquarter lies in Canada. It is a hi-tech. Company, specializing in manufacturing, developing, selling of group-phone system and communication equipments. The managing idea is to provide continually communication products which joint global communication and synchronize to world communication.
Shipping to worldwide by DHL, FEDEX, TNT and UPS etc.
