Help CenterBroadcast Cable 5765
Related Products
-
Broadcast Cable 5565US$ 0.1 - 1MOQ: 5000 Meters -
ISO9001CERoHSETL Approved Coaxial Cable Qr540 For CCAV SystemUS$ 0.01 - 1MOQ: 5000 Meters
-
2015 Hottest Selling High Quality 75ohm Factory Price QR540US$ 0.1 - 1MOQ: 5000 Meters
-
75ohm QR540 With Messager CableUS$ 0.1 - 1MOQ: 5000 Meters
-
Coaxial Cable RG59 RG6 RG11 QR540 In VietNam Market For BiddingUS$ 0.1 - 1MOQ: 5000 Meters

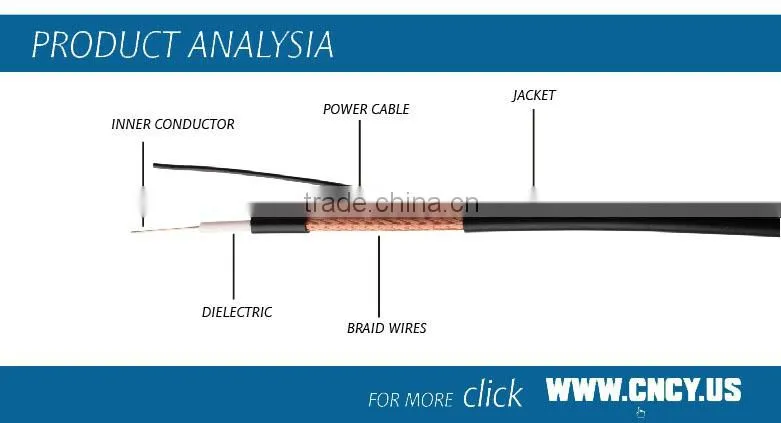

Construction & Basic Characteristics
1) Construction | ||
Center Conductor: |
1.02±0.01mm CU |
|
Dielectric: |
4.57±0.1mmFoam PE |
|
Shield: |
Al Foil |
|
Braid Coverage: |
35%-90% TC |
|
Jacket: |
6.9±0.1mm PVC |
|
Jelly/APD |
Per Customer’ Special Requirement |
|
2) Characteristics | ||
Sparker Test: |
4000VAC |
|
Impedance: |
75±3 Ohm |
|
Capacitance: |
55±3pF/m |
|
Velocity of Propagation: |
82% |
|
Return Loss: |
20dB min (50-300MHz) |
|
|
20dB min (300-1000MHz) |
|
Attenuation |
[@68o F. (20o C.)] |
|
Frequency (MHz) |
Maximum (dB/100 ft.) |
Maximum (dB/100 m) |
3.6 |
0.45 |
1.48 |
10 |
0.72 |
2.36 |
71.5 |
1.70 |
5.58 |
135 |
2.25 |
7.38 |
270 |
3.10 |
10.17 |
360 |
3.65 |
11.97 |
720 |
5.30 |
17.38 |
1000 |
6.20 |
20.33 |
Length: 100m/200m/305m/500m, according to your requirements;
Packing: coil/ paper reel/plastic reel/wooden durm, ect.
1.OEM Available
2.ISO9001/CE/RoHS Approved
3.Good quality with best service
4.Free Sample
5.Fast delivery
