2015 Hottest Selling High Quality 75ohm Factory Price QR540

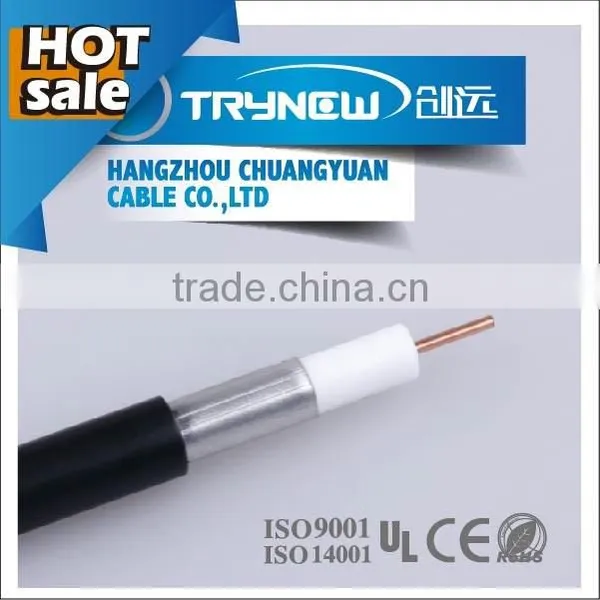

Name: 2015 Hottest Selling High Quality 75ohm Factory Price QR540
Brand: CHUANGYUAN/OEM
Availability: InStock

FOB Price

US$ 0.1 - 1 / Meter

5000 Meters(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

2016 CCTV CATV hot salel best price 75ohm coaxial cable qr540 with messenger

1) Construction
Center Conductor:	3.15±0.01mm CU/CCA
Dielectric:	13.03±0.1mmFoam PE
Out Conductor:	13.72mm Al tube
Jacket:	15.49±0.1mm PE
Jelly/APD	Per Customer’ Special Requirement
2) Characteristics
Sparker Test:	4000VAC
Impedance:	75±3 Ohm
Capacitance:	50±3pF/m
Velocity of Propagation:	88%
Return Loss:	20dB min (30-470MHz)
	20dB min (470-1000MHz)
Attenuation	[@68o F. (20o C.)]
Frequency (MHz)	Maximum (dB/100 ft.)	Maximum (dB/100 m)
5	0.14	0.46
55	0.47	1.54
250	1.03	3.38
450	1.4	4.59
550	1.56	5.12
750	1.85	6.07
865	2	6.56
1000	2.17	7.12
