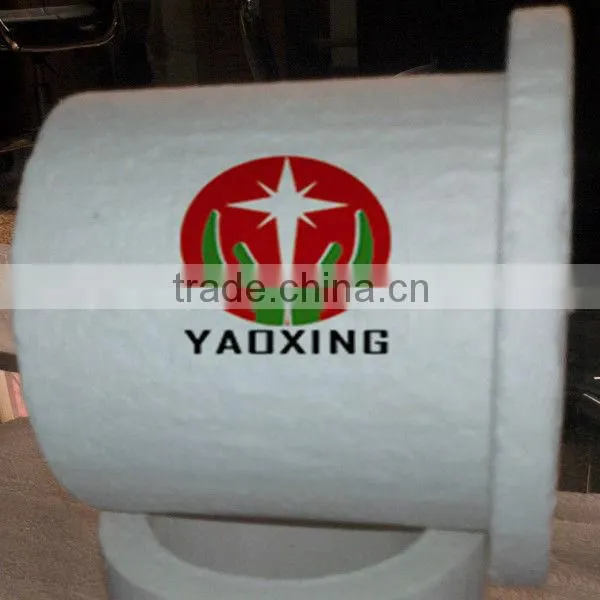

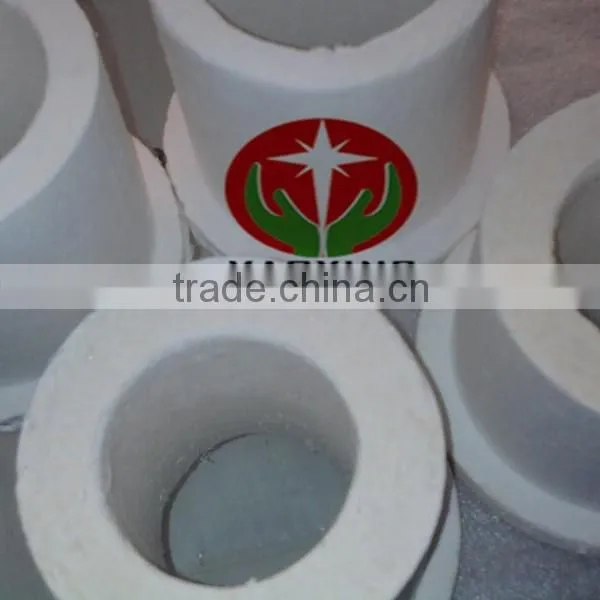

Vacuum Formed Ceramic Shapes Ceramic Fiber Paper Gasket Ceramic Fiber Shape

Vacuum Formed Ceramic Shapes Ceramic Fiber Paper Gasket Ceramic Fiber Shape thumbnail-1
Vacuum Formed Ceramic Shapes Ceramic Fiber Paper Gasket Ceramic Fiber Shape thumbnail-2
Vacuum Formed Ceramic Shapes Ceramic Fiber Paper Gasket Ceramic Fiber Shape thumbnail-3
Vacuum Formed Ceramic Shapes Ceramic Fiber Paper Gasket Ceramic Fiber Shape thumbnail-4
Vacuum Formed Ceramic Shapes Ceramic Fiber Paper Gasket Ceramic Fiber Shape thumbnail-5
Vacuum Formed Ceramic Shapes Ceramic Fiber Paper Gasket Ceramic Fiber Shape thumbnail-6
Vacuum Formed Ceramic Shapes Ceramic Fiber Paper Gasket Ceramic Fiber Shape photo-1
Vacuum Formed Ceramic Shapes Ceramic Fiber Paper Gasket Ceramic Fiber Shape photo-2
Vacuum Formed Ceramic Shapes Ceramic Fiber Paper Gasket Ceramic Fiber Shape photo-3
Vacuum Formed Ceramic Shapes Ceramic Fiber Paper Gasket Ceramic Fiber Shape photo-4
Vacuum Formed Ceramic Shapes Ceramic Fiber Paper Gasket Ceramic Fiber Shape photo-5
Vacuum Formed Ceramic Shapes Ceramic Fiber Paper Gasket Ceramic Fiber Shape photo-6
Negotiable MOQ: 1000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Application:
Heat Insulation, Fireproof Material
Grade:
HP (High Pure)
Contact Supplier Request Quote Chat Now
Zibo Yao Xing Fire-Resistant And Heat-Preservation Material Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Grade HP (High Pure)
Chemical Composition AL2O3≥45%
Working Temperature 1100℃
Fiber Diameter 3μm
Thermal Conductivity <3%
Shrinkage (1800℉, 3h) 0.050-0.065
Brand Name YAOXING
Model Number YXTX-255







Product Description







Technical Index:





Classification Temperature

1260

1400

1400

Code

YXTX-255

YXTX-455

YXTX-555

YXTX-755

Shrinkage on Heating

(%)

1000°C×24h

≤-3

1200°C×24h

≤-3

1350°C×24h

≤-3

1000°CX24h

≤-3

Theoretical

Thermal

Conductivity

(W/m·k)



(200°Caverage)

(400°Caverage)

(600°Caverage)



0.055-0.065

0.110-0.120

0.160-0.170

0.060-0.070

0.105-0.125

0.170-0.180

Density(kg/m3)

300-500

Specification

According to your requirements

Packing

Wooden Boxes or Cartons





Applications

1.Peep holes for the industrial furnace

2.Patch holes for thermometer

3.Nozzle and door sealing for the industrial furnace

4. Non-ferrous metal molten channel

5.Lining for pad,cap,of found,electrical equipment connect gaskets





Application:

Electric equipment:



1.Thermal and electric insulation material for electric heating device

2.Thermal resistance for sealing washer, insulation gaskets



Automotive industry:



1.Sound absorber

2.Thermal insulation

3.Sound absorption function for auto exhaust pipe, heat shield.



Furnace construction:



1.Insulation, high-temperature material for industrial furnaces, ladles and submerged nozzle.

2.Asbestos backup.

3.Expansion joint sealing and filling insulation (vehicle, pipeline, door and so on)

4.The ceramic fiber lining for high temperature furnaces or heating equipment

5.Inspecting hole in industry furnace, expansion joint

6.Furnace door the burner set pieces and inserting hole of thermometer

vacuum formed ceramic shapes ceramic fiber paper gasket ceramic fiber shapevacuum formed ceramic shapes ceramic fiber paper gasket ceramic fiber shape
