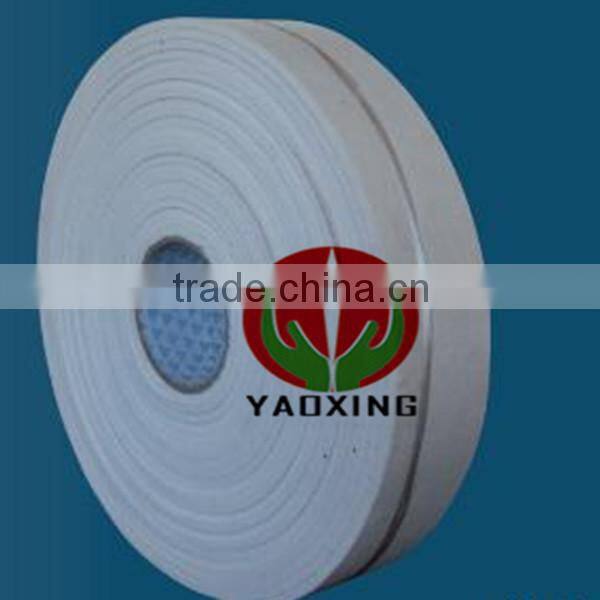

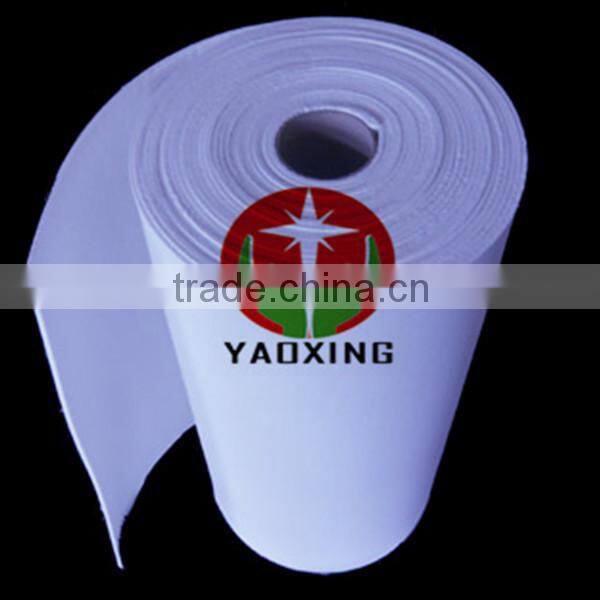

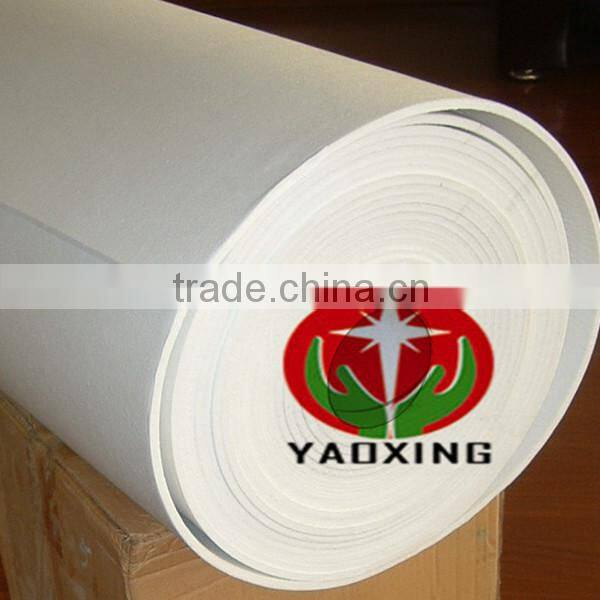

fireproof/refractory ceramic fiber paper
Characteristic
1.Low Heat Storage
2.Low Thermal Conductivity
3.Excellent Thermal Electrical Insulation
4.Excellent Machine-processed Capability
5.Excellent Broken Resistance
6.Excellent Flexibility
7.Low Shot Content
Technical Index
|
Classification Temperature |
1260 |
1400 |
Code |
YXTX-236 |
YXTX-336 |
|
Shrinkage on Heating (%) |
1000°C×24h≤-3 |
1350°C×24h≤-3 |
|
Theoretical Thermal Conductivity (W/m·k) |
0.075-0.085(200°Caverage) 0.115-0.121(400°Caverage) 0.165-0.175(600°Caverage) |
|
|
Theoretical Density (kg/m3) |
200±15 |
200±15 |
|
Specification (mm) |
100000/12000×610/1220×0.5/7, According to your requirements |
|
|
Tensile Strength (MPa) |
≥0.04 |
|
AL2O3(%) |
45-46 |
38~47 |
ZrO2(%) |
- |
15~17 |
AL2O3+SiO2(%) |
≥97 |
— |
AL2O3+SiO2+ZrO2(%) |
— |
≥99 |
Fe2O3(%) |
≤1.0 |
≤0.2 |
K2O+Na2O(%) |
≤0.5 |
≤0.2 |

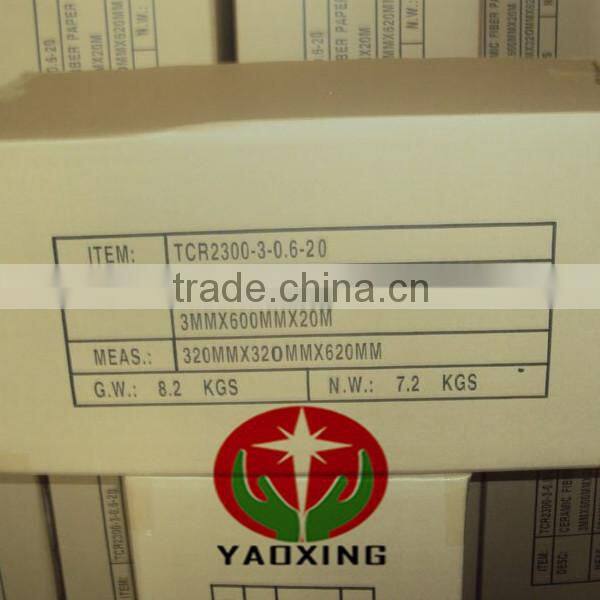

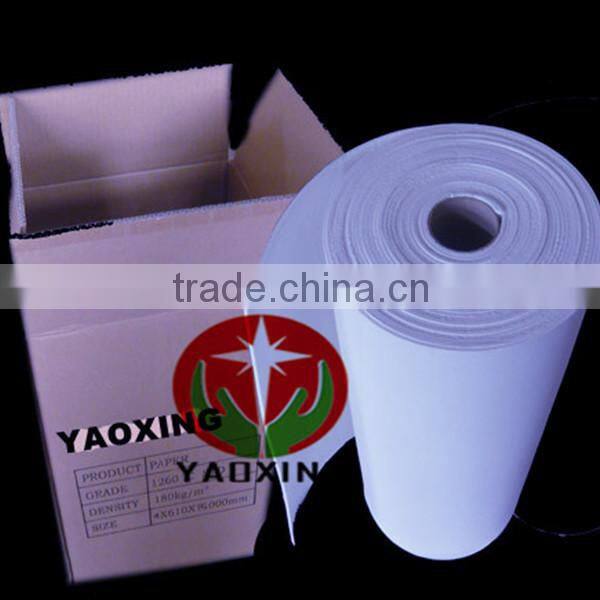

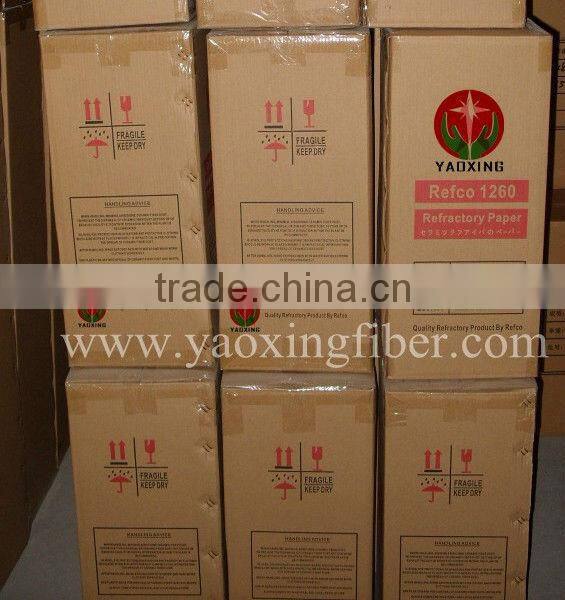

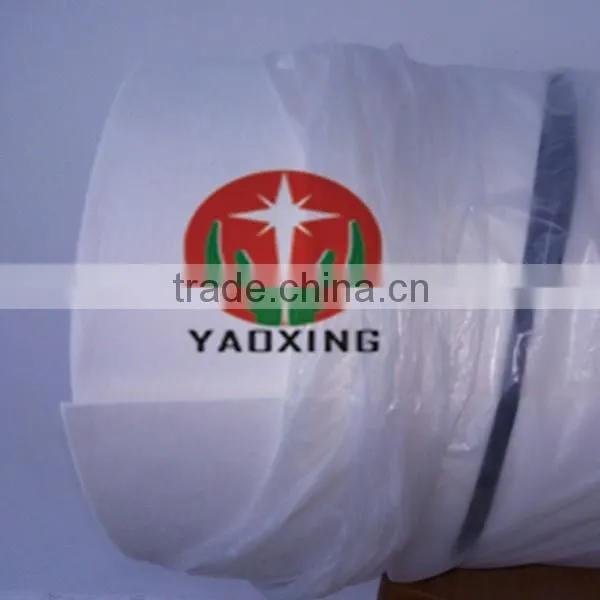

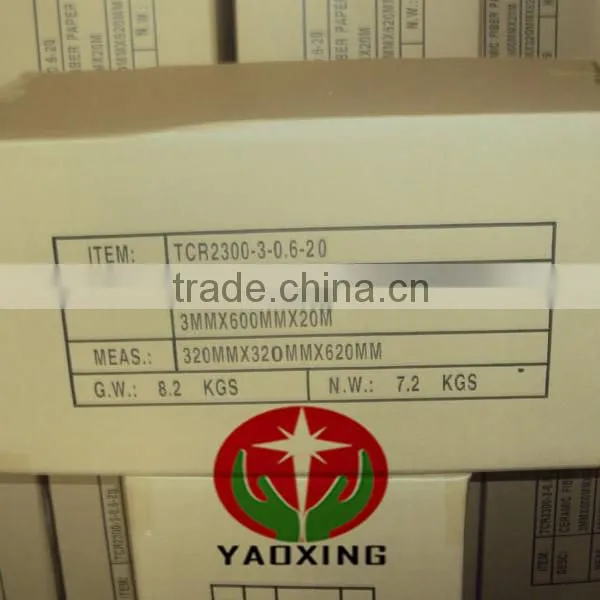

Package |
Plastic Bag Inside, Carton Box Outside |
|
Quality Control System |
ISO9001-2000, ISO14001-1996 |
|
Application:
1.Industrial insulating ,sealing and protecting materials
2.Electric and thermal insulation materials for electric industry
3.Insulation materials for instrument-equipment
4.Insulating materials for motor industry
5.Filling materials for expansion slot
6.Insulating materials as the sinter resistance
7.Sealing gasket for molten metal
8.Fireproof materials
