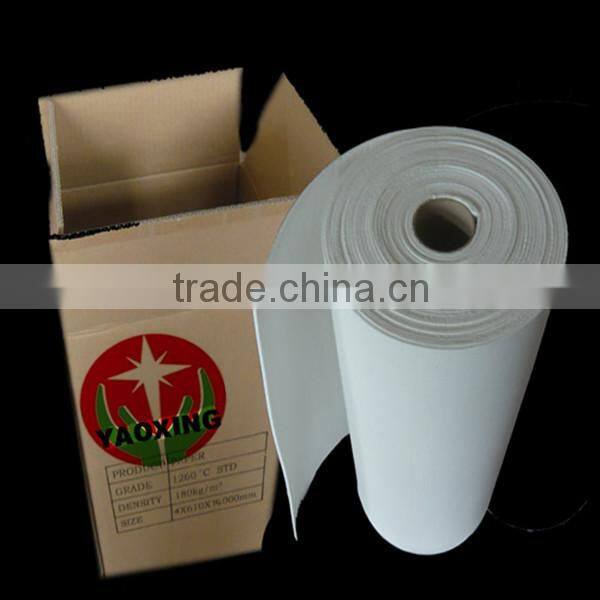

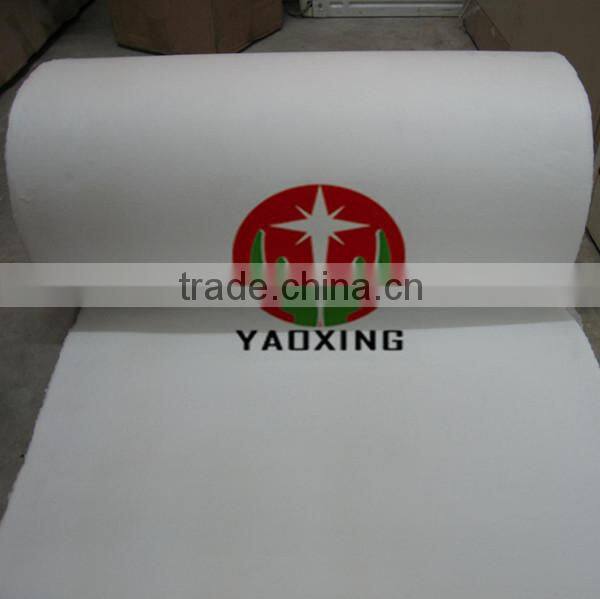

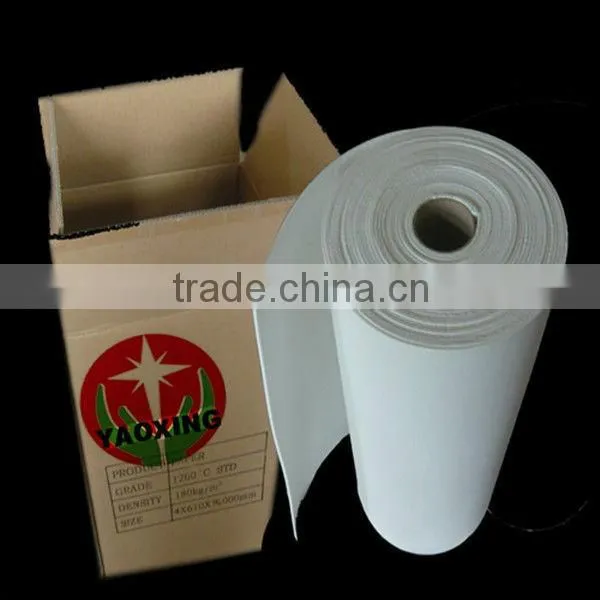

Help CenterCeramic Wool Paper for Sealing Fireproof Paper Heat Resistant Paper
Related Products
-
Heat Resistant Paper Wool Paper Ceramic Fiber PaperNegotiableMOQ: 100 Rolls -
Ceramic Fiber Paper Fireproof Paper Heat Resistant PaperNegotiableMOQ: 100 Rolls
-
Steam Pipe Insulation Ceramic Fiber Paper Ceramic Wool Paper Refractory PaperNegotiableMOQ: 100 Rolls
-
Heat Resistant Paper Flame Retardant Paper Ceramic Fibre PaperNegotiableMOQ: 100 Rolls
-
Alumina Silicate Ceramic Fiber Paper 0.5mm Thickness Ceramic Fiber Paper High Temperature Ceramic Fiber GasketNegotiableMOQ: 10 Kilograms
Product Series:
1260 Ceramic Fiber Paper YXTX-236
1400 Ceramic Fiber Paper YXTX-336
Description:
1.YAOXING Ceramic Fiber Paper is processed from the high purity fiber,
which can be used in the field of high temperature insulation.
Because we have adopted the advanced processing work,
we cannot only make the fiber interweave shapely,
but also can control the thickness and the density rigidly.
2.A spot of bonding agent has been added into the fiber during processing,
which has been chosen and controlled scientifically, can be burnt during application.
Size:
1.0.5mmX610/1220mmX90meters
2.0.7mmX610/1220mmX80meters
3.1mm X610/1220mmX60meters
4.2mm X610/1220mmX30meters
5.3mm X610/1220mmX20meters
6.4mm X610/1220mmX15meters
7.5mm X610/1220mmX12meters
Characteristic:
1.Low Heat Storage
2.Low Thermal Conductivity
3.Excellent Thermal Electrical Insulation
4.Excellent Machine-processed Capability
5.Excellent Broken Resistance
6.Excellent Flexibility
7.Low Shot Content
Application:
1.Industrial insulating ,sealing and protecting materials
2.Electric and thermal insulation materials for electric industry
3.Insulation materials for instrument-equipment
4.Insulating materials for motor industry
5.Filling materials for expansion slot
6.Insulating materials as the sinter resistance
7.Sealing gasket for molten metal
8.Fireproof materials
Technical Index:
Classification Temperature | 1260 | 1400 | |
Name | ST Ceramic Fiber Paper | HZ Ceramic Fiber Paper | |
Code | YXTX-236 | YXTX-336 | |
Shrinkage on Heating (%) | 1000°C×24h ≤-3 | 1350°C×24h≤-3 | |
Theoretical Thermal Conductivity (W/m·k) | (200°Caverage) (400°Caverage) (600°Caverage) | 0.075-0.085 0.110-0.121 0.160-0.170 | |
Organic Content (%) | ≤ 10 | ≤ 8 | |
Theoretical Density (kg/m3) | 200±15 | ||
Tensile Strength (Mpa) | ≥0.3 | ≥0.2 | |
Moisture Content(%) | ≤1 | ||
Specification (mm) | 100000/12000×610/1220×0.5/7, According to your requirements | ||

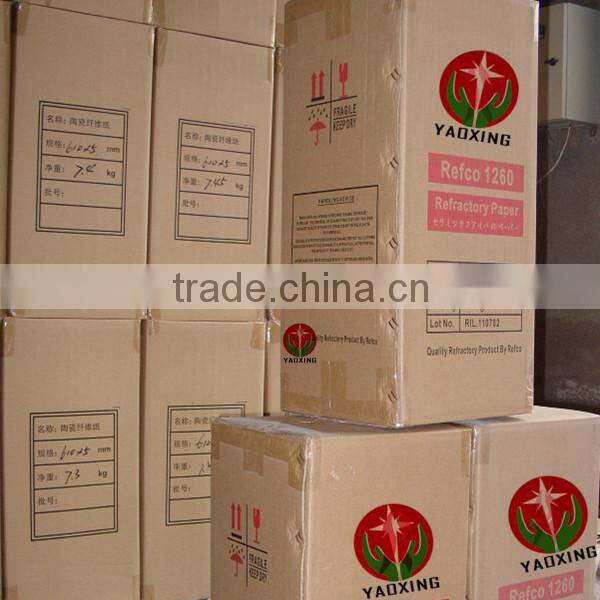

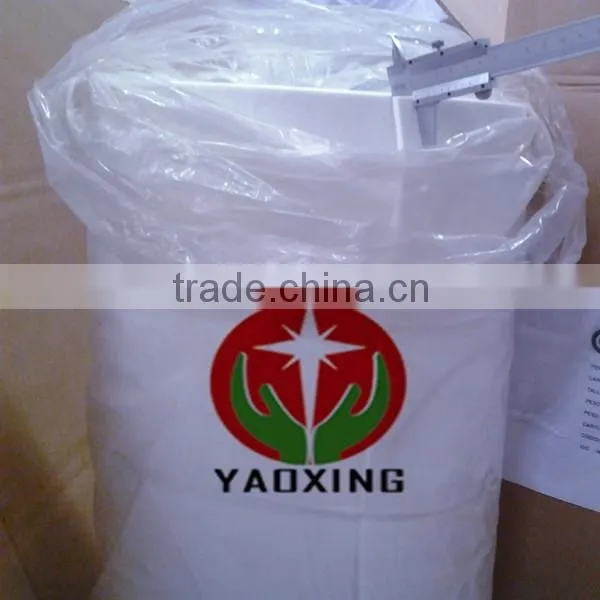

Package | Plastic Bag Inside, Carton Box Outside | ||
Quality Control System | ISO9001-2000, ISO14001-1996 | ||
