Product Series:
1260 Ceramic Fiber Paper YXTX-236
1400 Ceramic Fiber Paper YXTX-336
Description:
1.YAOXING Ceramic Fiber Paper is processed from the high purity fiber, which can
be used in the field of high temperature insulation. Because we have adopted the advanced
processing work, we cannot only make the fiber interweave shapely, but also can control the
thickness and the density rigidly.
2.A spot of bonding agent has been added into the fiber during processing, which has been
chosen and controlled scientifically, can be burnt during application.
Size:
0.5mmX610/1220mmX90meters
0.7mmX610/1220mmX80meters
1mm X610/1220mmX60meters
2mm X610/1220mmX30meters
3mm X610/1220mmX20meters
4mm X610/1220mmX15meters
5mm X610/1220mmX12meters
Characteristic:
1.Low Heat Storage
2.Low Thermal Conductivity
3.Excellent Thermal Electrical Insulation
4.Excellent Machine-processed Capability
5.Excellent Broken Resistance
6.Excellent Flexibility
7.Low Shot Content
Application:
1.Industrial insulating ,sealing and protecting materials
2.Electric and thermal insulation materials for electric industry
3.Insulation materials for instrument-equipment
4.Insulating materials for motor industry
5.Filling materials for expansion slot
6.Insulating materials as the sinter resistance
7.Sealing gasket for molten metal
8.Fireproof materials
Technical Index:
Classification Temperature | 1260 | 1400 | |
Name | ST Ceramic Fiber Paper | HZ Ceramic Fiber Paper | |
Code | YXTX-236 | YXTX-336 | |
Shrinkage on Heating (%) | 1000°C×24h ≤-3 | 1350°C×24h≤-3 | |
Theoretical Thermal Conductivity (W/m·k) | (200°Caverage) (400°Caverage) (600°Caverage) | 0.075-0.085 0.110-0.121 0.160-0.170 | |
Organic Content (%) | ≤ 10 | ≤ 8 | |
Theoretical Density (kg/m3) | 200±15 | ||
Tensile Strength (Mpa) | ≥0.3 | ≥0.2 | |
Moisture Content(%) | ≤1 | ||
Specification (mm) | 100000/12000×610/1220×0.5/7, According to your requirements | ||

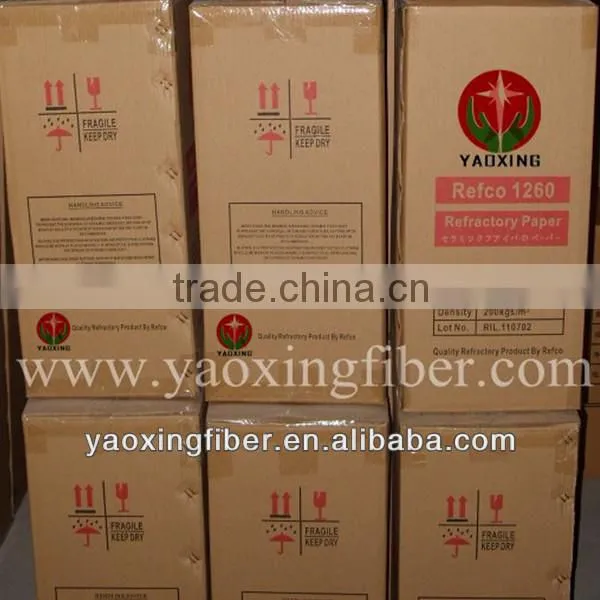

Package | Plastic Bag Inside, Carton Box Outside | ||
Quality Control System | ISO9001-2000, ISO14001-1996 | ||
Loading
Specification (MM) | Density (KG/M3) | NW/CNT (KG) | CNT Size (MM) | QTY/CNT (ROLL) | CONT Size (FOOT) | PCS/CONT (CNTS) |
5*610*12000 | 200 | 7.32 | 320*320 *620 | 1 | 20 | 441 |
3*610*20000 | 200 | 7.32 | 320*320 *620 | 1 | 40GP | 931 |
1*610*60000 | 200 | 7.32 | 320*320 *620 | 1 | 40HQ | 1064 |
